Winnie WMAG26CTUV-10

26lb Magnetic Cable Tie Manager for 0.19 Tie, Black 10-Pack

WMAG26CTUV-10

Secure and route cables with an exceptionally strong 26lb magnet to maximize space and maintain clean, controlled installs

Designed for:

• Secure, route, and organize wire, cable, cords, patch cords, and other cabling bundles
• Permanent and temporary cable management using cable ties

Use in:

• Cabinets, enclosures, network racks, and workstations
• Entertainment systems and conference rooms
• Digital signage and POS
• Utility vans, trailers, and work trucks
• I-Beams, metal framework and other metal structural elements
• Industrial machines and pumps
• Heavy equipment and agricultural machinery
• Material handling
• Assembly lines and conveyor systems
• Stages and overhead rigs
• Construction sites
• And much, much more

• Magnet Size: 23.2mm x 4.5mm
• Magnet Mounting Hole: 5mm
• Magnet Grade: N45M
• Magnet Plating: NdFeB
• Magnet Temperature Tolerance: -40°F 212°F (-40°C 100°C)
• Magnet Cup: Zinc-plated steel
• Overall Length (In.): 0.914
• Overall Width (In.): 0.914
• Overall Height (In.): 0.453
• Overall Weight (Lbs.): 0.0255

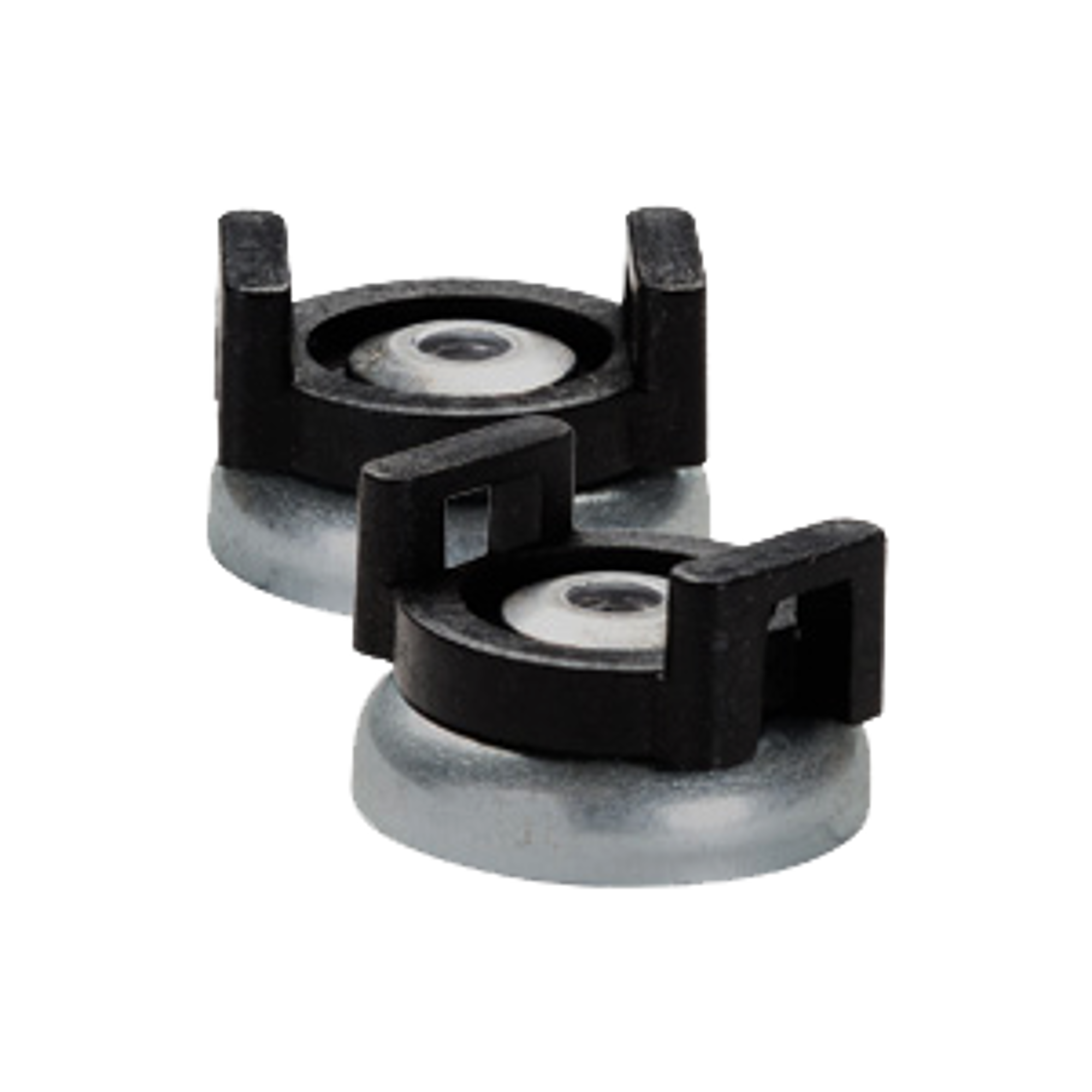

• 26lb WinnieMAG Pot Magnet with cable tie manager for secure, organized cable routing
• Exceptionally strong neodymium rare earth magnet secures firmly to vertical or horizontal ferromagnetic surfaces
• Steel cup focuses the magnetic field toward the fastening surface to increase pull force
• Vertical pull force of up to 26 lbs provides secure adhesion
• Zincplated steel cup provides durability and corrosion resistance
• Lowprofile design provides strong grip in a compact footprint
• Permanent hold yet easily repositioned to accommodate changing layouts or mounting needs
• Quick, toolfree installation saves time and labor on every setup
• No drilling or adhesives required, preventing damage to finished surfaces
• Dualslot cradle design supports and organizes cable bundles while preventing pinching or tangling
• Accepts standard cable ties up to 0.19 (4.8 mm) wide for secure fastening
• Retains magnetic strength over service life for dependable, repeatable performance
• Maintains adhesion when exposed to oil, grease, dirt, and extreme temperatures
• Magnet will not interfere with Ethernet or WiFi signals
• UVresistant black material protects against fading, brittleness, and sundriven degradation
• Plenumrated copolymer plastic mount delivers longlasting durability
• Delivers consistent performance across demanding applications and environments
• UL & CUL listed
