No more annoying dropped calls, poor call quality & slow Internet!

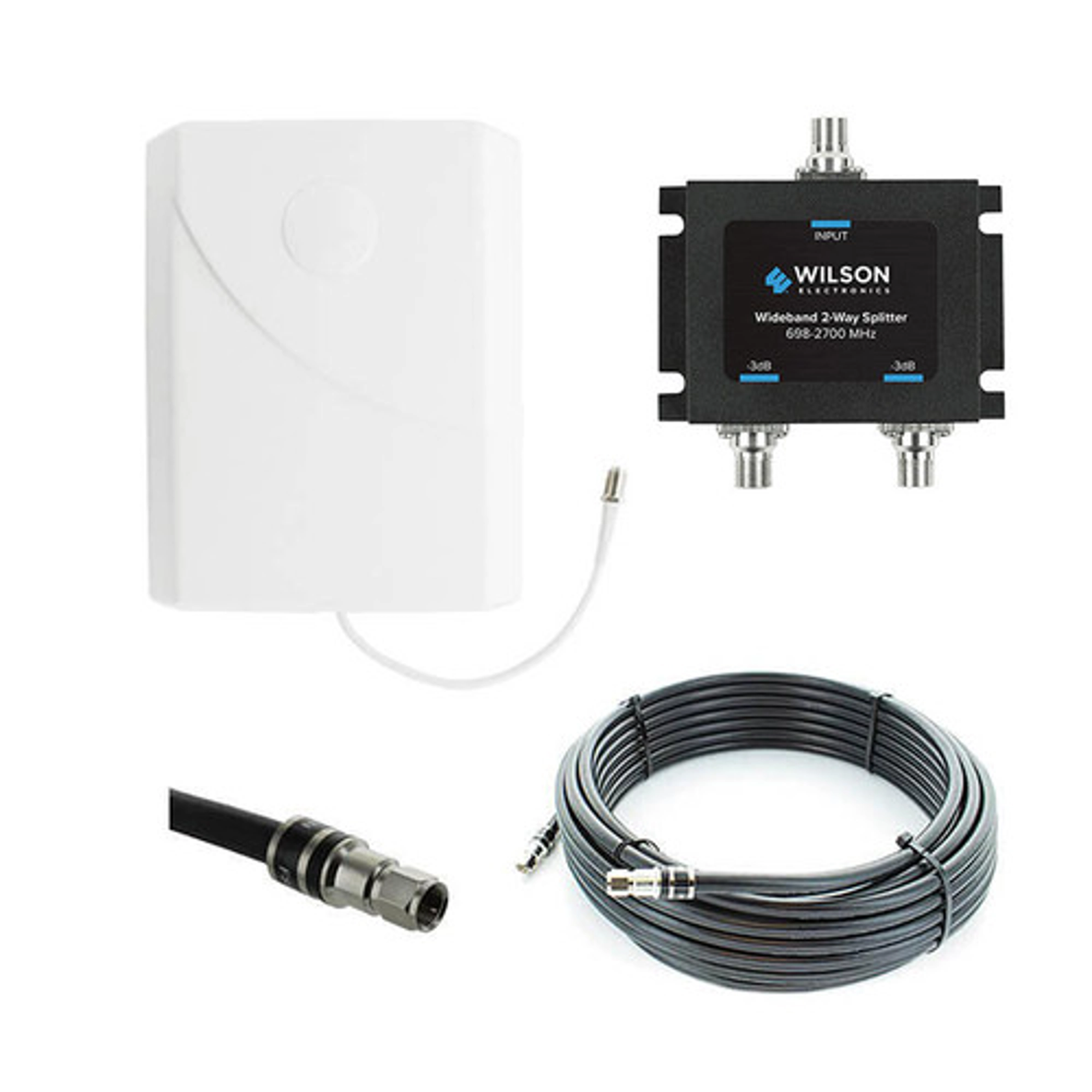

The Wilson Single Inside Panel Antenna Kit, Wall Mount from Wilson Electronics is the indoor antenna expansion kit featuring 1 Wilson inside panel antennas (#311155), 2-way splitter, and necessary cables for an indoor antenna installation.
Indoor directional 3G & 4G antennas.
Works with all 75 Ohm signal boosters.
Easy installation.
Most popular in-building antenna.
Up to +10.6 dB gain.
The Wilson Single Inside Panel Antenna Kit is a 75 Ohm indoor, wall-mount antennas used to broadcast & expand boosted 3G & 4G LTE coverage from a Wilson weBoost signal booster. It’s powerful wide-band coverage features up to +10.6 dB gain. Best for priority area coverage and corridors.
Designed for fixed building installations inside a home, office, or commercial space.
Backed by a 2-year manufacturer warranty, 24-hour US-based customer support (Texas!), 30-day better signal or money back guarantee, and lifetime technical support.
Goodbye, no-signal frustrations.
FREQUENCY 700-800 MHz: 5.2 dB;
824-894 MHz: 4.4 dB;
880-960 MHz: 4.2 dB;
1710-1880 MHz: 10.1 dB;
1850-1990 MHz: 10.6 dB;
2110-2170 MHz: 8.2 dB
RADIATION Directional
IMPEDANCE 75 Ohms
MAX POWER 50 Watts
BEAMWIDTH HORIZONTAL PLANE 70 / 60 Deg
BEAMWIDTH VERTICAL PLANE 50 / 45 Deg
CONNECTORS F-Female
DIMENSIONS 8.27 x 7.09 x 1.73 in / 21 x 18 x 4.39 cm
WEIGHT 1.32 lbs / 0.6 kg (Antenna Only)
