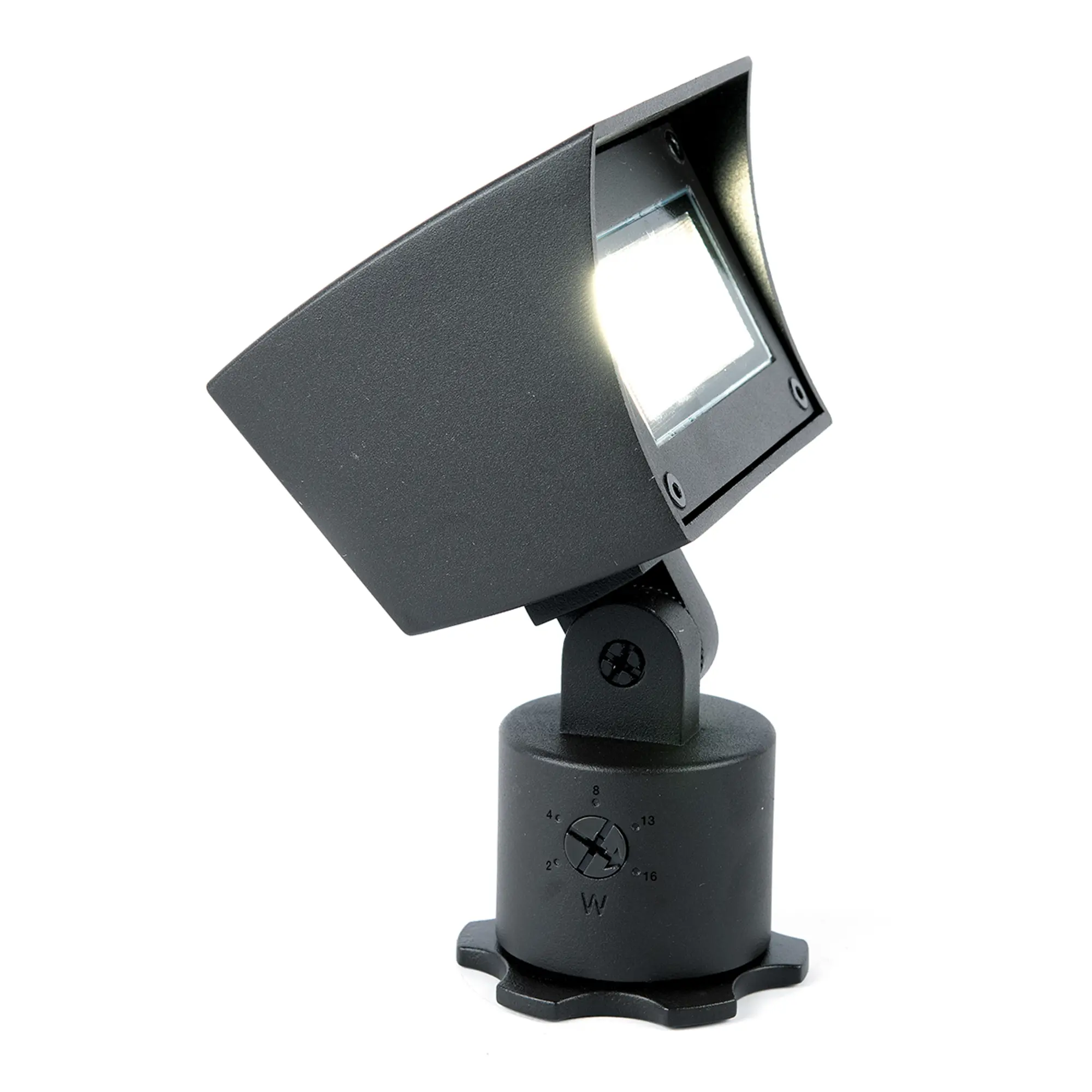

WAC 5021-30BK

12V Wall Wash Luminaire

5021-30BK 3000k, Black on Aluminum

Function meets durability with this LED 3in inground well light available in 12V or 120V and 2700K or 3000K color temperatures. A mechanical dial at the base provides smooth integral brightness control and the Mini Wall Wash (SKU 5021) includes a Second mechanical dial to toggle between 2700K and 3000K color temperatures. One sku fits most applications, eliminating the need to choose from dozens of light bulbs with varying light outputs when compared with traditional landscape lights. This wall wash is factory sealed and water tight with an IP66 rating for protection against high-pressure water jets and outdoor elements. Includes a 9in mounting spike for 12V fixtures (120V fixtures require Sku M6000-STAKE, power stake sold separately), and a 3ft lead wire with two gel filled direct burial wire nuts. Casted using a special k-alloy aluminum that is engineered to withstand the most challenging environments. Solid brass coated in bronze (-BBR finish) is available for enhanced protection against corrosive elements and is recommended for use in coastal or marine environments. A magnetic or electronic power supply is required (sold separately) for 12V fixtures. A variety of accessories are sold separately for additional mounting and glare control options.

• Delivered Lumens: 1000lm
• CCT: 2700K, 3000K
• CRI: 85
• Power: 1-18W
• Input: 9-15 VAC, 50/60Hz
• Rated Life: 70000 Hours
• Construction: Solid die-cast brass
• A uniform wide distribution wall wash from a small form factor
• Integral dimmer
• IP66 Rated, protected against high-pressure water jets
• Mounting stake, 6ft lead wire and direct burial gel-filled wire nuts included
• Maintains constant lumen output against voltage drop
• MLV dimmable with remote MLV dimmer
• Transformer required
• Can be mounted on ceiling or wall in all orientations
• IP66 Rated

• Cutsheet
