Lamp-Free and Eco-Friendly

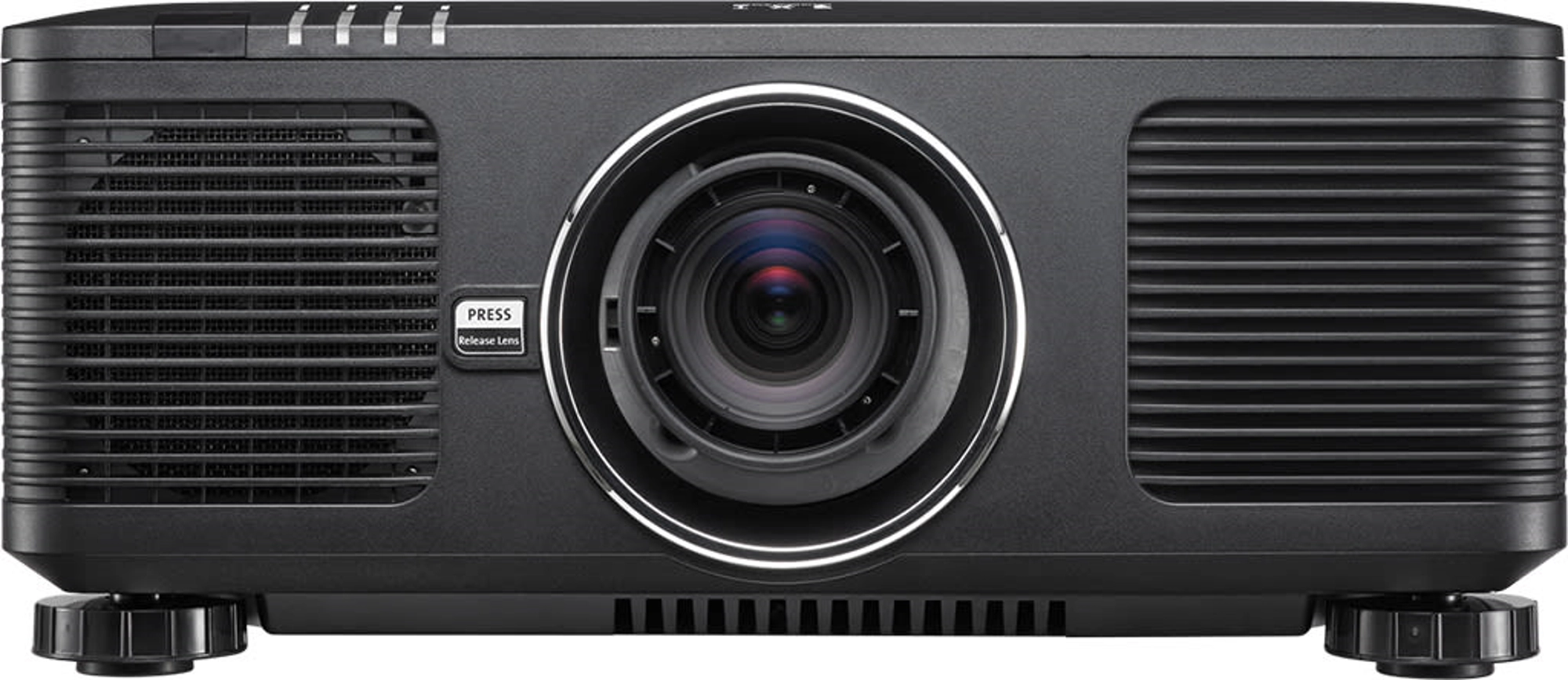

The 7,500 lumen laser projector DK8500Z offers extraordinary 4K-UHD resolution with full 8.3 million pixels for large venue applications. It is designed for easy installation with motorized interchangeable lens options and 360° degree set up flexibility. Its long lasting laser light source provides up to 20,000 hours of operation with low maintenance for the peace of mind.
DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
Native Resolution UHD (3840 x 2160) with SP on
Brightness 7500 ANSI Lumens
Contrast Ratio 10,000:1
Max. Supported Resolution UHD (3840 x 2160) @60Hz
Native Aspect Ratio 16:9
Lamp Life and Type Lamp free design. Laser light source lasts up to 20,000 hours
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.66” DMD
Throw Ratio 8 optional lenses from 0.377:1 to 5.31-8.26:1 throw ratio range
Image Size (Diagonal) depending on lens selection
Projection Distance depending on lens selection
Zoom Ratio Motorized Zoom & Focus
Lens Shift Range Vertical: +64%, -33%; Horizontal: +24%, -14%
Offset Motorized Lens Shift
Keystone Correction Vertical: +/-40°; Horizontal: +/-60°
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p, 4K-UHD)
I/O Connection Ports HDMI (x2), Display Port, RJ45 (x2: HDBaseTx1, LANx1), 12v Trigger (x2), RS-232, 3G-SDI (x2: In and Out), Remote Jack(wire remote)
Dimensions (W x D x H) 500 x 580 x 205 mm
Weight 28 kg
Noise Level 40dB (Normal Mode)
Power Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby)
Control Software PJ - Control V3.0.0.4
Standard Accessories User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Remote Control P/N: 5042221900
Warranty Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
UPC Code DK8500Z-BK: 813097023155
Key features
DLP® technology for vibrant and rich picture quality
4K-UHD resolution with 8.3M pixels to show every details
7,500 ANSI lumens of brightness, and 10,000:1 contrast ratio for clear, crisp and bright projection
Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations
3G-SDI & HDBaseT for robustness for long signal transmission
Installation flexibility is ensured with 8 optional lenses from 0.377:1 to 5.34-8.36:1 throw ratio range
Motorized and wide lens shift range allows easy placement of the projector without distorting the image
Image adjustment is made easy with 4 corner correction and keystone correction
Built-in multi-screen edge-blending and warping features
Easy projector monitor and control over network
Designed for heavy duty 24/7 operations with 360° installation angle flexibility
Lens Position Memory to facilitate set up
