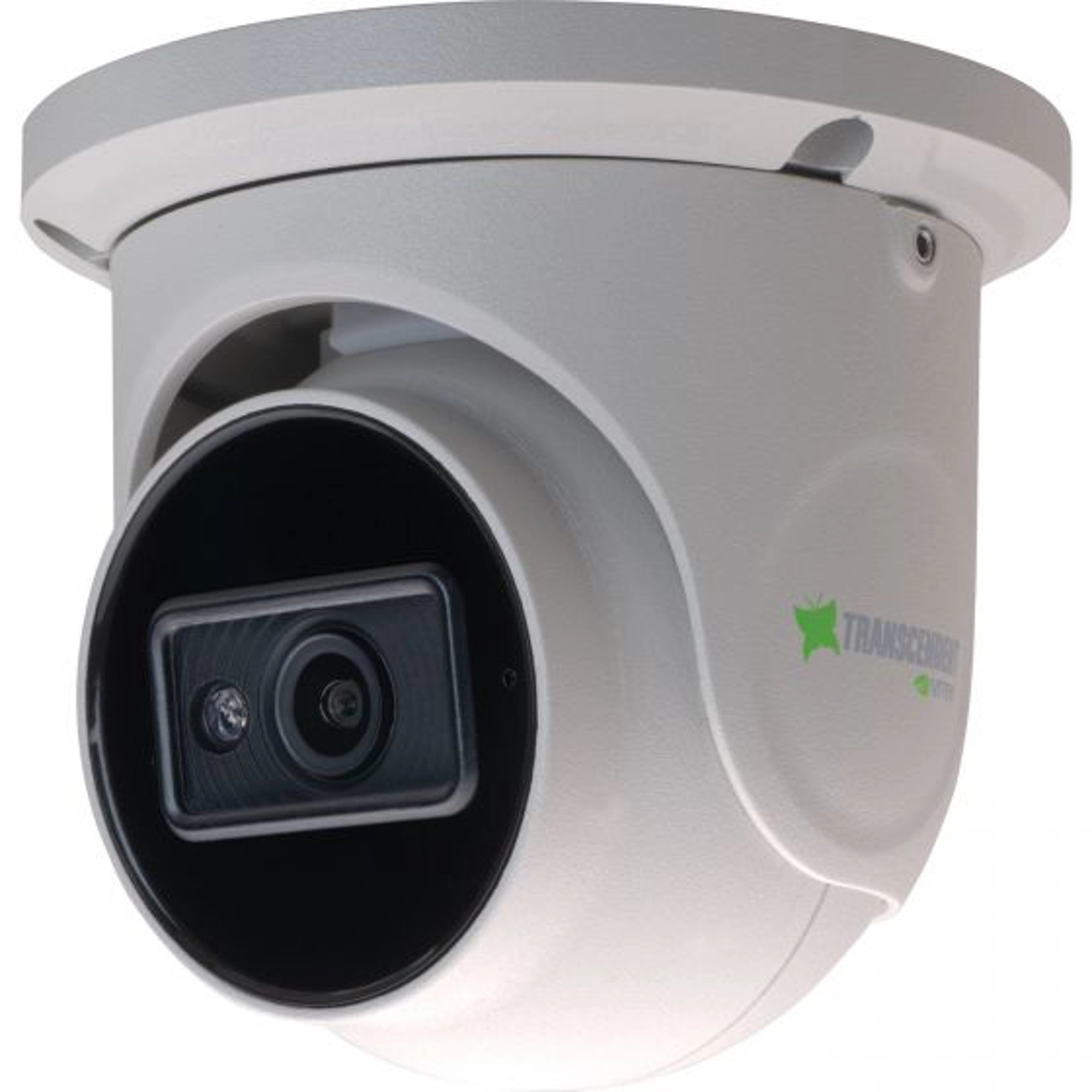

VITEK IVP VTC-TNT5RFEA-2

5 MegaPixel Fixed Lens WDR Fixed IP Turret Camera

VTC-TNT5RFEA-2

Transcendent Series High Definition 5 Megapixel NDAA Compliant IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

.

• Image Sensor 1/2.7” 5.0 Megapixel CMOS Image Sensor
• Image Size 5 MegaPixel (2880 × 1620)
• Resolution Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
• Min. Illumination 0.007 lux @F1.6, AGC ON; 0 lux with IR
• Electronic Shutter 1 s ~ 1 / 100000 s
• Lens 2.8mm Fixed Iris Lens, FoV H: 110.5°, FoV V: 57°, FoV Diag: 131°
• IR LEDs (Range) 1 Matrix Style IR (up to 100’)
• Video Compression H.265+ / H. 265 / H.264+ / H.264 / MJPEG
• Audio Compression G.711A / G.711U
• Main-Stream 5MP(1~20fps)/4MP/3MP/1080P/720P(1~30fps)
• Sub, Third Stream 720P/D1/ CIF (1~30fps), 60Hz: D1/480× 240/CIF (1~30fps)
• Bit Rate / Type 64 Kbps ~ 8 Mbps / VBR + CBR
• Wide Dynamic Range 120dB WDR
• Digital Noise Reduction 3D-DNR
• Other Features Back Light Compensation, Highlight Compensation
• NDAA Compliant Yes
• Image Setting ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR
• Analytics Region Intrusion, Abandoned Object, Scene Change, Line Crossing, Video Blur, Video Color Cast Detection
• Smart Alarm Motion Detection, SD Card Error, SD Card Full
• General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock
• Region of Interest (ROI) Each ROI to be configured separately
• Hardware Reset Yes
• Analog Video Output No
• Audio 1 Ch. Audio In + Built-in Mic*
• Local Storage Built-in Micro SD card slot up to 256GB
• Remote Viewing VMS / Web Browswer / iOS & Android Apps
• Supported Browsers Internet Explorer (IE) – Plug-in Required, Edge in IE Mode
• Connection Protocol ONVIF
• Weather Resistance IP67
• Power Input 12VDC / PoE
• Power Consumption 12VDC 300mA (LEDs Off) / 600mA (LEDs On)
• Power Consumption PoE <5.5W
• Working Environment -22°~140°F (-30°C ~ 60°C) / < 95% Humidity
• Weight Net (Shipping) 17.28oz / 1.08lb / 490g (20.81oz / 1.30lb / 590g)
• Dimensions Dia × H 3.77 × 4.25” [95.7 × 108mm]

• 1/2.7” 5.0 Megapixel Progressive Scan CMOS Image Sensor
• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
• 2.8mm Fixed Iris Lens
• Matrix IR (up to 100’ IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
•  Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Wall Mounts (VT-TWMT-3, Junction Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDM-2) Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
