VITEK IVP VT-EPH-HDA5

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: VIT-VT-EPH-HDA5

MPN: VT-EPH-HDA5

Description

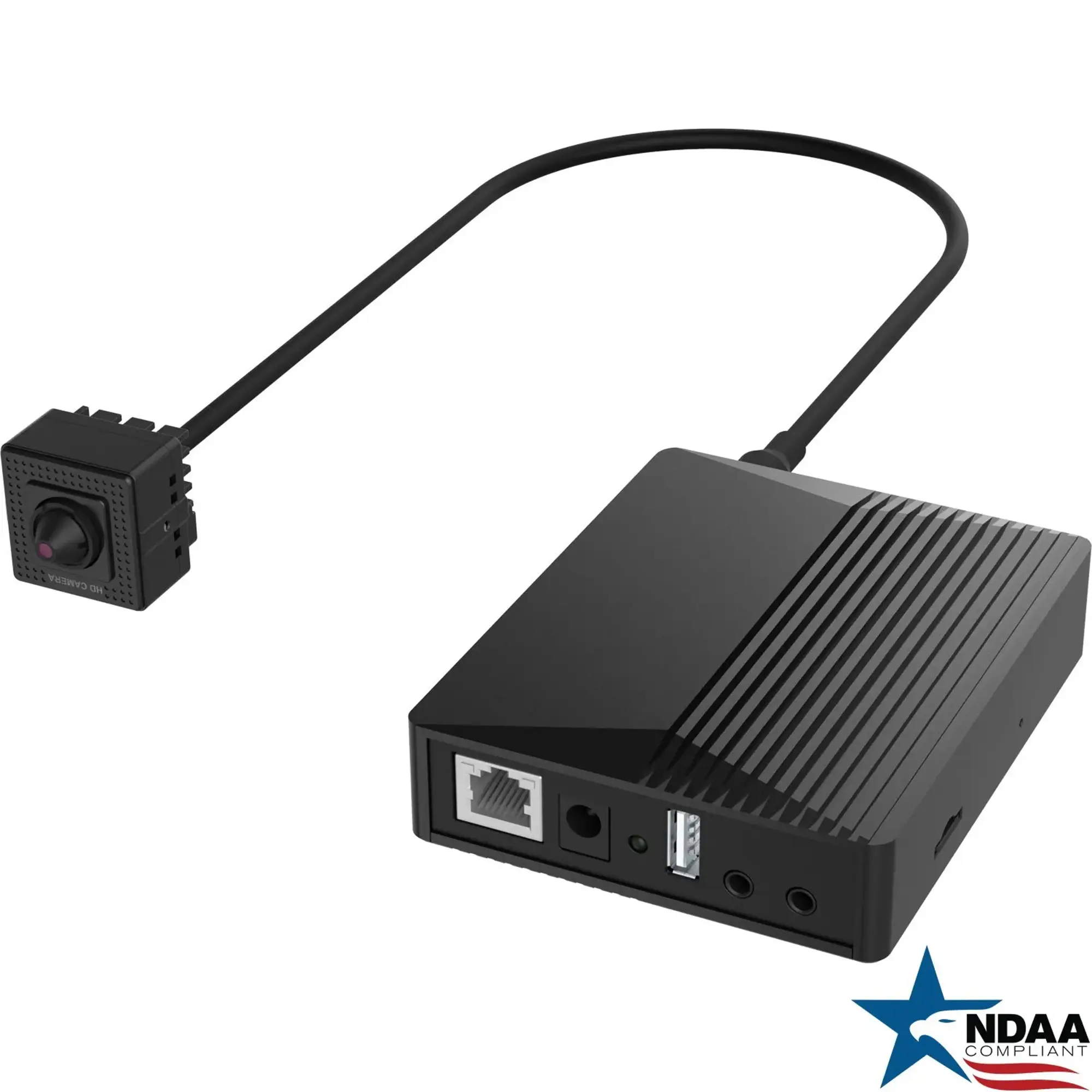

2MP IP Covert Pinhole Camera Transcendent Series with 5MP Video Encoder 2.8mm Fixed Black

Add to Wishlist

Send to a friend!

Image Sensor 1/2.8 Progressive Scan CMOS
Image Size 1920 1080
Electronic Shutter Auto / Manual
Lens Fixed [email protected], Horizontal FoV: Approx. 104°, Vertical FoV: Approx. 59°, Diagonal FoV: Approx.117°
Min.Illumination 0.05lux @ F2.2, AGC ON
WDR 120Db (Camera)
Other Features BLC, HLC, Defog
DNR 2D/3D-DNR
DORI Detect: 125ft (38m), Observe: 49ft (15m), Recognize: 26ft (8m), Identify 13ft (4m)
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Std. Baseline Profile / Main Profile / High Profile
Bit Rate (Type) 64Kbps ~ 6Mbps (VBR/CBR)
Resolution 1080P(19201080), 720P(1280720), D1, CIF, 480240
Main-Stream 60Hz: 1080P/720P/D1 (1~30fps), 50Hz: 1080P/720P/D1 (1~25fps)
Sub-Stream 60Hz: 720P/D1/CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)
Third Stream 60Hz: D1/CIF/480240 (1~30fps), 50Hz: D1/CIF/480240 (1~25fps)
Image Setting Saturation, Hue, Brightness, Contrast, WDR, Sharpness, NR, Image Mirror / Flip, Adjustable Through Client or Web Browser
Audio Compression G711A/U
Network 100M RJ45
Audio 1 CH 3.5mm Audio Input, 1CH 3.5mm Audio Output*
Two-Way Audio YES
Video 1CH BNC Video Input Connector
Storage 1 MicroSD Card Slot, up to 256GB
Alarm 8CH Alarm Input, 4CH Alarm Output
Remote Monitoring Web browser / Vitek VMS / NVR / Mobile APP
Online Connection Supports Simultaneous Monitoring of up to 8 Users, Supports Multi-stream Real Time Transmission
Network Protocol UDP, IPv4/6, DHCP, NTP, RTSP/MP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, Qos
Interface Protocol ONVIF
Smart Alarm SD Card Full, SD Card Error, IP Address Conflict, Cable Disconnection, Sensor Alarm, Motion Alarm
Intelligent Analytics Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face A.I., SceneChange, Video Blur, Abnormal Color Detection, Heat Map
Face A.I. Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
General Function Watermark, IP Address Filtering, Video Mask, Heartbeat, Illegal Login, Corridor Pattern
PoE Yes, IEEE802.3af
Power DC12V/PoE
Power Consumption < 5.5W
Environmental Protection RoHS 2.0, REACH, WEEE, Directive 94/62/EC
Environmental Conditions Working: -22° ~140°F (-30°~60°C) / < 95% Humidity, Storage: -22° ~149°F (-30°~65°C) / < 95% Humidity
Dims Camera DWH Server LWH Camera: 1.971.241.97 (31.630.431.6mm)Server: 4.273.461.10 (108.387.828mm)
Weight Camera: 1.8oz (52.4g), Server: 9.57oz (271.4g), TOTAL COMBINED Weight: 11.37oz (322.3g)

Megapixels:
2
Camera Lens Size:
2.8mm
Color:
Black
Lens Type:
Fixed
Type:
Specialty
Brand:
Vitek Industrial Video Products

Suggested Related Product: Analog HD Coax Video Encoder VT-IPE-HDA5
Pinhole 2.8mm Fixed Iris Lens Camera
1/2.8 2.0 MegaPixel Progressive Scan CMOS Image Sensor
Up to 30fps @ 2MP (1920 1080)
Included IP Video Encoder Server supports up to 5.0 MegaPixel Cameras!
H.265+ / H.265 / H.264+ / H.264 / MJPEG encoding
GEN IV Advanced Analytics: Intrusion Detection, Line Crossing, Target
Counting [All by Human / Motor Vehicle Classification], Face A.I.,
Scene Change, Video Blur, Abnormal Color Detection, Heat Map
Face A.I. (Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
Audio: 1 Channel Input, 1 Channel Output*
Alarm Interface (8-ch In/4-ch Out)
MicroSD Card Slot (256GB)
12VDC + PoE Operation
3-Year Warranty
