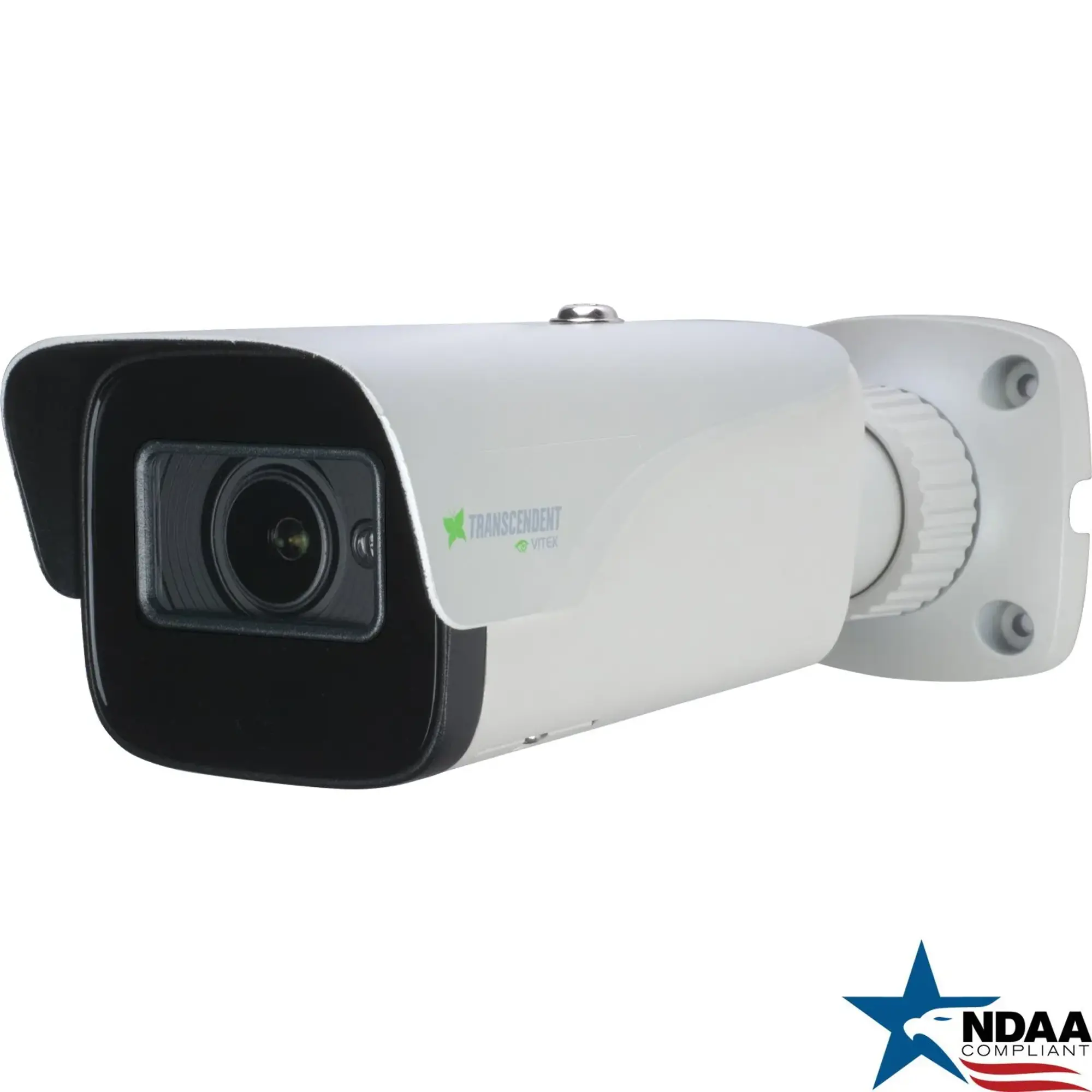

VTC-THB5RM

Transcendent 5.0 Megapixel 4-IN-1 HDA Motorized Varifocal Bullet Camera w/36 IR LEDs

Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 5.0 MegaPixel resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500.

• 1/2.7 5.0 Megapixel Progressive Scan CMOS image sensor
• NDAA Compliant
• High Def Analog (HDA): HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output
• 2.8~12mm Motorized Varifcoal Lens
• Matrix IRs with up to 165 IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• DNR Digital Noise Reduction
• IP67 Weather Resistance
• Supports Control Over COAX [CoC]
• Over 1500 HD Video Transmission (depending on cable characteristics and integrity)
• Optional Junction Box (VT-TJB08), Universal Pole Mount Adapter VT-TPLMT (reqs. VT-TJB08), Universal Corner Mount Adapter VT-TCNMT (reqs. VT-TJB08)
• 12VDC Operation
• 3 Year Warranty

 Image Sensor 1/2.7 5.0 Megapixel Progressive Scan CMOS Sensor

NDAA Compliant Yes

Signal System PAL / NTSC

Effective Pixels 2560 1936

Resolution HD-TVI & AHD: 5MP / CVI: 4MP / CVBS: 960H

Video Output HD-TVI / AHD / CVI / CVBS (Selectable)

Frame Rate 5MP@20fps, 4MP@30fps

Lens 2.8~12mm Motorized Varifocal Lens

Day/Night True Day / Night by ICR

Min. IIIumination Color: 0.01 [email protected], AGC ON / B/W: 0 lux (with IR ON)

IR LEDs 2 Matrix IRs

IR Distance Up to 165

S/N Ratio ≥52dB (AGC Off)

Wide Dynamic Range D-WDR

Other Features AGC, Mirror, Sharpness, Smart IR, Image Setting, Defect Correction

Digital Noise Reduction Digital DNR

White Balance Auto (AWB)

Compensation Backlight, Lens Shading, Highlight

Control over COAX (COC) YES

Transmission Distance Up to 1500 (Depending on cable characteristics & integrity)

Power Input 12VDC

Power Consumption (12VDC) IR Off: 100mA / IR On: 500mA (<1W / <6W)

Weather Resistance IP67

Operation Conditions -22° F~140° F / < 95% Humidity

Weight Net (Shipping) 24.00oz / 1.50 lbs. / 680g (29.63 / 1.85lb / 840g)

Dimensions L W H 8.68 3.15 2.78 (220.5 80.1 70.5mm)
