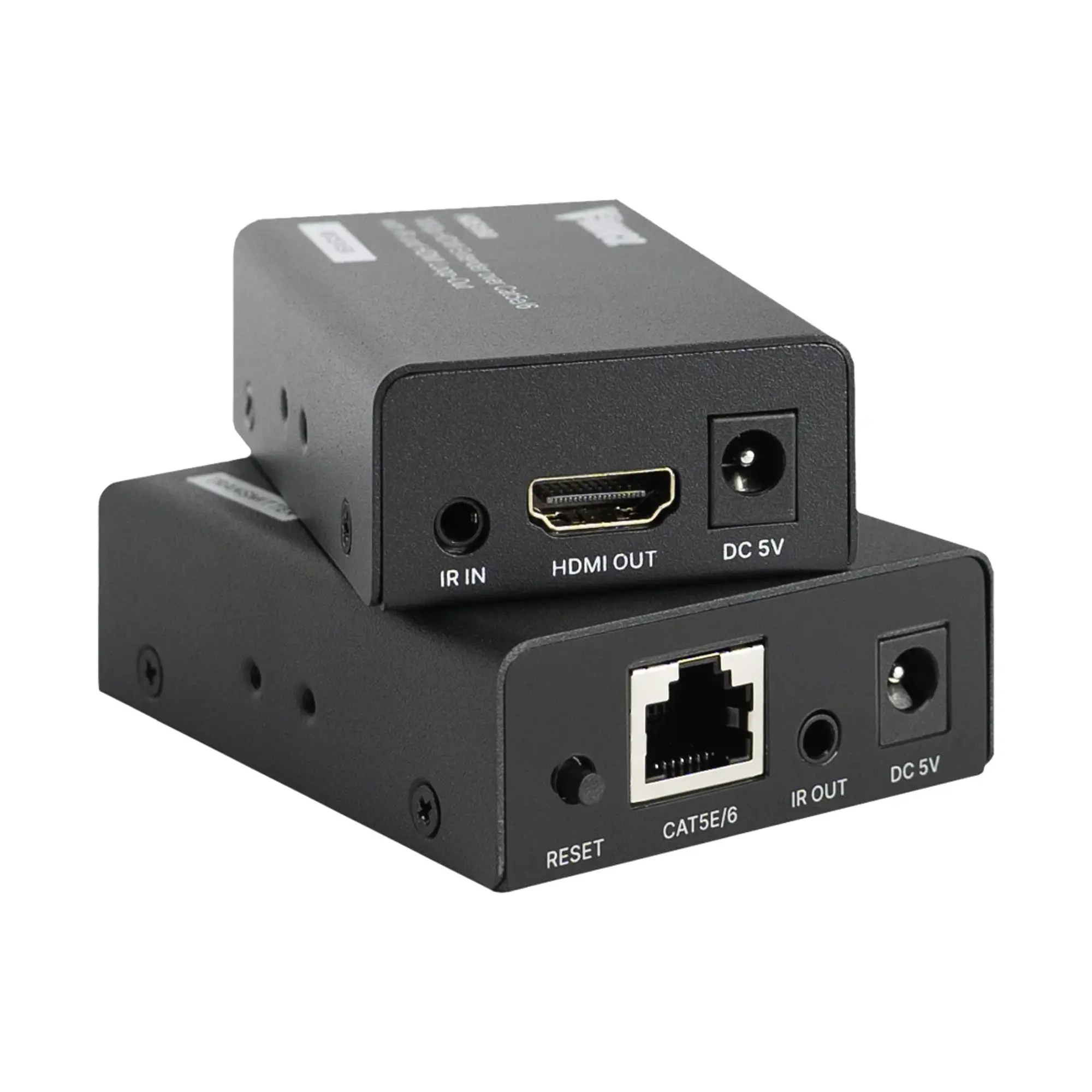

Vanco HDEX60

HDMI Extender over Cat5e/6 Cable with IR and HDMI Loop-Out

HDEX60

A plug and play solution for extending a HDMI signal over a single Cat5e/6 cable with IR and HDMI loop-out.

The HDEX60 by Vanco extends 1080p high-definition video, audio, IR, and power up to 196ft (60m). Power over Ethernet (PoE) technology allows power from the transmitter to be sent over Cat5e/6 cabling to the receiver. No EDID or EQ changes are necessary as the units automatically adjusts with dynamic EDID management. HDMI loop-out is built into the transmitter for connecting additional local displays, AVR, or other system components. IR pass-through also allows for source control from the display location.

• Combined weight: 0.53lbs (240g)
• TX dimensions: 3.2in x 2.45in x 0.9in (81.5mm x 62mm x 24mm)
• RX dimensions: 3.3in x 1.94in x 0.95in (82mm x 49.5mm x 24.6mm)

Package contents:

• (1) HDEX60 (TX & RX)
• (1) IR blaster (TX)
• (1) IR receiver (RX)
• (1) DC 5V/1A power supply and adapter
• (1) Set of mounting hardware
• (1) Quick start guide

• 196ft (60m) transmission distance over a single Cat5e/6 cable
• Power over Ethernet (PoE) allows a single power supply at the transmitter to provide power to the receiver
• HDMI loop-out on the transmitter splits or cascades signals for additional components
• IR pass-through from the receiver to the transmitter with provided IR cables
• Supports 1080p @ 60Hz resolutions
• Compatible with Dolby, DTS, and PCM audio formats
• Dynamic EDID management
• HDCP compliant
• Includes DC 5V/1A power supply and adapter
