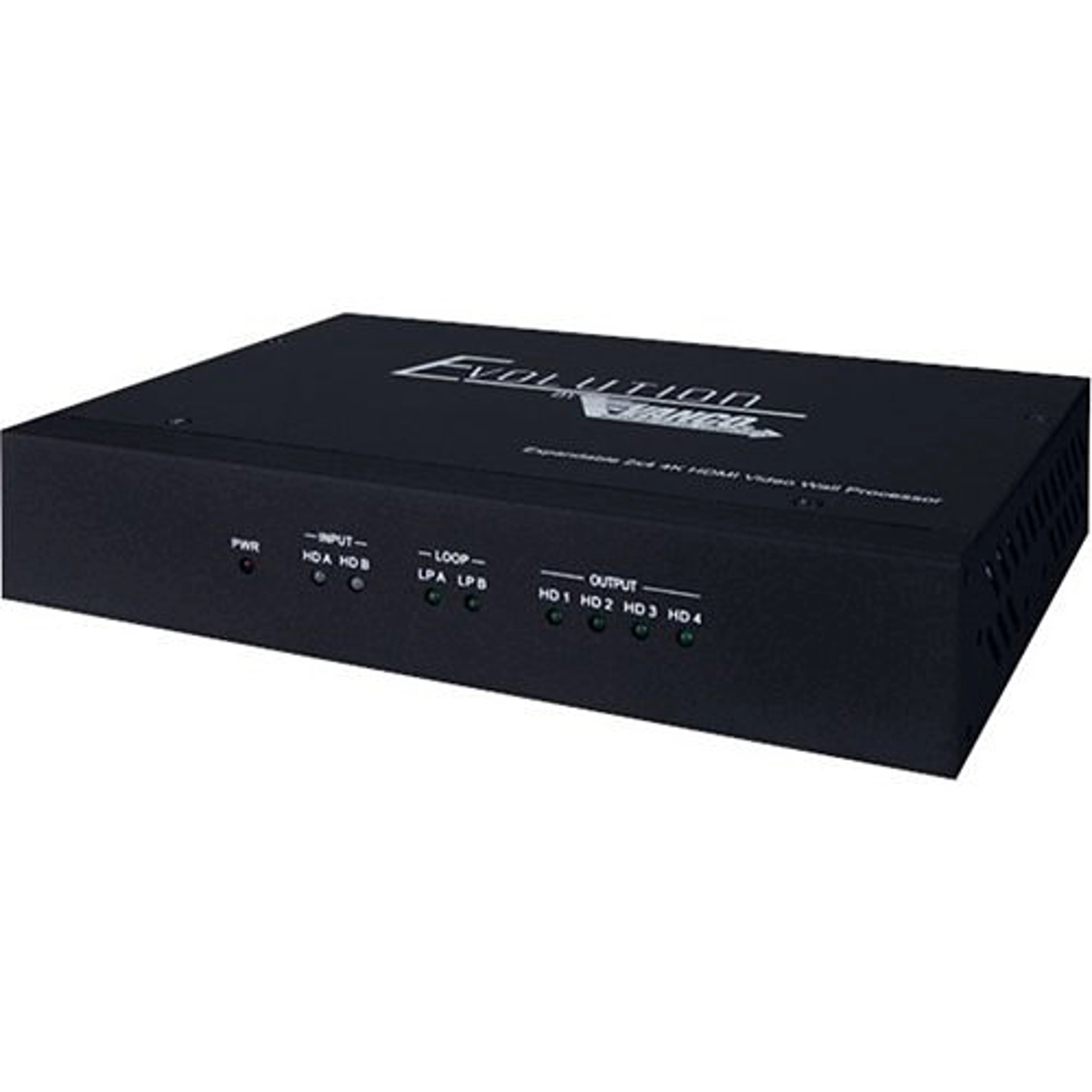

Evolution EVSP24VW

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: VAN-EVSP24VW

MPN: EVSP24VW

UPC: 741835115216

Description

2x4 Video Wall Processor Matrix Switch 4K60 HDCP 2.2 180° Screen Rotation HDMI Looput Expandable to 16x16

Send to a friend!

Expandable 4K 24 HDMI® Video Wall Processor

EVSP24VW

Tech Support Tips:

Larger video wall configurations requiring multiple units can ONLY be setup and controlled via RS-232
When multiple units need to be connected for larger video wall configurations, once the device is given a Device ID of 2 or greater is provided to the unit, it will need to be connected to the first unit in order to be controlled or accessed through the software
Please ensure your source input resolution are set to a resolution OTHER than 720P/1280720 when creating a video wall
To prevent overheating when using multiple units, make sure you provide ample spacing between units of at least 1inch/25mm

Package Contents:

4K 24 HDMI Video Wall Processor
Allows for 16 rows and columns of displays in any video wall configuration up to 1616
Two HDMI loop-outs to cascade into other units for larger video walls or to monitor sources locally
Two HDMI inputs allow for multiple source video wall configurations, or to switch one source across the entire video wall display
Passes up to 4K@60Hz with HDR
Able to scale output resolutions
HDMI 2.0 and HDCP 2.2 compliant
Customizable options for bezel adjustment
Supports 180° screen rotation
Able to be controlled over RS232 and TCP/IP via product software or 3rd party control systems
Dimensions: 8.5 W x 5.7 D x 1.7 H
