Evolution EVRX2006

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: VAN-EVRX2006

MPN: EVRX2006

Description

HDMI Extender RX Receiver Only 50m 1080p Bi-Directional IR

Add to Wishlist

Send to a friend!

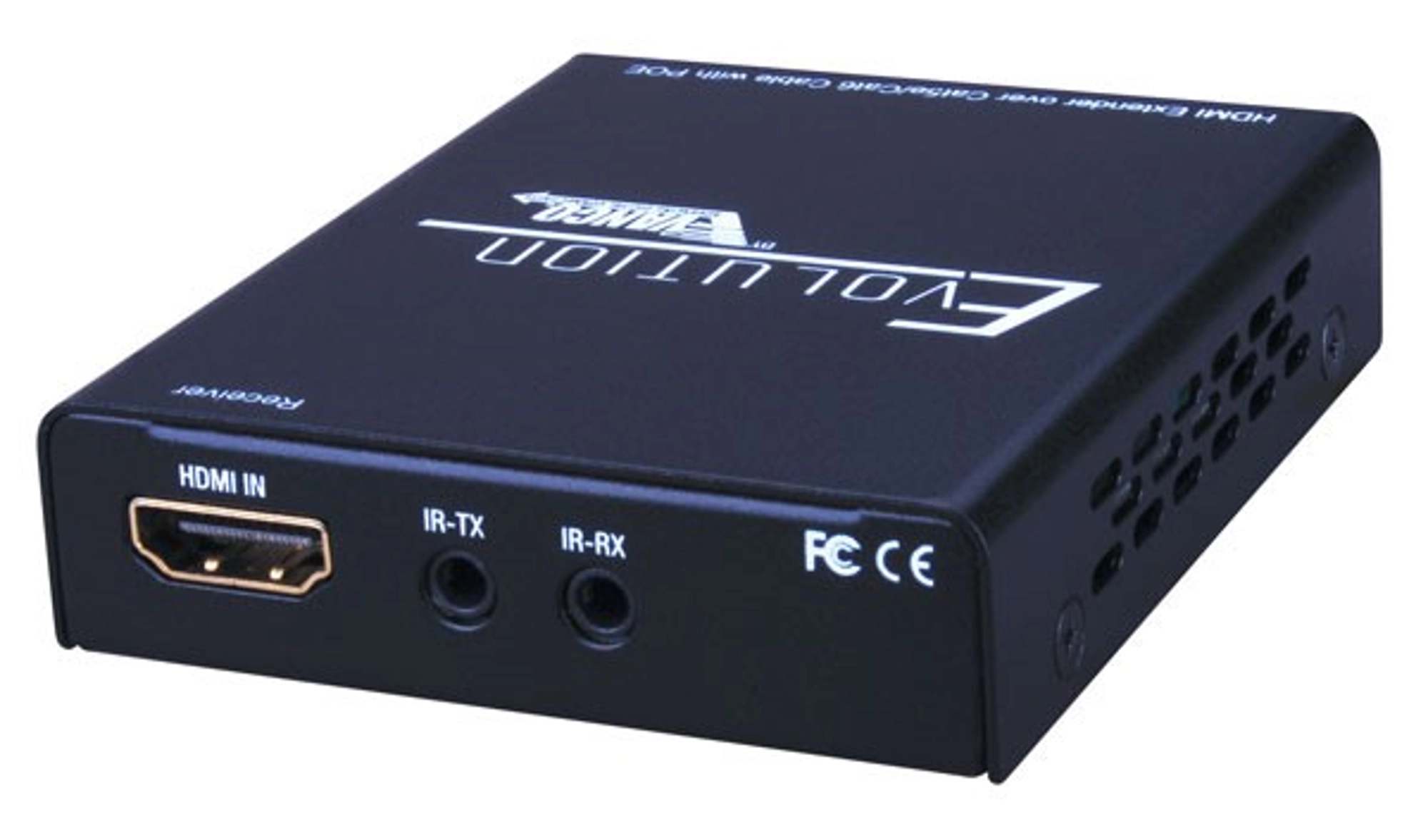

Evolution HDMI POE Receiver

EVRX2006

To be utilized with Evolution by Vanco matrix units or splitters that transmit HDMI signals over a single Cat5e/6 cable and feature Power over Ethernet (PoE) Technology

Tech Support Tips:

With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now 2nd Generation versions of each of these products for improved compatibility
Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a 2nd Generation splitter, a 2nd Generation EVRX2006 receiver must be used. All 2nd Generation Products are marked as such on the product and box. If no version or version number is listed, this would be a 1st Generation unit

Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6; No power supply needed on the receiver end
Slim and compact design
Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
Wideband IR signal from 20KHz to 60KHz
Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
Features Auto EDID and EQ Management
Works with HDMI and HDCP compliant devices
HDCP 2.0 compliant
Pure uncompressed 7.1ch digital audio
Supports DTS-HD and Dolby TrueHD high bit rate audio
Dimensions: 2.7 (68.58mm) W x .7 (17.78mm) H x 3.25 (82.55mm) D
