Evolution EVEXUSB32

USB 3.2 Extender over HDBaseT with USB-C

EVEXUSB32

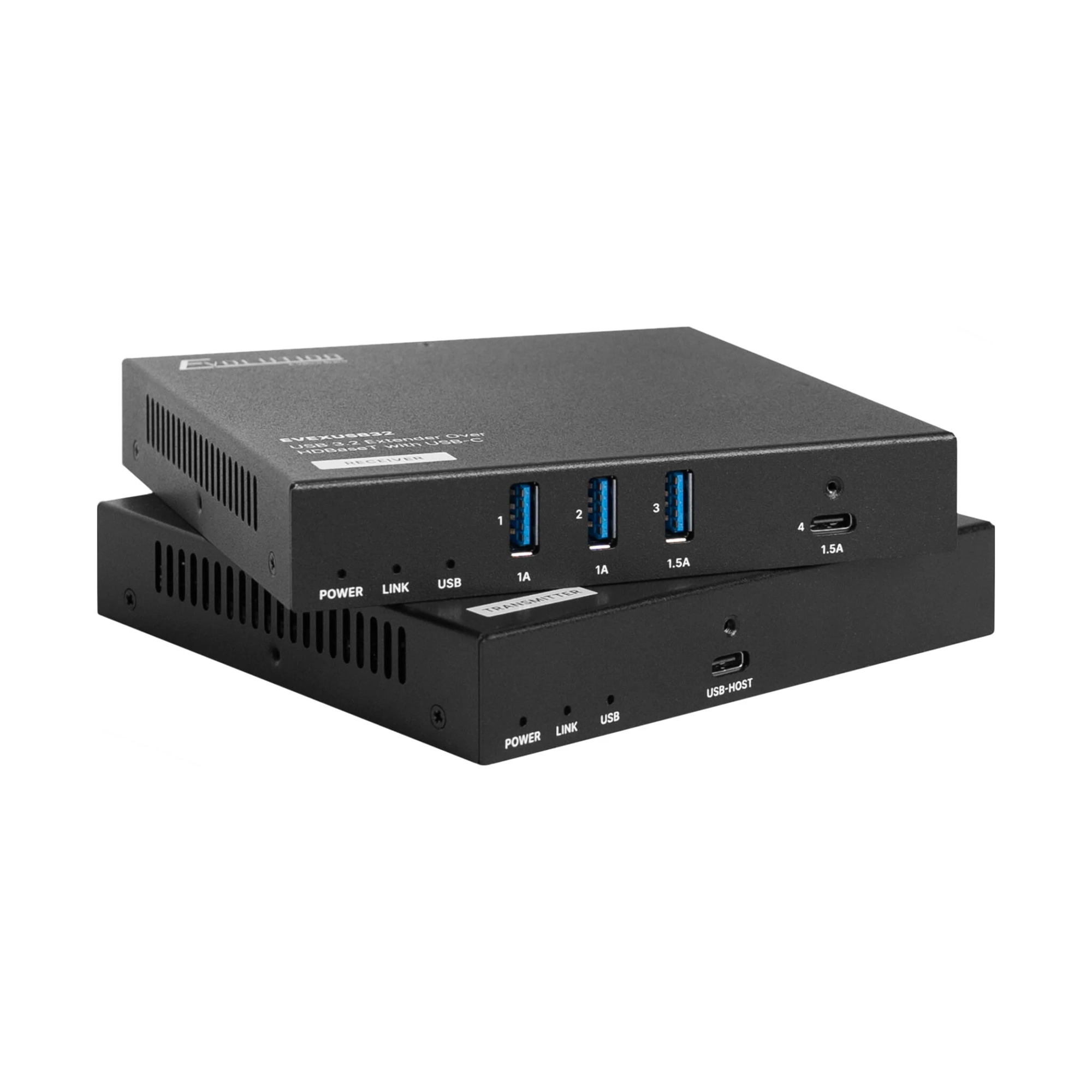

A complete USB 3.2 extender that transmits and controls data signals up to 328ft (100m) over a single Cat6A cable.

The EVEXUSB32 supports up to four USB 3.2 devices, such as webcams, keyboards, mice, and storage devices using USB-A and USB-C connections. Power over HDBaseT (PoH) technology allows for a single power supply on either end while two 1.5A ports (USB-A & USB-C) and two 1A ports (USB-A) provide power to the connected devices. With its reliable transmission and versatile connectivity options, the EVEXUSB32 supports corporate, medical, security, educational, and other applications.

• TX weight: 0.77lbs (346g)
• TX dimensions: 5.12in x 0.89in x 4.72in (130mm x 22.5mm x 120mm)
• RX weight: 0.75lbs (340g)
• RX dimensions: 5.12in x 0.89in x 4.72in (130mm x 22.5mm x 120mm)

Package contents:

• (1) Transmitter (host) unit
• (1) Receiver (device) unit
• (1) DC 20V/3A power adapter and cable
• (4) Mounting brackets and screws
• (2) 4-pin screwdown terminal connectors

• Supports USB 3.2 Gen 11 standards
• 5Gbps data transfer up to 328ft (100m) over a single Cat6A cable
• Backwards compatible with USB 3.0, 2.0, and 1.1 standards
• One USB-C port on the transmitter (host) unit
• One USB-C port and three USB-A ports on the receiver (device) unit
• Features VBUS, FSYNC, and RS232 pass-through
• Power over HDBaseT (PoH) technology allows for a single power supply on either end
• Includes two 1.5A ports (USB-A & USB-C) and two 1A (USB-A) ports on the receiver (host) unit
• Features the HDBaseT-USB3 standard for high performance and reliable connectivity with low power consumption
