Uniview NVR501-08B
SKU: UNV-NVR501-08B
MPN: NVR501-08B
Description

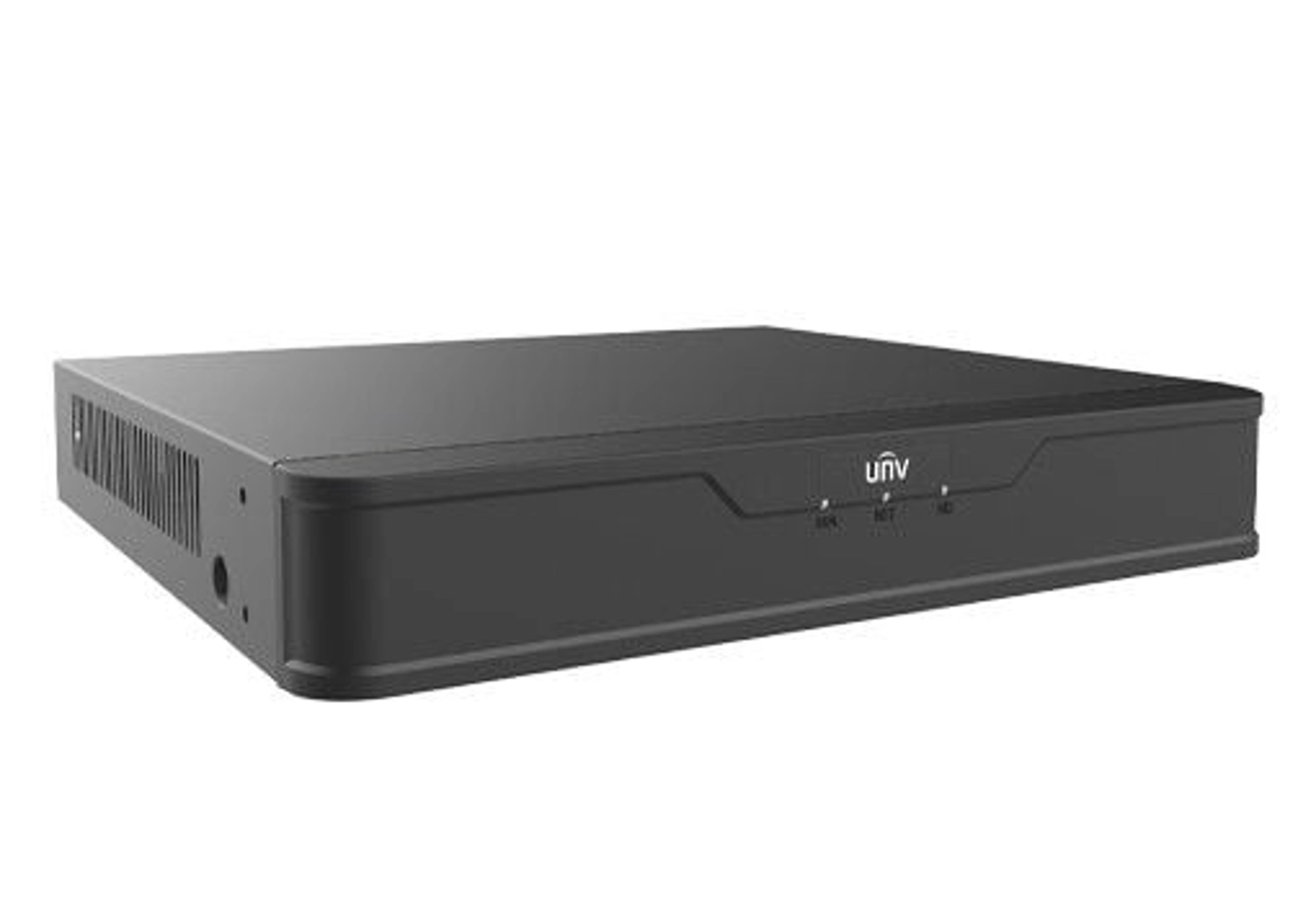

UNV NVR501-08B 4K Network Video Recorder
Send to a friend!
SKU: UNV-NVR501-08B
MPN: NVR501-08B
UNV NVR501-08B 4K Network Video Recorder
Send to a friend!
The NVR501-08B from Uniview is a 8 channels 1 SATA interface network video recorder, No HDD.
The NVR501-08B from Uniview is a 8 channels 1 SATA interface network video recorder, No HDD.
Features
| SKU | NVR501-08B |
|---|---|
| Manufacturer | Uniview |
| NDAA | Compliant |
| IP Channels | 8 Channels |
| Harddrive Size | No HDD |
| Protocols | Uniview Protocols, ONVIF Protocols |
| Features | Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Compression | Ultra 265|H.265/H.264 |
| Bandwidth | Incoming bandwidth 80Mbps, Outgoing bandwidth 64Mbps |
| Operating temperature | -10°C~+ 55°C (+14°F~+131°F) |
| Dimensions | 260mm 222mm 47mm (10.2" 8.7" 1.8") |
| Voltage | 12V DC |
| Power Consumption | = 6W |
| Network | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| SATA | 1 SATA interfaces |
| USB | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| Audio | 1-ch, RCA |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
