Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
GbE uplink Versatile wall, ceiling, and pole mounting
(2) RP-SMA connectors for optional external antennas
Weatherproof (outdoor exposed)
Mechanical
Dimensions137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
Weight 173 g (6.1 oz)
Enclosure material UV-stabilized polycarbonate
Mount material Polycarbonate, SGCC steel, plastic
Pole mount diameter 1~2" on pipe outer diameter
Wind survivability 33.2 N at 200 km/h (7.5 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet

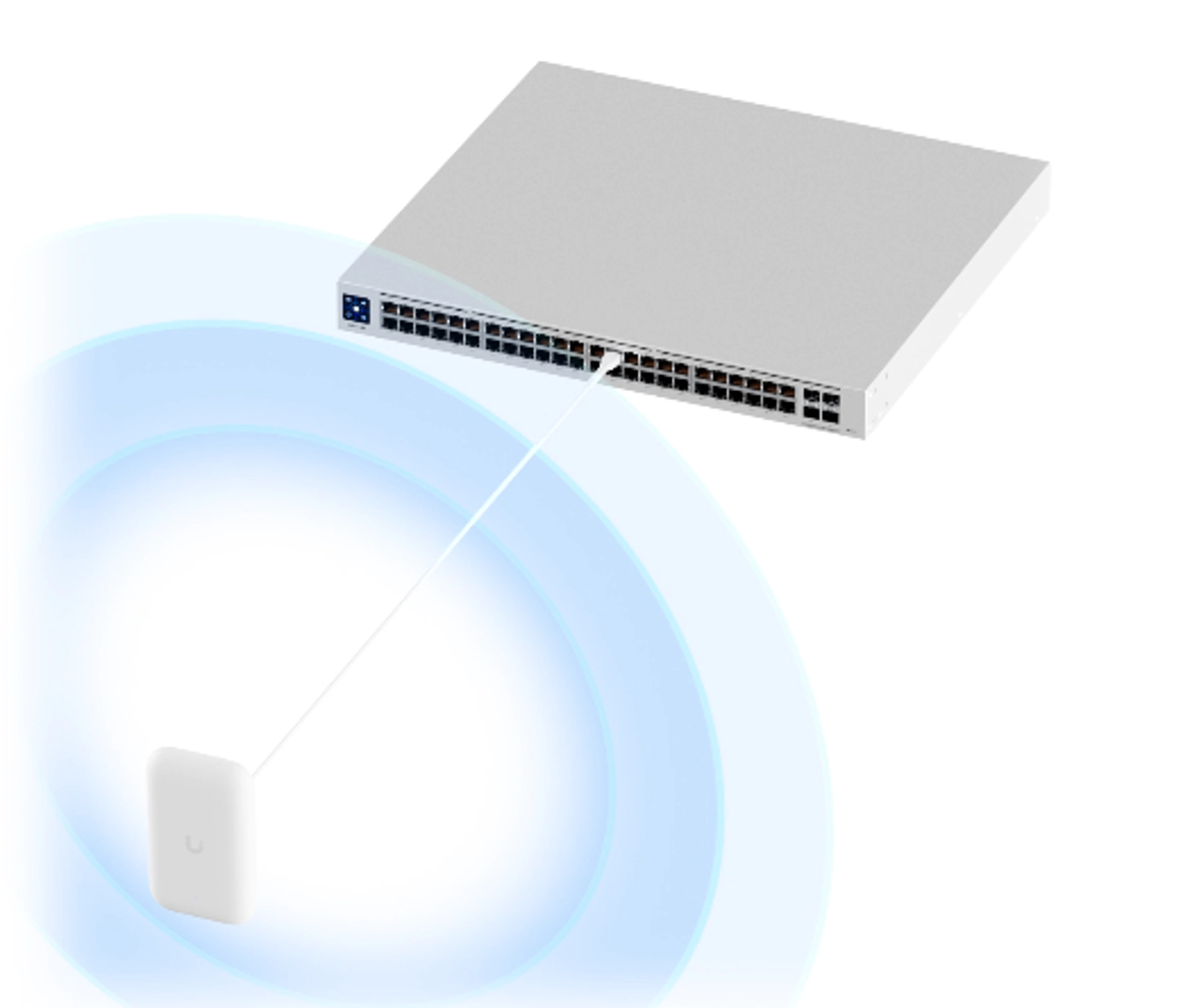

Power method PoE
Power supply UniFi PoE Switch
Supported voltage range 44—57V DC
Max. power consumption 8W
Max. TX power
2.4 GHz
5 GHz
6 GHz
20 dBm
20 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL MU-MIMO)
2 x 2 (DL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
300 Mbps (BW40)
866.7 Mbps (BW80)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
4.7 dBi
6.1 dBi
–
Antenna (1) Internal antenna
(2) RP-SMA connectors for optional external antennas
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Button Factory reset
Mounting Wall, ceiling, pole (Included)
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Brand:
Ubiquiti
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
Powered using PoE
