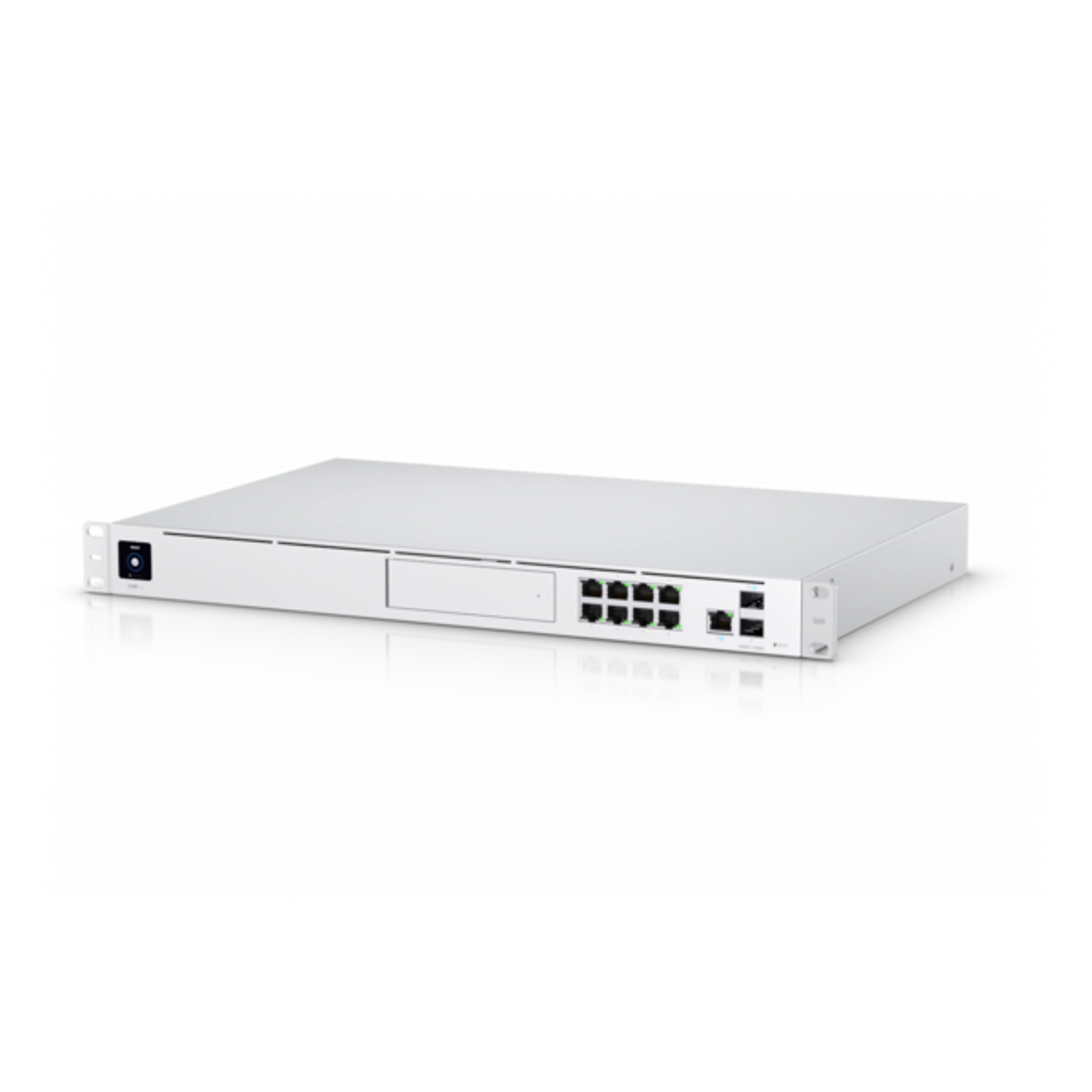

Ubiquiti UDM-PRO-US

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.

Mechanical Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") Weight 3.9 kg (8.6 lb) Enclosure material Aluminium CNC, SGCC steel Mount material SGCC steel Hardware Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System memory 4 GB DDR4 On-board storage 16 GB eMMC Management interface Ethernet Bluetooth Networking interface LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) GbE RJ45 port (1) 10G SFP+ port IDS/IPS throughput 3.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. Power method (1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input Power supply AC/DC, internal, 50W Supported voltage range 100—240V AC Max. power consumption 33W ESD/EMP protection Air: ± 15kV, contact: ± 8kV LCM display (1) 1.3" touchscreen Button Factory reset Ambient operating temperature -10° to 40° C (14° to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Gateway Features Performance Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting Next-generation security Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall Advanced networking License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support LEDs Ethernet Link/activity Green: 1G Amber: 10/100M SFP+ Link/activity White: 10G Green: 1G HDD White: disk activity Amber: disk error RPS Blue: ready

Includes full UniFi application suite for device management 3.5+ Gbps routing with IDS/IPS (1) 10G SFP+*, (8) GbE RJ45 LAN ports (1) 10G SFP+*, (1) GbE RJ45 WAN ports 3.5" NVR HDD bay UniFi Power Backup ready 1.3" touchscreen
