Technical parameters Connectors and Interfaces LAN speed: (1) 10/100/1000Mbps Gigabit LAN: Yes Physical characteristics Purpose: Indoor Buttons: Reset Operating temperature [°C]: -10 up to 70 Weight [g]: 300 Depth [mm]: 160 Width [mm]: 160 Height [mm]: 33 Power Max. power consumption [W]: 10,5 Power over Ethernet: 802.3af, 48V DC PoE type: Input Software Operating mode: Access Point IPv6 support: Transparent (bridge mode) Default IP address: Dynamic from DHCP Default login and password: ubnt / ubnt Wireless features Wireless frequency: 2.4 + 5 GHz (dual band) Transmission speed - WiFi 2.4GHz [Mb/s]: 300 Transmission speed - WiFi 5GHz [Mb/s]: 1733 WiFi standards: 802.11ac, 802.11n, 802.11a, 802.11b/g Tx power 2.4GHz [dBm]: 23 Tx power 5GHz [dBm]: 26 Security: WEP, WPA, WPA2 2.4GHz MIMO: 2 x 2 5GHz MIMO: 4 x 4 Type of antenna: Build-in Internal antennas: 4 Antenna gain [dBi]: 2.8 @ 2.4GHz, 3 @ 5GHz
Product Dimensions 6.3 x 6.3 x 1.29 inches
Item Weight 10.6 ounces
Manufacturer Ubiquiti Networks
ASIN B07C1PCHCJ
Item model number UAP-NANOHD-5
Brand:
Ubiquiti

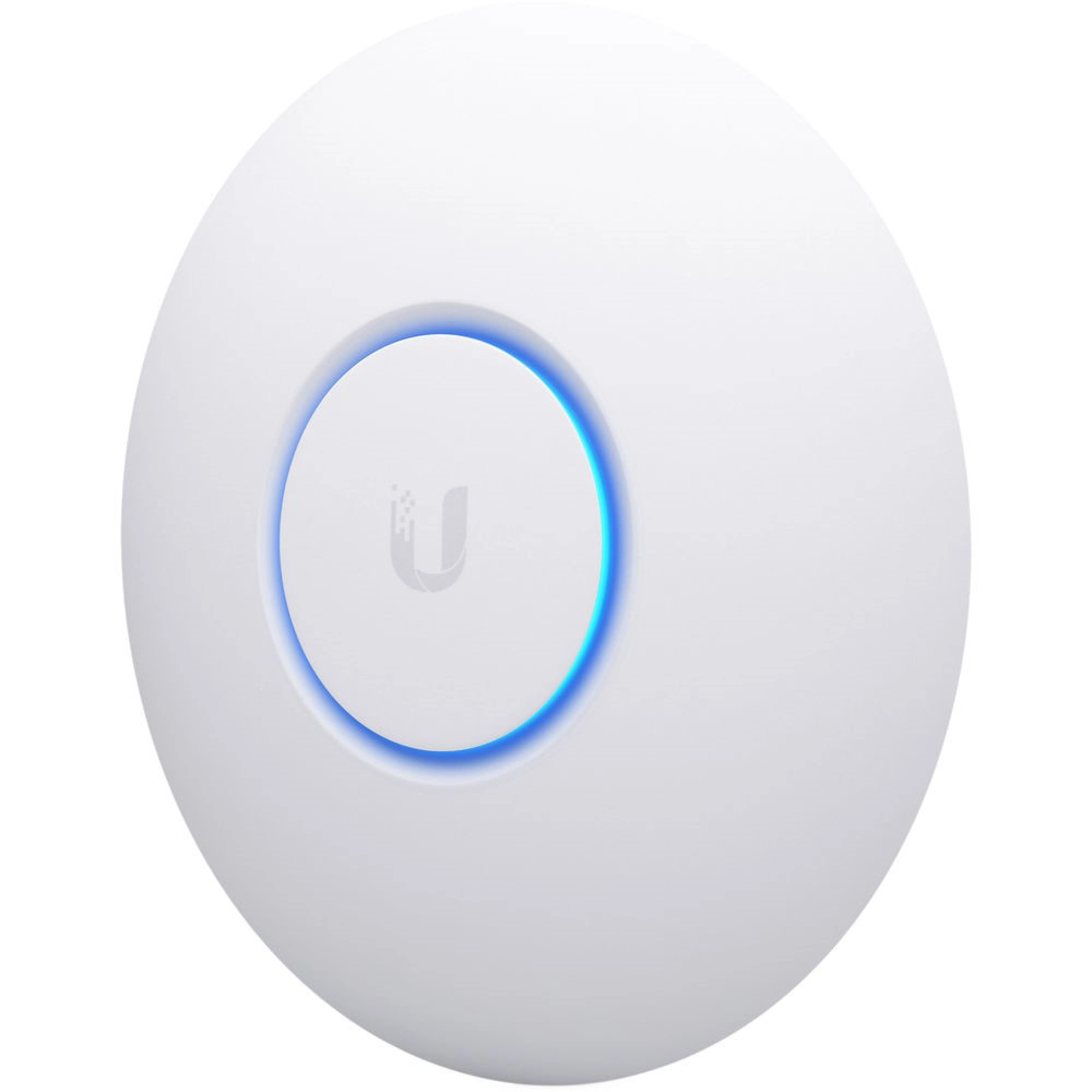

Ubiquiti Networks UniFi nanoHD Access Point UAP-nanoHD-5-US Dual Band 4x4 MU-MIMO up to 1730 Mbps Throughput
Designed for Seamless Integration: The UniFi nanoHD Access Point features a low-profile form factor. The optional ceiling mount or custom skins allow the AP to blend even more discreetly into its setting.
Easily deploy your UniFi Enterprise System using the included UniFi Controller software. Manage thousands of UniFi devices across multiple sites, and scale your network as needed without any ongoing licensing fees.
Our Smallest Access Point Our Smallest UniFi Access Point Available On the Market. UAP nanoHD is 30% smaller than UAP AC Pro version.
