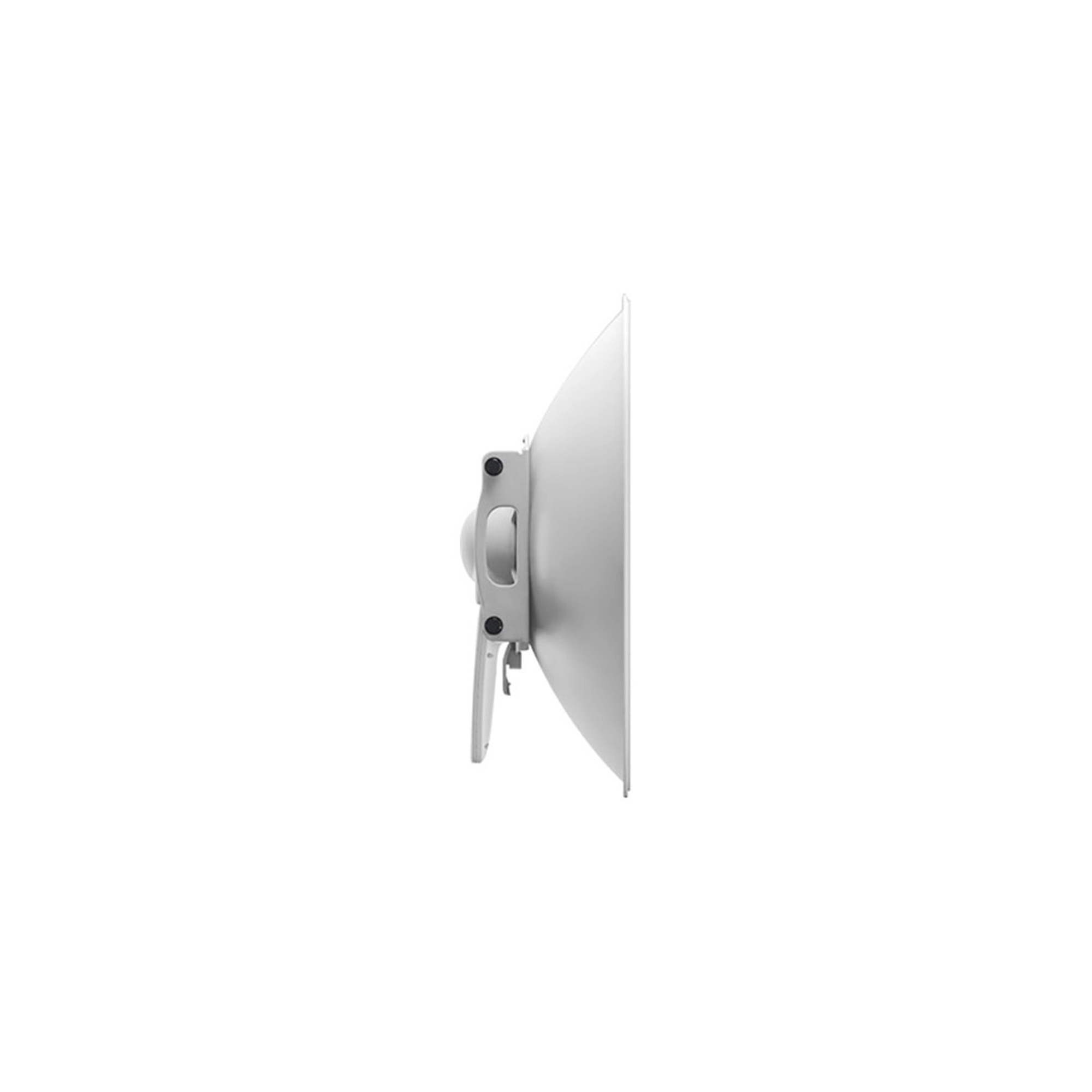

Ubiquiti RP-5AC-GEN2

The RP-5AC-Gen2 from Ubiquiti is a 5 GHz airMAX ac Radio BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 500+ Mbps throughput. With a die-cast aluminum enclosure, this BaseStation can be installed in some of the harshest conditions, allowing for the data signal to reach greater distances. Inside the enclosure, you will find an Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM for enhanced processing power to allow for a stronger, more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.

The BaseStation is capable of operating in both Access Point and Station modes allowing you to configure it to suit a variety of networking needs. Integrated QoS functionality allocates network resources to provide enhanced streaming of data while the airMAX engine with custom IC improves TDMA latency. Improved TDMA latency greatly increases data throughput and provides enhanced network speeds.

Features

5 GHz Frequency Band

With plenty of available spectrum, this unlicensed band works well for longdistance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

airView

Use the real-time spectrum analyzer so you can identify noise signatures and design your wireless links to minimize noise interference.

High Performance

To take full advantage of its design and capabilities, deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments.

airPrism Sector Antenna

You can mount three Rocket Prism 5AC Gen 2 radios on the airPrism 5 GHz 3x30° HD Sector Antenna, model AP5AC90HD, for PtMP links. Each Rocket radio corresponds with a specific 30° beamwidth and independently transmits and receives.

Dedicated Management Radio

Access the airOS configuration interface instantly through the UMobile app to set up and manage your Rocket 5AC Prism Gen 2.

Robust Die Cast Aluminum Casing

Helps protect the Rocket Prism 5AC Gen 2 against electromagnetic interference.

GPS for Superior Co-Location Performance

Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

Improved Surge Protection

The Rocket Prism 5AC Gen 2 utilizes the latest ESD protection to help protect against power surges.

Gigabit Ethernet

Delivers high throughput over its wired connection.

Plug and Play

Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket Prism 5AC Gen 2. (airMAX ac antennas are recommended for optimal performance.)
