Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna. The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.
Mechanical
Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wall mount (Not included)
Wind loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware

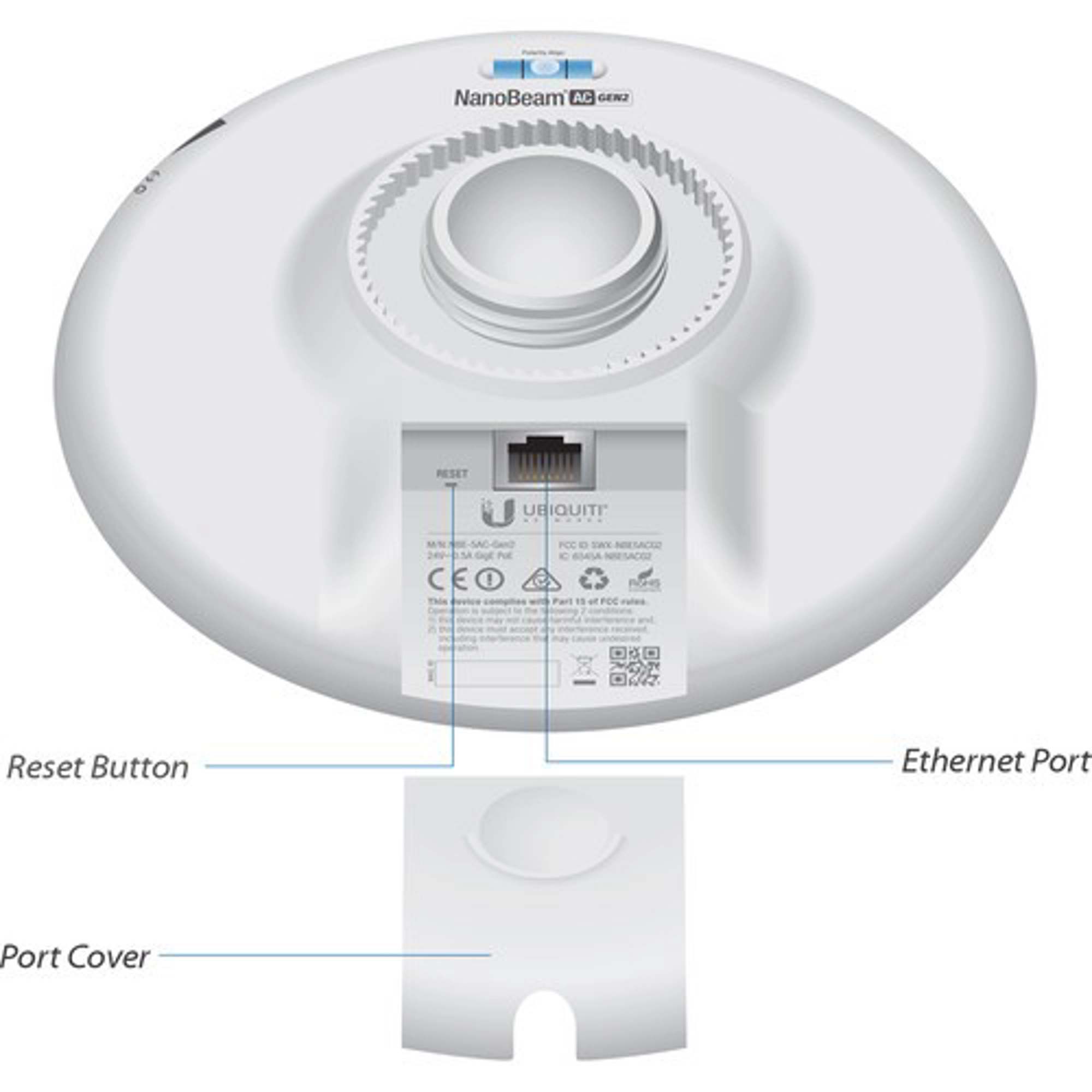

Networking interface (2) GbE RJ45 ports
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 20–27V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Ambient operating temperature -40 to 80° C (-40 to 176 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 19 dBi
Channel sizes
PtP Mode
PtPM Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Brand:
Ubiquiti
5 GHz, 10+ km link range
450+ Mbps throughput
Easy mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
