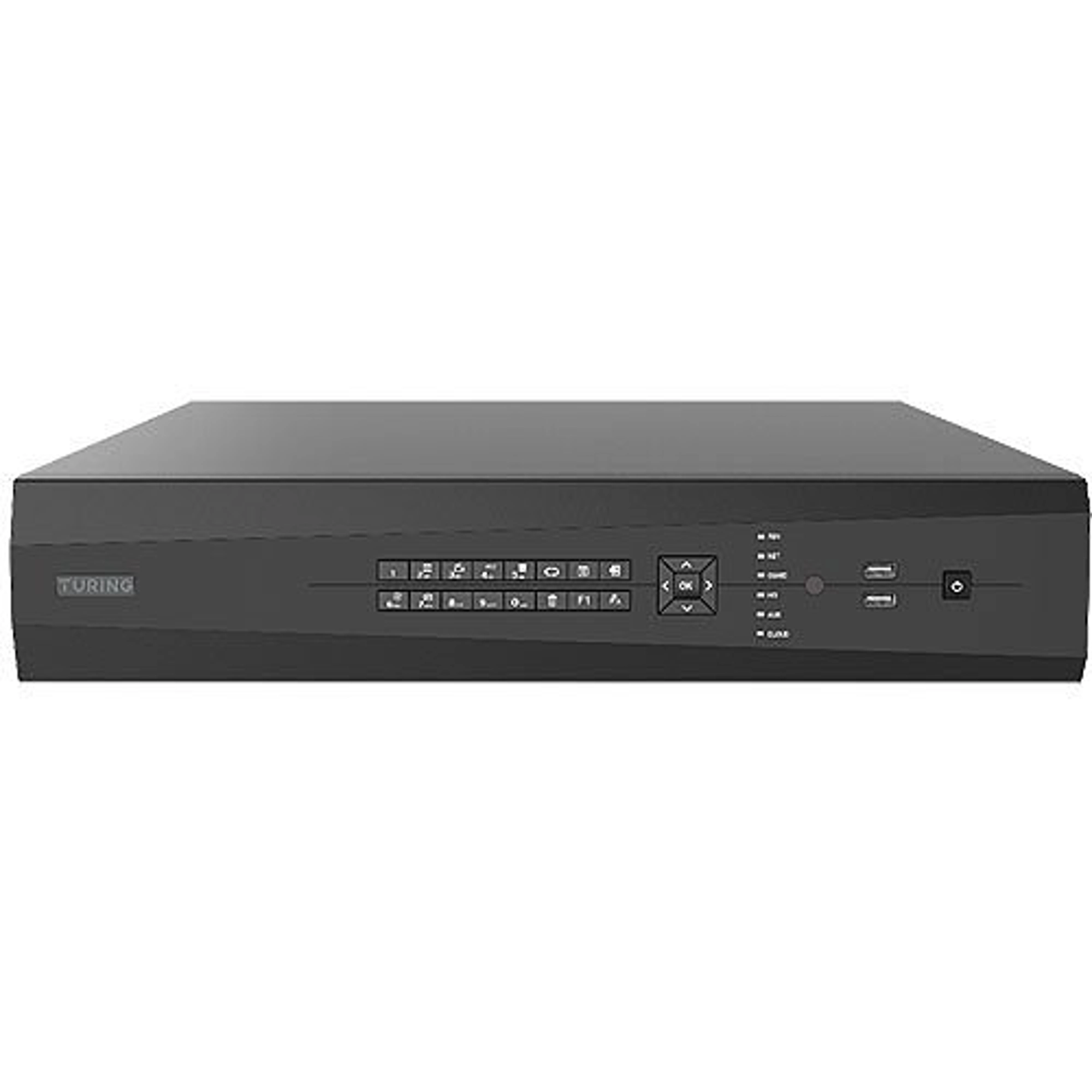

Turing TR-MR64R-B

SMART Series Network NVR w/Bridge

TR-MR64R-B

The Turing TR-MR64R-B NVR supports 64 channels of video. With the included Turing bridge, this bundle provides versatile local viewing and recording experience while still being complete with the powerful cloud VMS features of Turing Vision®

Compatible with:

WD Purple HDD

• Video Inputs 64 Ch. IP cameras
• Input Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• HDMI/VGA Output
• HDMI1/2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
• 1024x768/60Hz; HDMI Audio NOT supported
• VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Output Type Independent (separate between HDMI 1, HDMI 2, & VGA)
• Decoding Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30; H.265 & H.264
• Audio I/O Audio In: 1-ch, RCA; Audio Out: 1-ch, RCA; G.711A, G.711U
• Hard Disk Slots 8 SATA
• Max Single HDD Size Up to 10 TB Recommended; up to 14TB if climate controlled within 30°C (86°F) ambient temperature
• Pre-installed HDD n/a n/a
• RAID Support RAID 0,1, 5, 6, 10
• Data Throughput In: 384 Mbps / Out: 384 Mbps
• LAN Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
• Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
• USB Interface Front panel: 2 x USB2.0; Rear panel: 1 x USB3.0
• Alarm In/Out In: 16Ch; Out: 4Ch
• Software Clients Turing Vision mobile & desktop Apps; SMART Station
• ONVIF Compatibility Profiles S, G, T
• Cloud Access Turing Vision ® with included bridge device
• Power Consumption 100~240 VAC; Power Consumption: ≤ 25 W (without HDD)
• Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions & Weight 442mm 426mm 89mm (17.4" 16.8" 3.5"); ≤5.7kg (12.57lb)
• Rack Mount Included
• Certification CE (EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017),
• FCC (Part15 Subpart B, ANSI C63.4), UL, RoHS, WEEE

• Turing Vision cloud-ready with included Bridge Hardware
• Vision Core features - People & Vehicle Attribute Search, LPR & More
• Cloud storage of event thumbnails and video clips
• Turing SMART Series IP cameras recommended
• Third-party IP cameras supported by NVR and Vision cloud
• Remote maintenance through Turing Vision Cloud
• Local full time recording on up to 8 SATA HDD
• Two RJ45; 384 Mbps inbound throughput
