Turing TP-MVD8MV2

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: TUR-TP-MVD8MV2

MPN: TP-MVD8MV2

UPC: 810087240912

Description

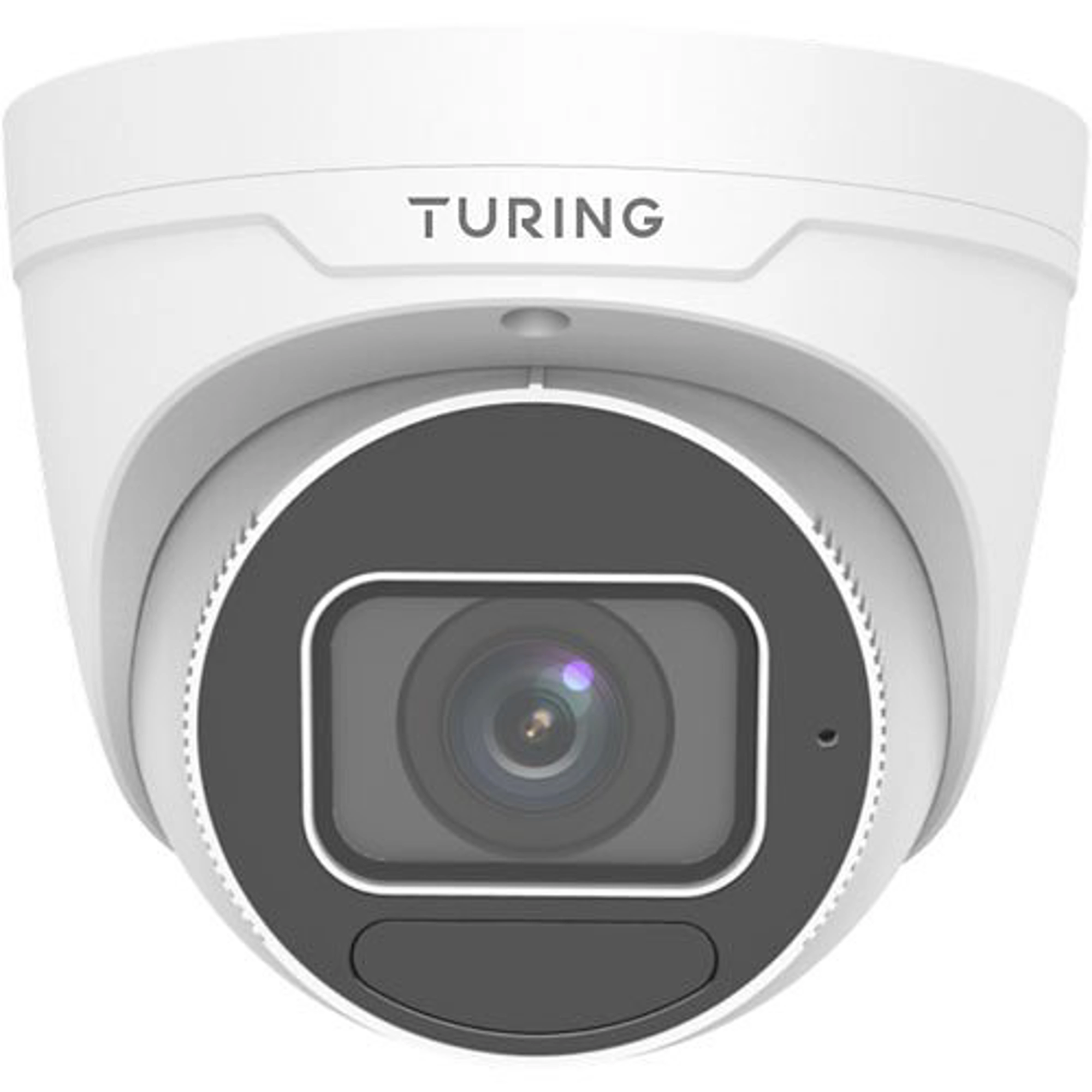

8MP Turret TwilightVision Varifocal 2.8-12mm, Mic, IP67, Human Vehicle AI

Send to a friend!

CAMERA

VIDEO & AUDIO

Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate
Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas


AUDIO

STORAGE

INTELLIGENCE

EVENTS

Basic Detection Motion detection, tampering alarm, audiodetection
General Function Watermark, IP address filtering, tampering
alarm, alarm input, alarm output, access policy,
ARP protection, RTSP authentication, user authentication
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

INTERFACES

CERTIFICATIONS

GENERAL

Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9.0W
Dimensions ( x H) 129 x 110mm (5.1 x 4.3)
Net Weight 0.69kg (1.52lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
