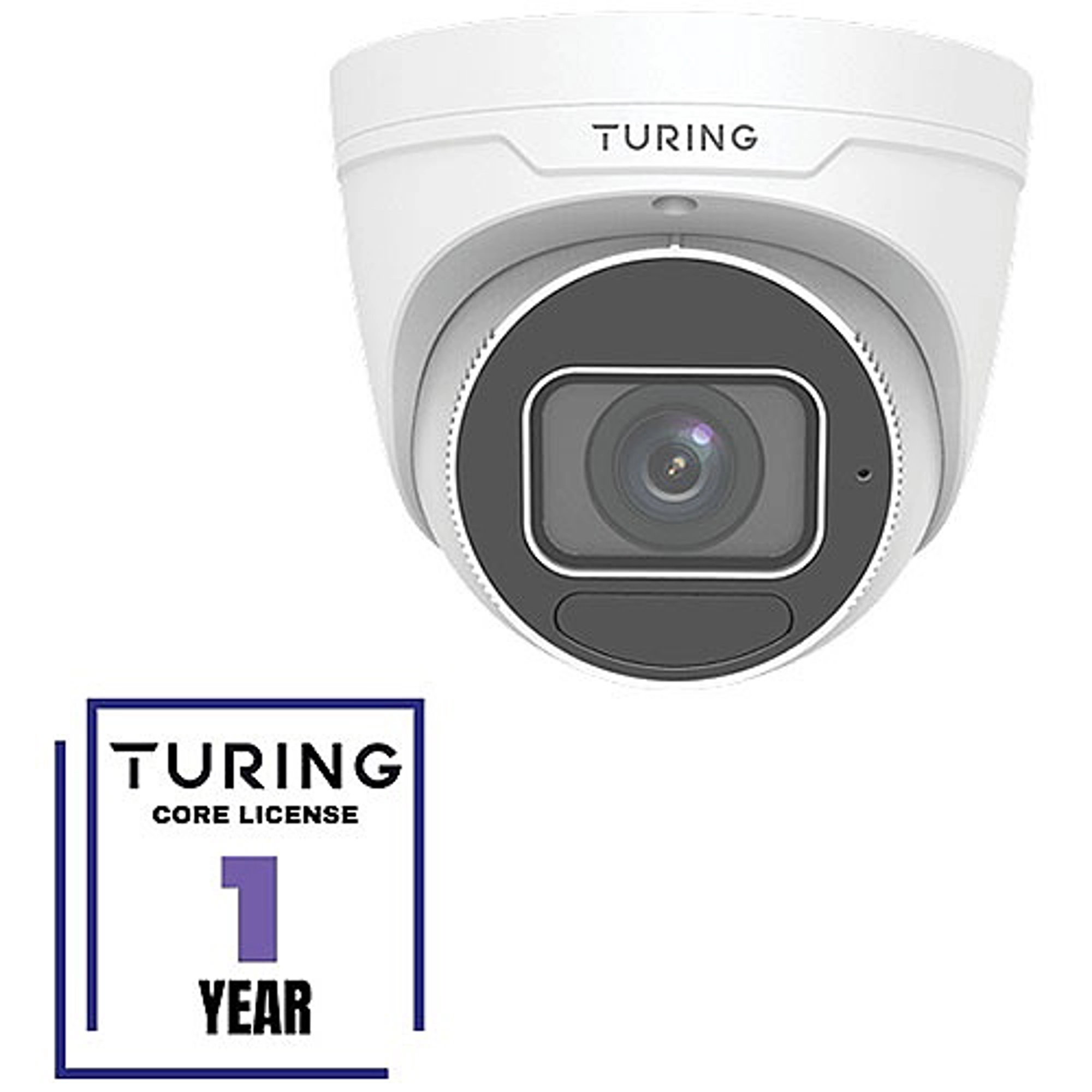

Turing TP-MVD8MV2-1Y

8MP HD TwilightVision™ IR VF Turret Network Camera

TP-MVD8MV2-1Y

One year Core License included

Compatible with:

Junction Box: TP-VDJB

Wall Mount: TP-VDWM

w/ Junction Box: TP-VDWJ

Pole Mount: TP-UDPM

Pendant Mount: TP-AIPMB

Optional Extensions: TP-IPME2 (9)

TP-IPME5 (22)

CAMERA

• Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Lens 2.8 ~ 12mm, AF automatic focusing
• and motorized zoom lens
• Angle of view (H) 107.4°~ 29.2°
• Angle of View (V) 54.2°~ 16.3°
• Angle of View (O) 111.0°~33.1°
• Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~
• 75° Rotate: 0° ~ 360°
• Shutter Auto/Manual, 1 ~ 1/100000s
• Minimum
• Illumination
• Color: 0.003Lux (F1.6, AGC ON)
• 0Lux with IR
• Day/Night IR-cut filter with auto switch (ICR)
• Digital Noise
• Reduction 2D/3D DNR
• S/N >56dB
• IR Range Up to 40m (131ft) IR range
• Wavelength 850nm
• IR On/Off Control Auto/Manual
• Defog Digital Defog
• WDR 120dB

VIDEO & AUDIO

• Video Compression Ultra 265,H.265, H.264, MJPEG
• H.264 code profile Baseline profile, Main Profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728),
• Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080),
• Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720),
• Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
• 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps;
• 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate 128 Kbps~16 Mbps
• OSD Up to 8 OSDs
• Privacy Mask Up to 4 areas
• ROI Up to 8 areas
• Motion Detection Up to 4 areas


• White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction 2D/3D DNR
• Smart IR Support
• Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti- clockwise
• Dewarping Supported
• HLC Supported
• BLC Supported

AUDIO

• Audio Compression G.711
• Two-way audio Supported
• Suppression Supported
• Sampling Rate 8KHZ

STORAGE

• Edge Storage Micro SD, up to 256GB
• Network Storage ANR

INTELLIGENCE

• Smart intrusion
• Prevention Cross line, intrusion, enter area detection
• Compatible NVR Turing SMART NVR: TR-MR(P) models

EVENTS

• Basic Detection Motion detection, tampering alarm, audiodetection
• General Function Watermark, IP address filtering, tampering
• alarm, alarm input, alarm output, access policy,
• ARP protection, RTSP authentication, user
• authentication
• Protocols
• IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
• RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
• HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
• Web Browser Plug-in required live view: IE9+, Chrome 41 and
• below, Firefox 52 and below

INTERFACES

• Built-in Mic Supported
• Network 1 RJ45 10M/100M Base-TX Ethernet

CERTIFICATIONS

• Certifications
• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

GENERAL

• Power DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 9.0W
• Dimensions ( x H) 129 x 110mm (5.1 x 4.3)
• Net Weight 0.69kg (1.52lb)
• Material Metal
• Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH
• (non-condensing)
• Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH
• (non-condensing)
• Surge Protection 6KV
• Ingress Protection IP67
• Vandal Resistant IK10
• Reset Button Supported

• People and Vehicle Search with SMART series NVR and Turing Vision Cloud
• Max. 8MP(3840x2160) resolution @20fps
• 2.8~12mm motorized lens
• TwilightVision allows for optimal image clarity in low light
• Smart IR up to 40m (131ft)
• Support 256 G microSD card
• IP67, IK10, WDR, PoE
