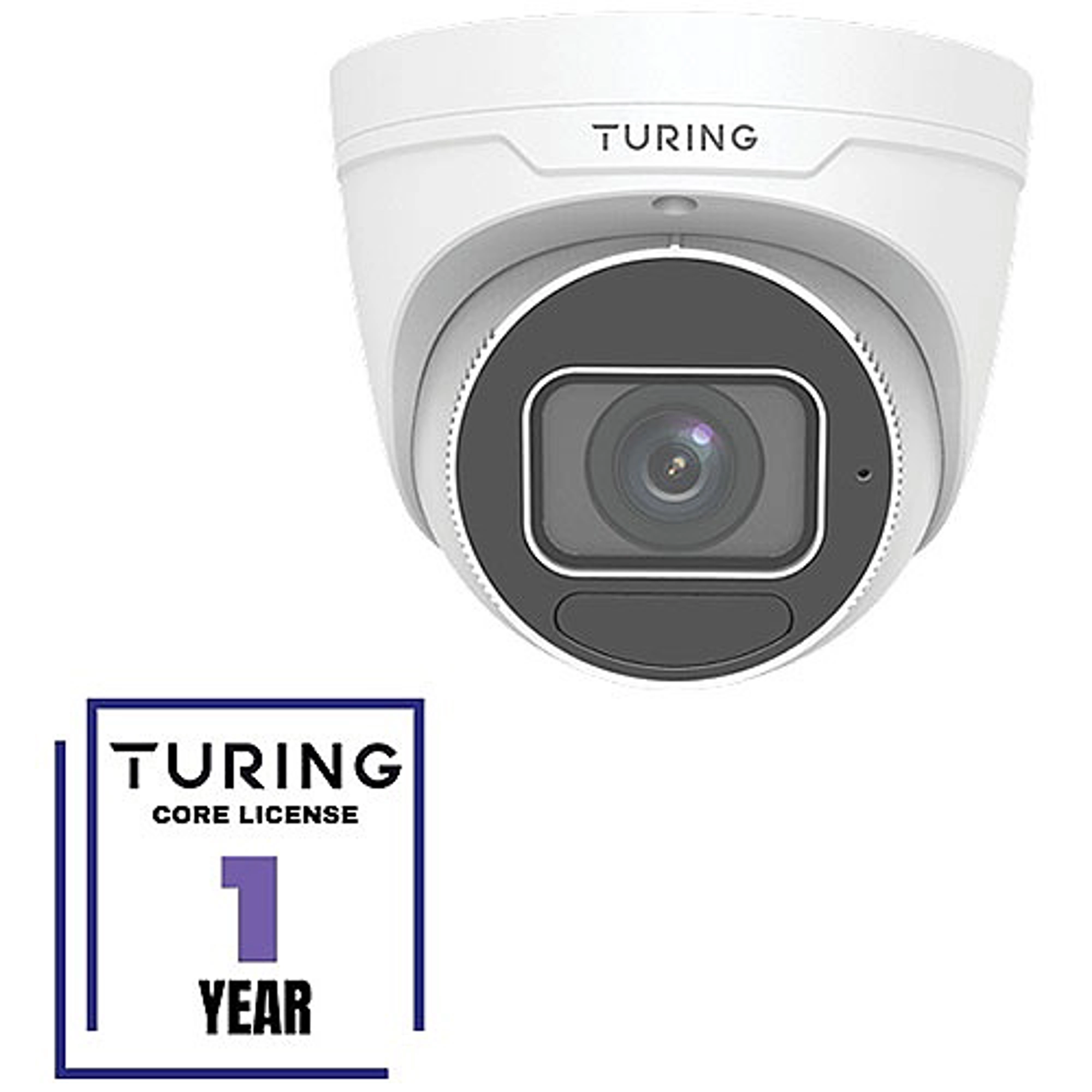

Turing TP-MVD4MV2-1Y

4MP HD TwilightVision TM IR VF Turret Network Camera

TP-MVD4MV2-1Y

One year Core license included

Compatible with:

Junction Box: TP-VDJB

Wall Mount: TP-VDWM

w/ Junction Box: TP-VDWJ

Pole Mount: TP-UDPM

Pendant Mount: TP-AIPMB

Optional Extensions: TP-IPME2 (9)

TP-IPME5 (22)

CAMERA

• Sensor 1/3", 4.0megapixel, progressive scan, CMOS
• Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
• Angle of view
• (H) 98.26°~ 31.35°
• Angle of
• View (V) 54.76°~ 18.55°
• Angle of
• View7 (O) 127.74°~36.99°
• Adjustment
• angle Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
• Shutter Auto/Manual, 1 ~ 1/100000s
• Minimum
• Illumination
• Color: 0.002Lux (F1.2, AGC ON)
• 0Lux with IR on
• Day/Night IR-cut filter with auto switch (ICR)
• Digital noise
• reduction 2D/3D DNR
• S/N >56dB
• IR Range Up to 40m (131ft) IR range
• Wavelength 850nm
• IR On/Off
• Control Auto/Manual
• Defog Digital Defog
• WDR 120dB

VIDEO & AUDIO

• Video
• Compression Ultra 265,H.265, H.264, MJPEG
• H.264 code
• profile Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440),
• Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080),
• Max 30fps;
• Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max
• 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;
• CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps;
• 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit
• Rate 128 Kbps~16 Mbps
• 9:16 Corridor
• Mode Supported
• OSD Up to 8 OSDs
• Privacy Mask Up to 4 areas
• ROI Up to 8 areas
• Motion Detection Up to 4 areas


• White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction 2D/3D DNR
• Smart IR Support
• Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti- clockwise
• De-warping N/A
• HLC Supported
• BLC Supported

INTELLIGENCE

• Smart Intrusion
• Prevention Cross line, intrusion, enter area detection
• Basic Detection Motion detection, tampering alarm, audio detection
• Supported NVR Turing SMART NVR: TR-MR(P) models

AUDIO

• Audio Compression G.711 Suppression Supported
• Sampling Rate 8KHZ

STORAGE

• Edge Storage Micro SD, up to 256GB
• Network Storage ANR, NAS(NFS)

NETWORK

• Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP,
• RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
• SMTP, 802.1x, SNMP, QoS Compatible
• Integration ONVIF (Profile S, Profile G, Profile T), API
• General Function Watermark, IP address filtering, access policy, ARP
• protection, RTSP authentication, user authentication
• Web Browser
• Plug-in required live view: IE9+, Chrome 41 and below,
• Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge
• 16+, Safari 11+

INTERFACE

• Built-in Mic Supported
• Network 1 RJ45 10M/100M Base-TX Ethernet

CERTIFICATIONS

• Certifications
• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

GENERAL

• Power DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 7.0W
• Dimensions ( x
• H) 129 x 110mm (5.1 x 4.3)
• Net Weight 0.69kg (1.52lb)
• Material Metal
• Working
• Environment
• -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-
• condensing)
• Storage
• Environment
• -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-
• condensing)
• Surge Protection 6KV
• Ingress Protection IP67
• Vandal Resistant IK10
• Reset Button Supported

• People and Vehicle Search with SMART series NVR and Turing Vision Cloud
• Max. 4MP(2688x1520) resolution @30/25fps
• 2.7~13.5mm motorized lens
• TwilightVision allows for optimal image clarity in low light
• Smart IR up to 40m (131ft)
• Support 256 G microSD card
• IP67, IK10, WDR, PoE
