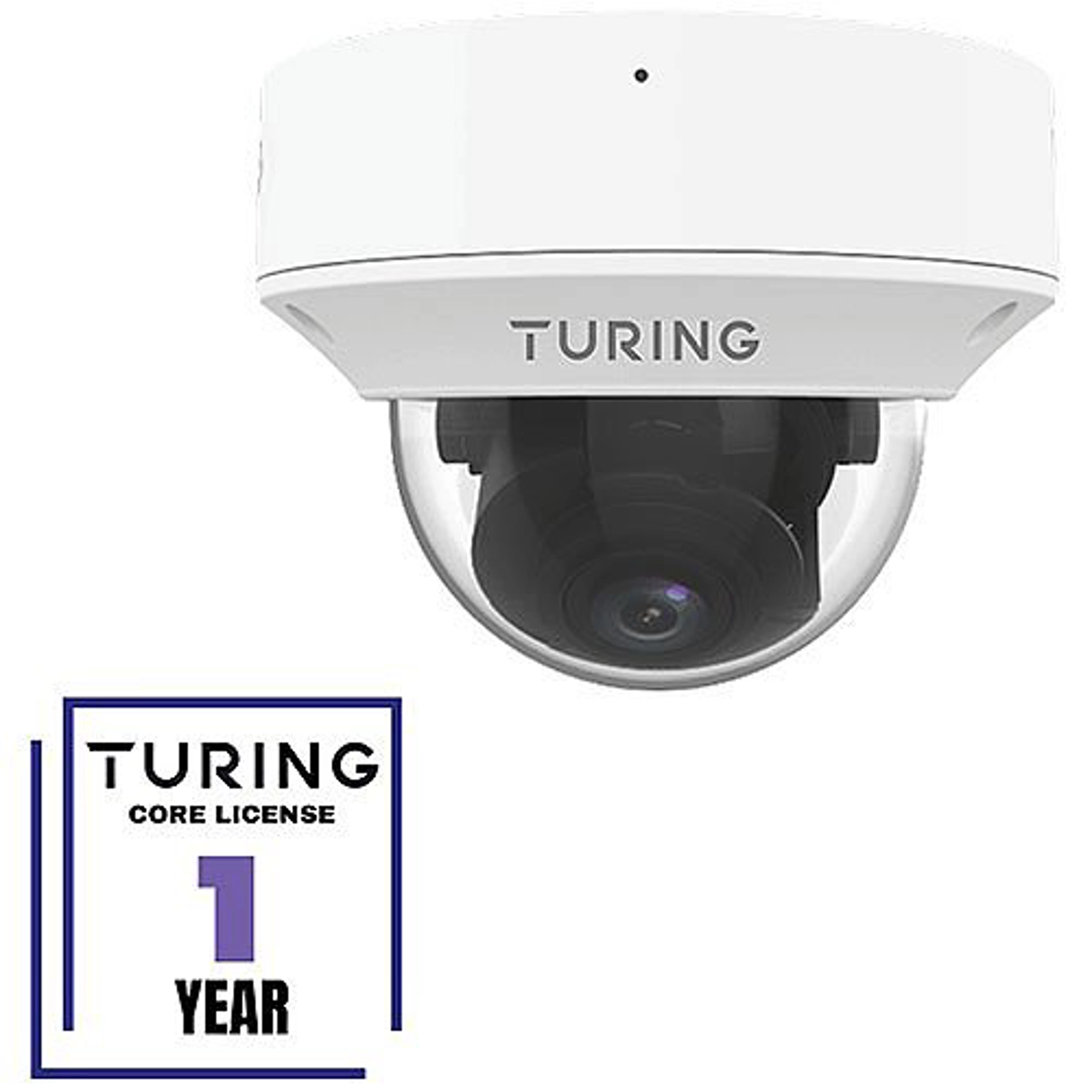

Turing TP-MMD8MV2-1Y

8MP HD TwilightVisionTM IR VF Dome Network Camera

TP-MMD8MV2-1Y

One year Core license included

Compatible with:

Ceiling Mount: TP-MDRM

Junction Box: TP-MDJB

Pole Mount: TP-UDPM

Wall Mount: TP-MDWM

w/ Junction Box: TP-MDWJ

Gang Box Plate: TP-MDEP

CAMERA

• Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
• Lens 2.8 ~ 12mm,
• AF automatic focusing and motorized zoom lens
• Angle of View
• (H) 107.4°~ 29.2°
• Angle of View (V) 54.2°~ 16.3°
• Angle of View
• (O) 111.0°~33.1°
• Adjustment
• angle Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~
• 355°
• Shutter Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination Color: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
• Day/Night IR-cut filter with auto switch (ICR)
• Digital Noise
• Reduction 2D/3D DNR
• S/N >56dB
• IR Range Up to 40m (131ft) IR range
• Wavelength 850nm
• IR On/Off
• Control Auto/Manual
• Defog Digital Defog
• WDR 120dB

VIDEO

• Video Compression Ultra 265, H.265, H.264, MJPEG
• H.264 code profile Baseline profile, Main profile, High profile
• Frame Rate
• Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps;
• 1080P (1920*1080), Max 30fps;
• Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate 128 Kbps~16 Mbps
• OSD Up to 8 OSDs
• Privacy Mask Up to 4 areas
• ROI Up to 8 areas
• Motion Detection Up to 4 areas


• White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR Support
• Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti- clockwise
• De-warping Supported
• HLC Supported
• BLC Supported

AUDIO

• Audio Compression G.711
• Two-way audio Supported
• Suppression Supported
• Sampling Rate 8KHZ

STORAGE

• Edge Storage Micro SD, up to 256GB
• Network Storage ANR

INTELLIGENCE

• Smart intrusion Prevention Cross line, intrusion, enter area detection
• Compatible NVR Turing SMART NVR: TR-MR(P) models

EVENTS

• Basic Detection Motion detection, tampering alarm, audio
• detection
• General Function
• Watermark, IP address filtering, tampering
• alarm, alarm input, alarm output, access policy,
• ARP protection, RTSP authentication, user
• authentication
• Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
• Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
• Plug-in free live view: Chrome 57.0+, Firefox
• 58.0+, Edge 16+, Safari 11+

INTERFACES

• Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
• Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O 1/1
• Built-in Mic Supported
• Network 1 RJ45 10M/100M Base-TX Ethernet

CERTIFICATIONS

• Certifications
• CE: EN 60950-1
• UL: UL60950-1
• FCC: FCC Part 15

GENERAL

• Power DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 9.0W
• Dimensions ( x H) 148 x 111.4mm (5.8 x 4.4)
• Net Weight 0.97kg (2.14lb)
• Material Metal + Plastic
• Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection 2KV
• Ingress Protection IP67
• Vandal Resistant IK10
• Reset Button Supported

• People and Vehicle Search with SMART series NVR and Turing Vision Cloud
• Max. 8MP(3840x2160) resolution @20fps
• 2.8~12mm motorized lens
• TwilightVision allows for optimal image clarity in low light
• Smart IR up to 40m (131ft)
• Support 256 G microSD card
• IP67, IK10, WDR, PoE
