Turing TP-MMB4AV8L

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: TUR-TP-MMB4AV8L

MPN: TP-MMB4AV8L

UPC: 810087243425

Description

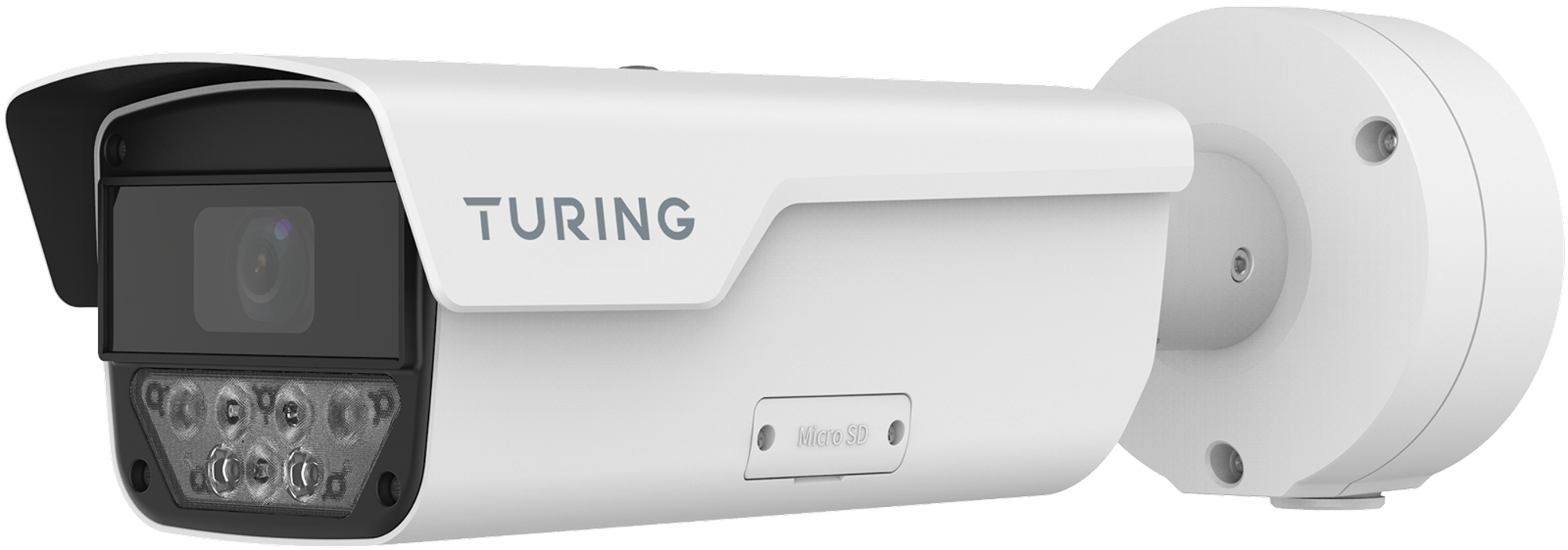

Smart Series 4MP IP LPR Bullet Camera 8-32mm Motorized Varifocal IR White

Send to a friend!

TURING VISION ® SUPPORT

TURING VISION ® Cloud VMS Included
LPR License TV-CORELPR1Y / TV-PREMLPR1Y (Purchase separately)
Prerequisites
Turing SMART Series NVR & bridge
Compatible NVR: TR-MRP042(4)GL-B, TR-MRP082/164G2-B, TR-MR32/64R-B
For optimal LPR performance in Turing Vision, use a maximum of two LPR cameras per Bridge

VIDEO & AUDIO

Image sensor 1/1.8, 4.0 megapixel, progressive scan, CMOS
Lens Focal Length: 8-32 mm
Minimum Illumination Color: 0.002 lux (F1.7); 0 lux with IR on
IR LED IR LED Range: Up to 50m (164ft); 850nm
Shutter Auto/Manual, shutter time: 1/30~1/100000 s
Image Processing WDR: 120 dB; S/N: >56dB; Noise reduction: 2D/3D;
Video Encoding Ultra 265, H.265, H.264 (Baseline profile, Main Profile, High Profile); ROI: Up to 8 areas
Available Resolution and Frame
Rate
Main Stream: Up to 4MP(2688x1520) ,Max 30fps
Sub Stream: Up to 720P (2560*720), Max 30fps
Third Stream: Up to D1 (720x575), Max 30fps
On-screen Overlay OSD: Up to 8 OSD;
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Rotation Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
Audio & Alarm I/O Audio I/O, Alarm I/O
Alarm handling Alarm out x1: withstand voltage: AC 125V/0.3A, DC 30V/1A
Alarm in x 2: supports level (up to DC 5V) and switch signal
Onboard Storage microSD slot (SD card not included); up to 128GB

Smart Event

Vehicle speed Recognize license plates of vehicles traveling at speeds up to 50 MPH
Vehicle detection mode Video detection (base on headlight and taillight)
Vehicle list Supports allowlist and blocklist configuration, each list allows up to 20,000.
Linkage action Barrier opening conditions: Recognized, Allowlist, not in the Blocklist, All Vehicles

NETWORK ACCESSIBILITY & SECURITY

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
Compatible Integration ONVIF (Profile S), API,SDK
User/Host Up to 32 users. 3 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication
for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Network 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

GENERAL

EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
Safety Certification CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Power DC12V + 25% - 10% Max. power consumption: 20W Supports PoE (802.3at, class 4)
Dimensions & Weight 406mm x 126mm x 130mm (16 5 5.1), 2.1kg (4.63lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤90% RH (non-condensing)
Reset Button Yes
Environmental Protection Ingression protection: IP67; IK10

**All specifications are subject to change without further notice

To be used with selected SMART Series NVR with Turing Vision Cloud
8~32mm motorized zoom lens, ideal for license plate capture
TwilightVision technology superior low-light performance
Built-in LPR algorithm ensures reliable license plate recognition
Block and allow lists for gate and barrier access control
Turing Vision Core LPR licenses (not included) for vehicle, plate search and more
