Turing TP-MED4M28C

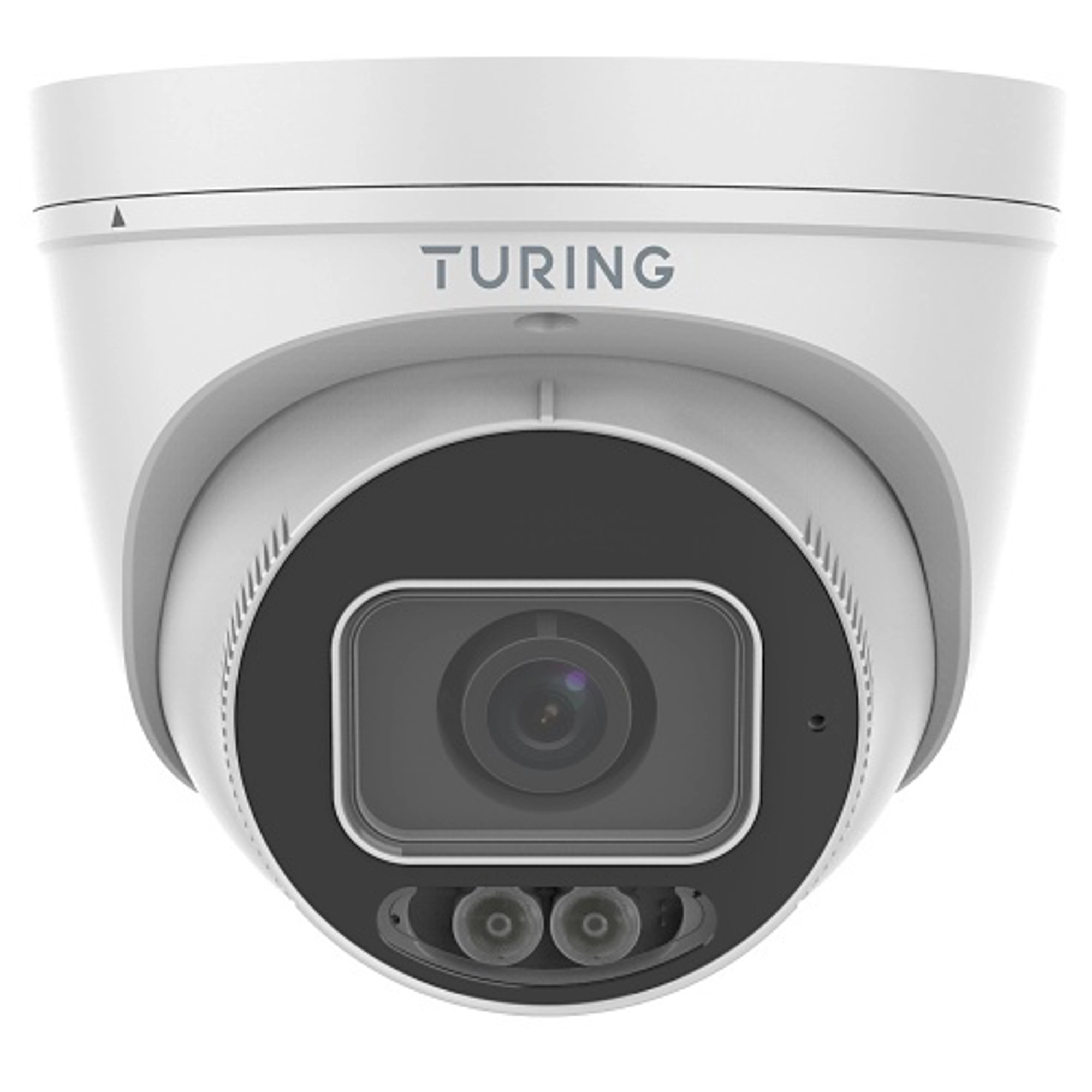

Turing SMART TP-MED4M28C 4MP Fixed Lens White Light LED VibrantView Full Color

TP-MED4M28C

Compatible with:

• Junction Box TP-VDJB
• Wall Mount (with Junction Box) TP-VDWJ
• Wall Mount TP-VDWM
• Corner Mount TP-WMCM
• Pole Mount TP-UDPM
• Pendant Extension (200mm) TP-IPME2
• Pendant Extension (500mm) TP-IPME5
• Pendant Mount TP-AIPMB

• Sensor 1/2.7" 4MP 16:9 Progressive Scan CMOS
• Min Illumination Color: 0.002 Lux (F1.6, AGC on); 0 Lux with IR on; IR-cut filter with auto switch
• Lens 2.8 mm fixed lens; F1.0
• Field of View 108.6°; V: 81.3°; D: 135.1
• Manual Angle Adjustment Pan: 0°~360°; Tilt: 0°~75°; Rotate: 0°~360°
• Supplemental Lights White light LED x 2 up to 98 ft (30m)
• Video Encoding Ultra 265, H.265, H.264, MJPEG
• Max Video Resolution & Frame Rate
• Main Stream: 2688*1520 @ 30 FPS
• Sub Stream: 1280*720 @ 30 FPS
• Third Stream: 720*576 @ 30 FP
• Digital Processing 120 dB wide dynamic range (WDR); 2D & 3D digital noise reduction; defog
• On-Screen Display & Masking Up to 8 on-screen text fields; up to 4 privacy masks
• Image Flip & Rotation Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90°Counterclockwise
• Event Handling Basic: motion detection, tampering alarm, audio detection; Intelligent: cross Line, intrusion, enter area, with people, vehicle, and non-motor vehicle classifications
• Audio Onboard mic, audio I/O available; G.711 Audio Compression, 64Kbps Audio Bitrate, Two-way audio and suppression, 8Khz Sampling Rate
• Cloud VSaaS Integration Turing Vision, with SMART Series NVR, Bridge, and CORE AI license
• Software ClientsTuring Vision mobile & desktop APP; SMART Station
• ONVIF Compatibility Profiles S, G, T
• Network Interface 1 * RJ45 10M/100M Base-TX Ethernet
• Onboard Storage microSD (not included), up to 256 GB
• Reset Button N/A
• Power & Protection DC 12V±25%, PoE (IEEE 802.3af); up to 7.5W; 4KV Surge Protection
• Dimensions & Weight 5.1 x 4.3 (129 x 110mm); 1.52lb (0.69kg
• Temperature & Humidity Ratings Working: -22°F ~ 140°F (-30°C ~ 55°C), Humidity: ≤95% RH (non-condensing)
• Storage: -22°F ~ 140°F (-30°C ~ 55°C), Humidity: ≤95% RH (non-condensing)
• Certifications FCC, UL, CE
• Environmental Protection IP67

• Includes Turing Vision Cloud VMS
• Turing CORE AI Cloud ready with SMART Series NVR and bridge
• Smart AI searches and alerts with CORE AI license
• Large sensor full color low light performance
• White light LED
• NDAA Compliant
• Up to 10-year extended warranty with CORE AI license
