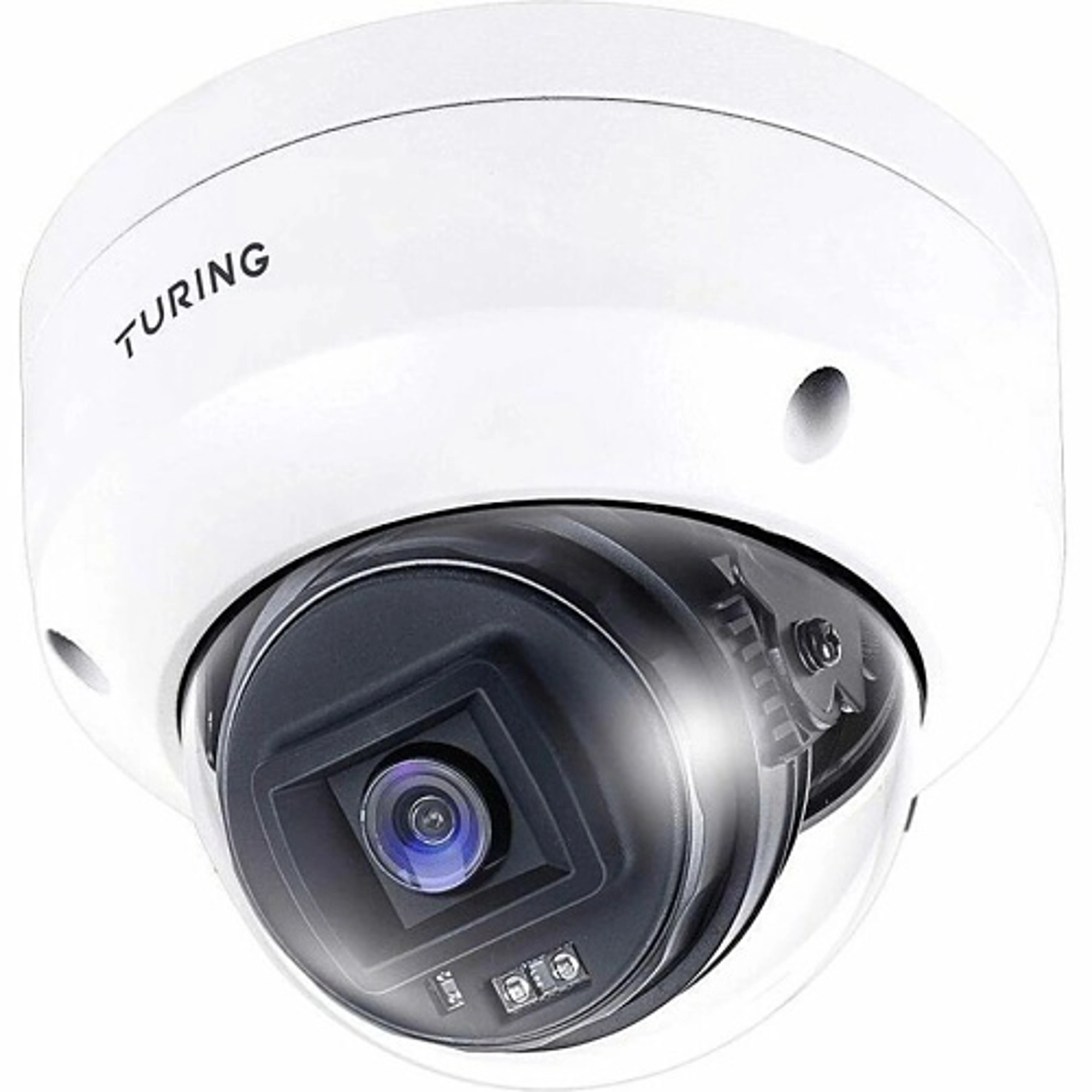

Turing EVC5FD256-1Y

EDGE+ Series 5MP Direct-to-Cloud Network Camera

EVC5FD256-1Y

The Turing Edge+ cloud camera revolutionizes physical security with unparalleled versatility. Experience included cloud VMS, complimentary 1-Year CORE AI License, ONVIF compatible support with your existing VMS, and a 3-Click installation process that is the fastest on the market. Take security to the next level with CORE AI, complete with fast smart search, accurate alerts, and hybrid storage.

Compatible with:

• Junction Box EBJBAD
• Pendant Cap EBPCFD
• Gang Box Plate EBEPFD
• Pendant Base TP-PCPDMB
• Wall Mount Arm TP-PCWM
• Parapet Mount TP-PCPRM

• TURING VISION ® Cloud VMS Included
• Software Clients Turing Vision Mobile & Desktop apps
• CORE AI License Includes TV-CORE1Y; extensions and add-ons available
• Image sensor 1/2.7" 5MP 16:9 Progressive Scan CMOS
• Lens 2.8 mm fixed lens; F1.6
• Field of View H: 111°; V: 59°; D: 133°
• Minimum Illumination Color: 0.005 Lux (F2.0, AGC ON); 0 Lux with IR in B&W night mode
• Supplemental IR LED Smart IR Range: Up to 98 ft (30 m); Wave Length: 850nm
• Image Processing 120 dB wide dynamic range (WDR); 2D & 3D digital noise reduction
• Video Encoding H.265/H.264 w/ smart encoding; MJPEG
• Available Resolution and Frame Rate
• Main Stream: 2880*1620 up to 30 FPS
• Sub Stream: 1280*720 up to 30 FPS
• Third Stream: 640*360 up to 30 FPS
• Event Handling Onboard object detection w/ people & vehicle classification
• Image Flip & Rotation Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90°Counterclockwise
• Physical I/O Audio: Line In/Line Out; G.7111/G.726
• Onboard Storage microSD up to 1TB (see order information)
• Compatible Integration ONVIF (Profile S, Profile G, Profile T)
• Network 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
• Certifications FCC, CE, UL
• Power DC 12V 0.38A, PoE (IEEE 802.3af) 5.2W
• Dimensions & Weight 4.61 x 3.53 (117.2 x 89.6mm); 1.19lb (540 g)
• Temperature & Humidity Ratings Working: -30~60°C (-22~140°F), Humidity: 90% RH (non-condensing)
• Storage: -10~60°C (14~140°F), Humidity: 90% RH (non-condensing)
• Reset Button Yes
• Environmental Protection Ingression protection: IP66; Vandal resistance: IK10

• 1/2.7 5MP 16:9 Progressive Scan CMOS
• 0.005 LUX @ F1.6
• 2.8 mm fixed lens; F1.6
• H: 111°; V: 59°; D: 133°
• Included Cloud VMS CORE AI-Ready
• Object detection on the edge, attribute search & recognition in the cloud
• Direct-to-cloud, included onboard storage
• Easy to use, 3-click installation
• NDAA compliant
• Up to 10-year extended warranty with CORE AI license

• Cutsheet
• Quick Start Guide
