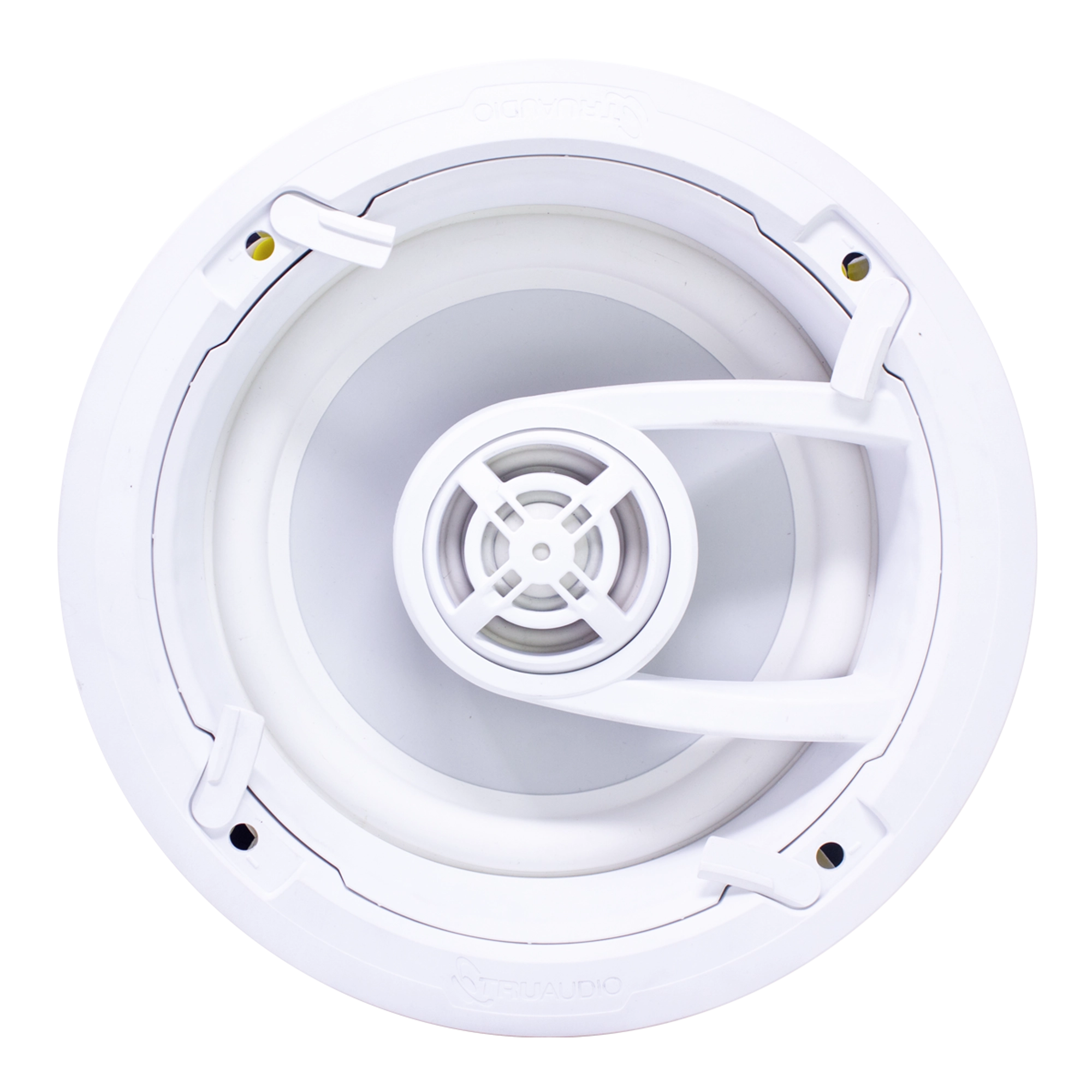

TruAudio G92

Ghost 9" In-Ceiling Speaker

G92

In 2007, the Ghost™ Series revolutionized the architectural speaker market with stunning design aesthetics, and installation characteristics. 13 Years later, TruAudio has done it again. The new Ghost™ Series has evolved from the ground up; with how it looks, how it performs, how it functions, and it even has updated, low impact, packaging.

• Pre-Construction Bracket RC-879
• Black Replacement Grille GR-79BK
• Square Replacement Grille GR-79S

• Speaker Type In-ceiling, 3-way
• Tweeter 1" silk dome
• Midrange 3" polypropylene
• Woofer 9" polypropylene
• Power 25-150 W
• Grill Type Microperf, Ghost style frameless
• Sensitivity 90dB
• Frequency Response 34-20kHz
• Impedance 8Ω
• Cutout Dimensions 9.9" (251mm)
• Finish Dimensions Diameter: 10.51" (267mm) x Depth: 6" (152mm)
• Speaker Wire Connector Quick Connect™ or gold binding post
• Rough-in Ring RC-879

The series has been updated from 6.5 and 8 speakers to 7 and 9 woofers, providing even warmer tones for your living space. The 9 model now features a 3-way design (a pivoting tweeter and mid-range, partnered with a fixed woofer). The depth of the reveal into the living space has been decreased by 40% allowing the speakers to virtually disappear into the ceiling. TruAudios new Ghost™ Series features the revolutionary and patented TruGrip™ technology, which incorporates a spring-loaded dog ear and mechanical cinching closure, significantly reducing time spent on trims-outs. TruAudios QuickConnect™ adapters were also incorporated, shaving even more time off of trim-outs, if QuickConnect™ pre-construction brackets (RC-879) were used in the rough-in stage. Finally, all new Ghost™ speakers now include a vented protective backbox to protect the critical components on the back of the speaker.

TruGrip™ Toolless Design

2-Step mechanical dogear ensures the tightest grip with zero sag.

PATENTED: swarmpat.com/patent

Quick Connect™ Technology

Simply connect the speaker cable to the rough-in ring terminals during pre-wire. When it's time to install the speaker, use the Quick Connect™ cable to tether to the speaker's Quick Connect. Patent Pending.

9" 3-Way Design

Newly designed, 9" 3-way speaker with a pivotable tweeter for enhanced acoustical performance.

Heavy-duty tweeter bridge doubles as a handle providing an easy install.

Protective Backbox on All Ghost Models

40% Smaller Reveal

With the smaller reveal, the grill virtually disappears into the ceiling

One Rough-in Ring for Both 9" and 7" Speakers

All Ghost™ series speakers now install using the same rough-in rings (RC-879).

Easy Breakdown Packaging

• Cutsheet
