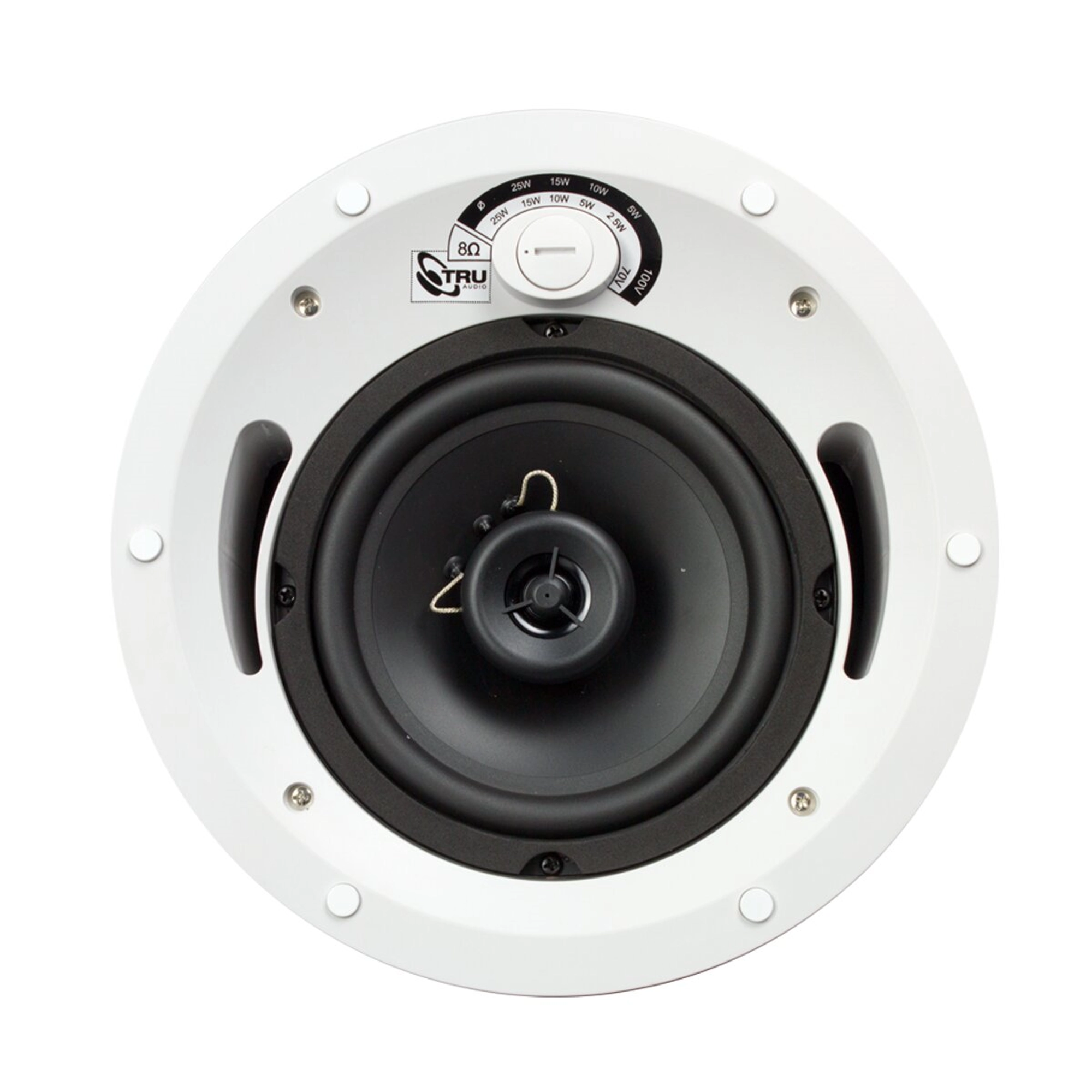

2-way, 70V/100V, in-ceiling, commercial speaker, 6.5" injected poly woofer, 3/4" PEI tweeter, 5-60 watts, 8Ω/70V/100V, UL Listed. Sold Each.
2-way, 70V/100V, in-ceiling, commercial speaker, 6.5" injected poly woofer, 3/4" PEI tweeter, 5-60 watts, 8Ω/70V/100V, UL Listed. Sold Each.
Color
Matte white bezel, black woofer and tweeter
Speaker Type
In-ceiling, 70V, 2-way
Tweeter
.75" PEI
Midrange
None
Woofer
6.5" polypropylene
EQ Adjustment
None
Power
5-60 watts
Grill Type
Ghost style, frameless - GR-CL-70V-6UL
Sensitivity
88 dB (2.83 volts /1 meter, +3dB)
Frequency Response
60 - 20K Hz. (+/-3 dB)
Impedance
8 ohm or 70v/100v
Cutout Dimensions
Diameter: 8.8" (224mm)
Finish Dimensions
Diameter: 10.4" (264mm), Deep: 9" (229mm)
70V Taps
2.5W-25W selectable
100V Taps
5W-25W selectable
Sound Dispersion
110°
Rough-in Ring
RC-6UL
Brand:
TruAudio
2-way, in-ceiling design
Frameless grill
UL 1480 Listed
Front facing tap settings
Back box included
70v, 100v and 8 ohm settings
70v Tap Settings: 2.5W, 5W, 10W, 15W, 25W
100v Tap Settings: 5W, 10W, 15W, 25W
