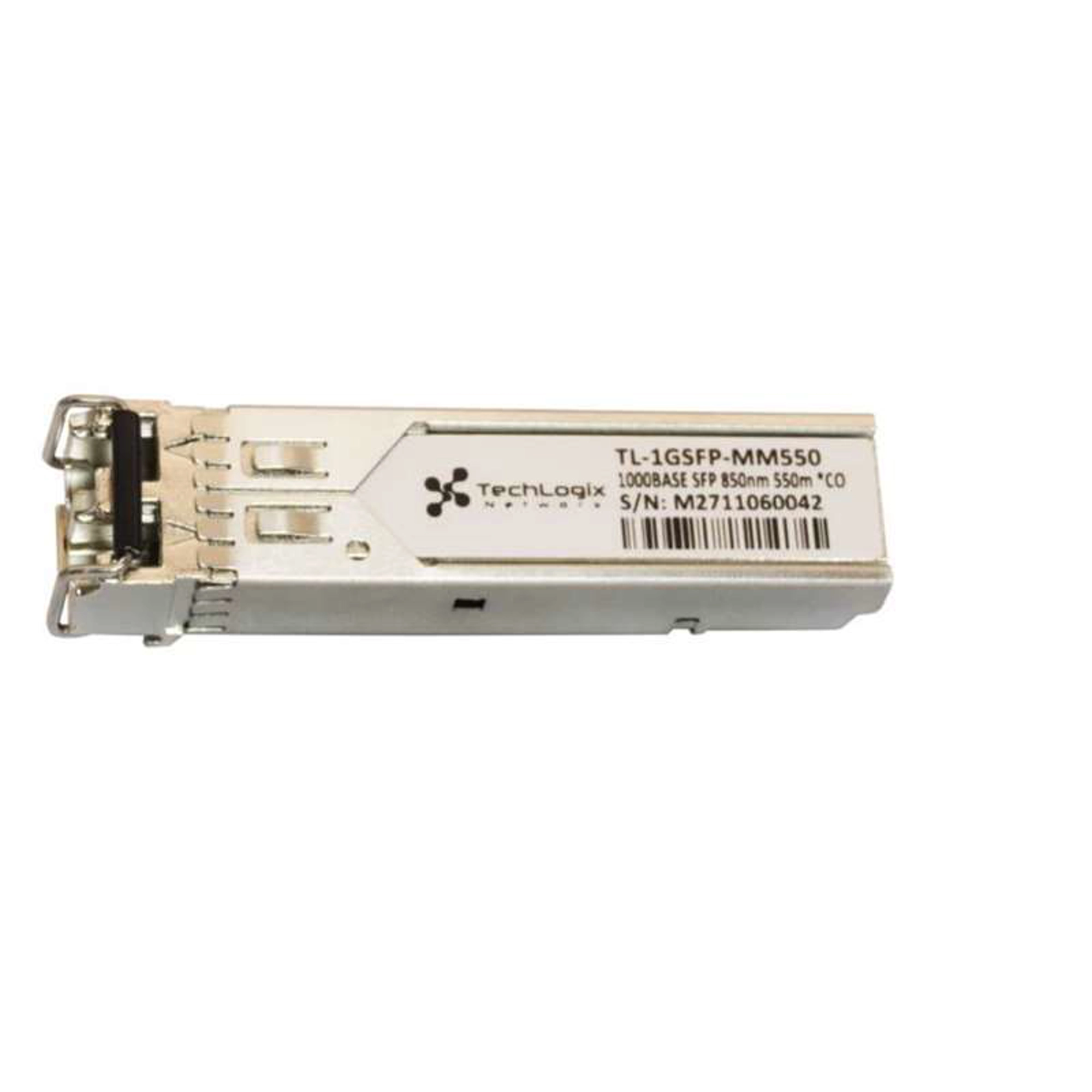

TechLogix TL-1GSFP-MM550

SKU: TLX-TL-1GSFP-MM550

MPN: TL-1GSFP-MM550

UPC: 816927021260

Description

1GBASE-SX SFP 850nm 550m DOM Transceiver -- Multimode Fiber

Add to Wishlist

Send to a friend!

Login in to See Pricing

Product Overview:

Techlogix 1G Multimode SFP Transceiver Module TL-1GSFP-MM550...

TechLogix SFP transceiver modules adapt TechLogix fiber technology to different cable formats.

The TL-1GSFP-MM550 transmits 1G signals up to550m (1805 ft) over duplex multimodefiber.

Key Features:

Compatible with TechLogix TL-FO-USB2-01 & TL-FO-USB3-01 extenders
Hot-pluggable SFP 20-pin connector
Single-mode fiber compatible
Duplex LC connectors
1000Mbps max data rate
550m/1805ft max cable distance over OM2
850nm wavelength

Specifications:

Form Type SFP
Max Data Rate 1000Mbps
Wavelength 850nm
Max Cable Distance 550m over OM2/3/4/5 MMF, 275m over OM1 MMF
Interface LC duplex
Optical Components VCSEL 850nm
Cable Type MMF
DOM Support Yes
TX Power -9.5 ~ - 3dBm
Receiver Sensitivity < -17dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols SFP MSA, IEEE 802.3z
