Simply45 S45-1505P
SKU: SIM-S45-1505P
MPN: S45-1505P
UPC: 810093721931
Description

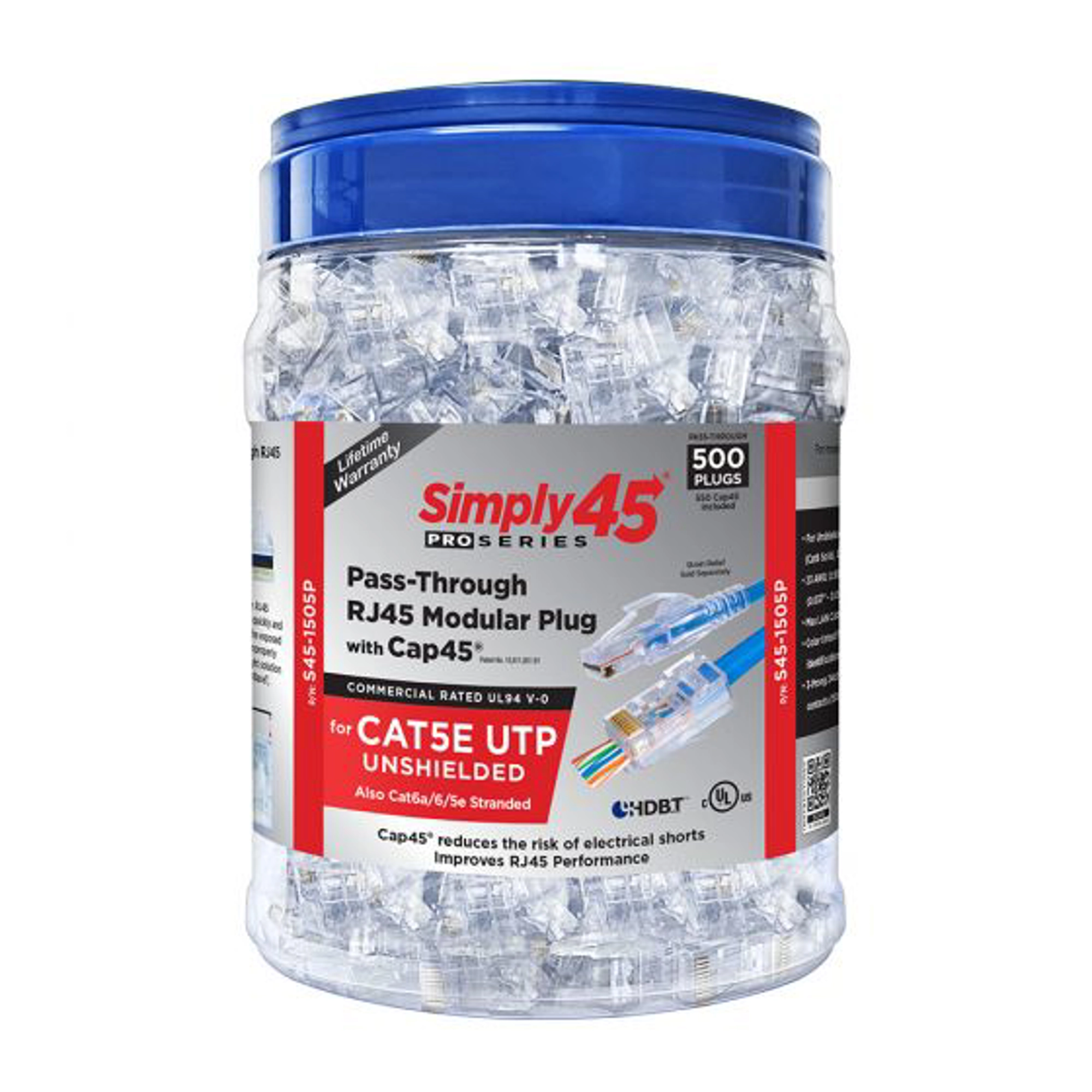

Simply45 PROSeries Unshielded Pass Through RJ45 Modular Plugs with CAP45™ for (Cat5e UTP) Solid 24AWG, (Cat5e/6) Stranded 28-26AWG, Wire Conductors 0.95 - 1.05mm/ 0.037" - 0.041", Max Cable OD 6.5mm/0.255", UL94 V0 Commercial Rated, Blue Tint - 500pcs/Jar
Send to a friend!
Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1600 is the same as our S45-1600P except is packaged in a convenient 50-piece plastic clamshell.
The Simply45® ProSeries introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely.
Cap45® is a MUST-HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Learn more about the Simply45® ProSeries innovations in our ProSeries Product Line section.
Our S45-1600 ProSeries pass-through RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1600 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea. Supports 10GBaseT performance applications over unshielded twisted pair cables.Cap45® (PATENT: 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45®, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45® in our ProSeries Product Line discussion. If you dont want to use Cap45®, no problem. It will not affect plug performance. You just wont have the Cap45® benefits.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1600 is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276). The S45-1600 also works great with stranded unshielded LAN cables such as those used on patch cords/leads. Our parts S45-1600 work with most stranded unshielded Cat5e and Cat6 LAN cables, but if your stranded LAN cable has a thicker outer jacket or larger cable OD commonly found on PUR jackets, then our S45-1700 may be the right solution for you.
Straight-Line Wire Insert. LAN cable wire conductors are easily inserted in a straight-line arrangement out through the front of the unshielded RJ45 pass-through modular plug. The S45-1600 accommodates 23-24 AWG Solid and 28-26 AWG stranded LAN cable wire conductor sizes 0.95mm 1.05mm (0.037 0.041). For larger UTP wire conductor sizes, please refer to our Staggered Hi/Lo wire alignment found on the Simply45® part S45-1700 or S45-1700P.
Improved Crosstalk Performance. The unique internal design of the S45-1600 pass-through RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1600 accommodates most Cat6 LAN cables. If your LAN cable has a larger wire conductor OD than the typical Cat6, we recommend using our part S45-1700 or S45-1700P pass-through RJ45 modular plugs.
Crimp Tool Compatibility. S45-C100 or S45-C101.
Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.
Color Tinted RJ45 Modular Plugs. The S45-1600 comes with a light Blue tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45® RJ45 modular plugs are color-coded for easy identification.
Wide Mouth Jar for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them. Most hands (unless you are Shrek) can easily reach the last plug inside of the jar.
Color-Coded Jar Caps. The S45-1600 jar cap is Blue matching the color tint of the RJ45 mod plug. This makes it very easy to find identify the items in your bag or kit. Saves time identifying the RJ45 modular plugs that you need to use.
cUL Listed. The S45-1600 pass-through RJ45 modular plugs are cUL Listed and bear the cUL Logo on the Simply45® packaging.
Only Simply45® provides the cUL Listed logo for quality and safety on pass-through RJ45 modular plugs. cUL is the strictest 3rd party verification service in the world and products bearing the cUL mark represent the highest quality and safety standards.
PoE/PoH Rated. The S45-1600 is ideal for PoE/PoH applications. The S45-1600 uses the correct 3-Prong Pin design; true 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper-made RJ45 that are out on the market.
Compliant with Industry Standards. ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC.
Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1600 is the same as our S45-1600P except is packaged in a convenient 50-piece plastic clamshell.
The Simply45® ProSeries introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely.
Cap45® is a MUST-HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Learn more about the Simply45® ProSeries innovations in our ProSeries Product Line section.
Our S45-1600 ProSeries pass-through RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1600 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea. Supports 10GBaseT performance applications over unshielded twisted pair cables.Cap45® (PATENT: 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45®, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45® in our ProSeries Product Line discussion. If you dont want to use Cap45®, no problem. It will not affect plug performance. You just wont have the Cap45® benefits.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.
Solid and Stranded LAN Cables. The S45-1600 is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276). The S45-1600 also works great with stranded unshielded LAN cables such as those used on patch cords/leads. Our parts S45-1600 work with most stranded unshielded Cat5e and Cat6 LAN cables, but if your stranded LAN cable has a thicker outer jacket or larger cable OD commonly found on PUR jackets, then our S45-1700 may be the right solution for you.
Straight-Line Wire Insert. LAN cable wire conductors are easily inserted in a straight-line arrangement out through the front of the unshielded RJ45 pass-through modular plug. The S45-1600 accommodates 23-24 AWG Solid and 28-26 AWG stranded LAN cable wire conductor sizes 0.95mm 1.05mm (0.037 0.041). For larger UTP wire conductor sizes, please refer to our Staggered Hi/Lo wire alignment found on the Simply45® part S45-1700 or S45-1700P.
Improved Crosstalk Performance. The unique internal design of the S45-1600 pass-through RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance. The S45-1600 accommodates most Cat6 LAN cables. If your LAN cable has a larger wire conductor OD than the typical Cat6, we recommend using our part S45-1700 or S45-1700P pass-through RJ45 modular plugs.
Crimp Tool Compatibility. S45-C100 or S45-C101.
Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.
Color Tinted RJ45 Modular Plugs. The S45-1600 comes with a light Blue tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. All Simply45® RJ45 modular plugs are color-coded for easy identification.
Wide Mouth Jar for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them. Most hands (unless you are Shrek) can easily reach the last plug inside of the jar.
Color-Coded Jar Caps. The S45-1600 jar cap is Blue matching the color tint of the RJ45 mod plug. This makes it very easy to find identify the items in your bag or kit. Saves time identifying the RJ45 modular plugs that you need to use.
cUL Listed. The S45-1600 pass-through RJ45 modular plugs are cUL Listed and bear the cUL Logo on the Simply45® packaging.
Only Simply45® provides the cUL Listed logo for quality and safety on pass-through RJ45 modular plugs. cUL is the strictest 3rd party verification service in the world and products bearing the cUL mark represent the highest quality and safety standards.
PoE/PoH Rated. The S45-1600 is ideal for PoE/PoH applications. The S45-1600 uses the correct 3-Prong Pin design; true 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper-made RJ45 that are out on the market.
Compliant with Industry Standards. ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC.
| SKU | S45-1505P |
|---|---|
| Manufacturer | GoSimply Connect |
| Wire Type | 24 AWG, 28-26 AWG, CAT 5e |
| Connector Type | RJ-45 |
-
