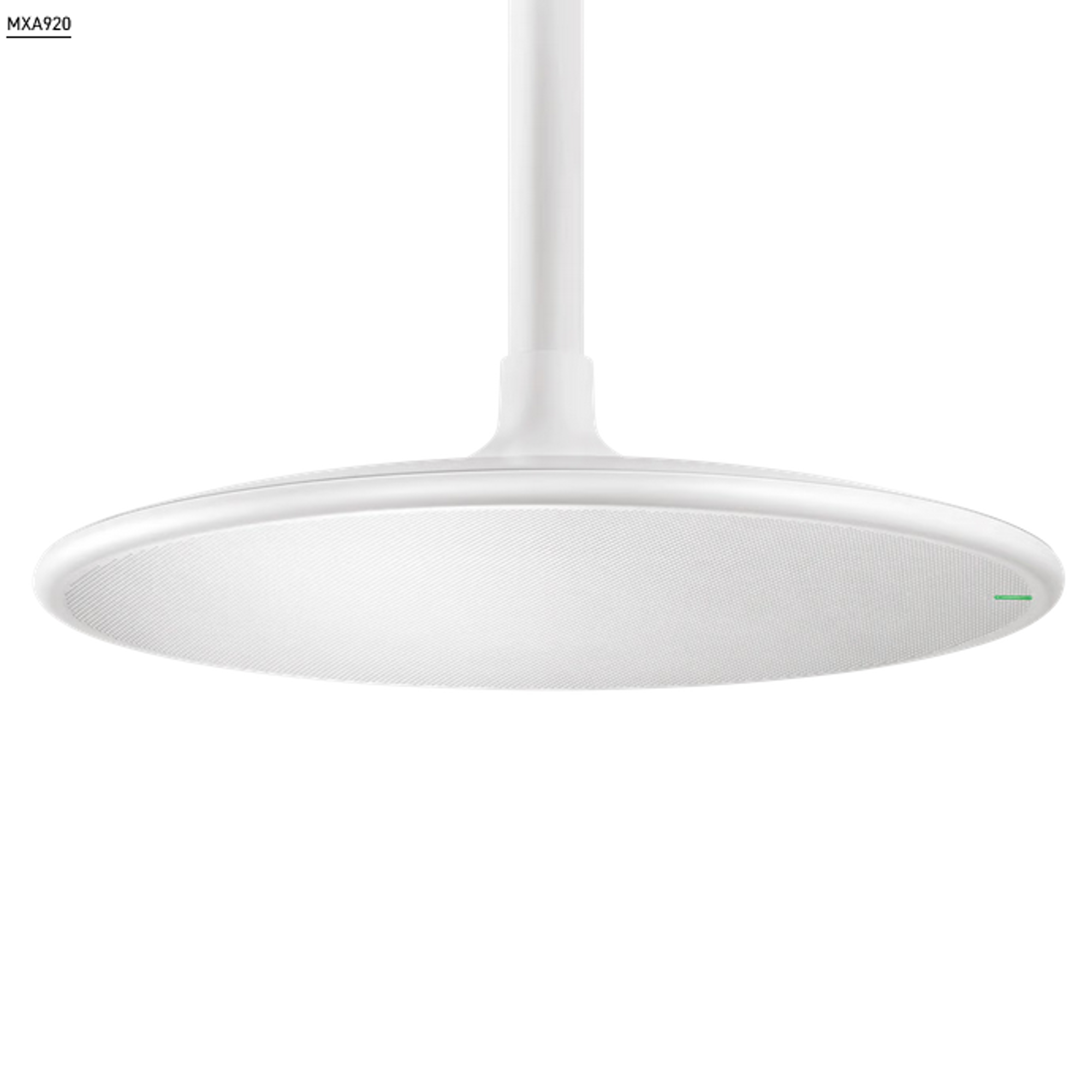

Shure MXA920 Round (white)

Ceiling Array Microphone

MXA920

Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.

Automatic Coverage^TM technology captures talkers in up to 8 adjustable coverage areas that you define without the need to aim pickup lobes.

Virtual Acoustic Boundary ensures that voices or noises outside of defined automatic coverage areas will not be heard.

You can also turn Automatic Coverage technology off and use Steerable CoverageTM technology to precisely aim 8 pickup lobes with individual audio outputs to feed separate loudspeaker zones for voice lift applications.

Onboard IntelliMix® DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.

• Next generation array architecture delivers enhanced low frequency directionality and the most natural speech quality
• Optimize Tracking feature streamlines setup and greatly improves talker location accuracy when using multiple MXA920 microphones in larger spaces
• Precise coverage control provides exceptional isolation between microphone lobes and loudspeakers, guaranteeing the maximum sound level possible in voice lift and sound reinforcement applications
• In larger spaces, Designer system configuration software helps you configure MXA920s with other Microflex Ecosystem devices
• Choose Teams-certified bundles with the ANIUSB-MATRIX, P300-IMX, or IntelliMix Room DSP and MXN5C networked loudspeaker

• Square and round form factors meet the architectural needs of todays meeting spaces
• White, black, and aluminum finishes to complement your interior design; all paintable for custom needs
• Certified for use with Microsoft Teams and compatible with popular collaboration tools
• Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable
• Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
• LED status bar with configurable colors and brightness
• Command strings enable seamless integration with third-party camera and room control systems
