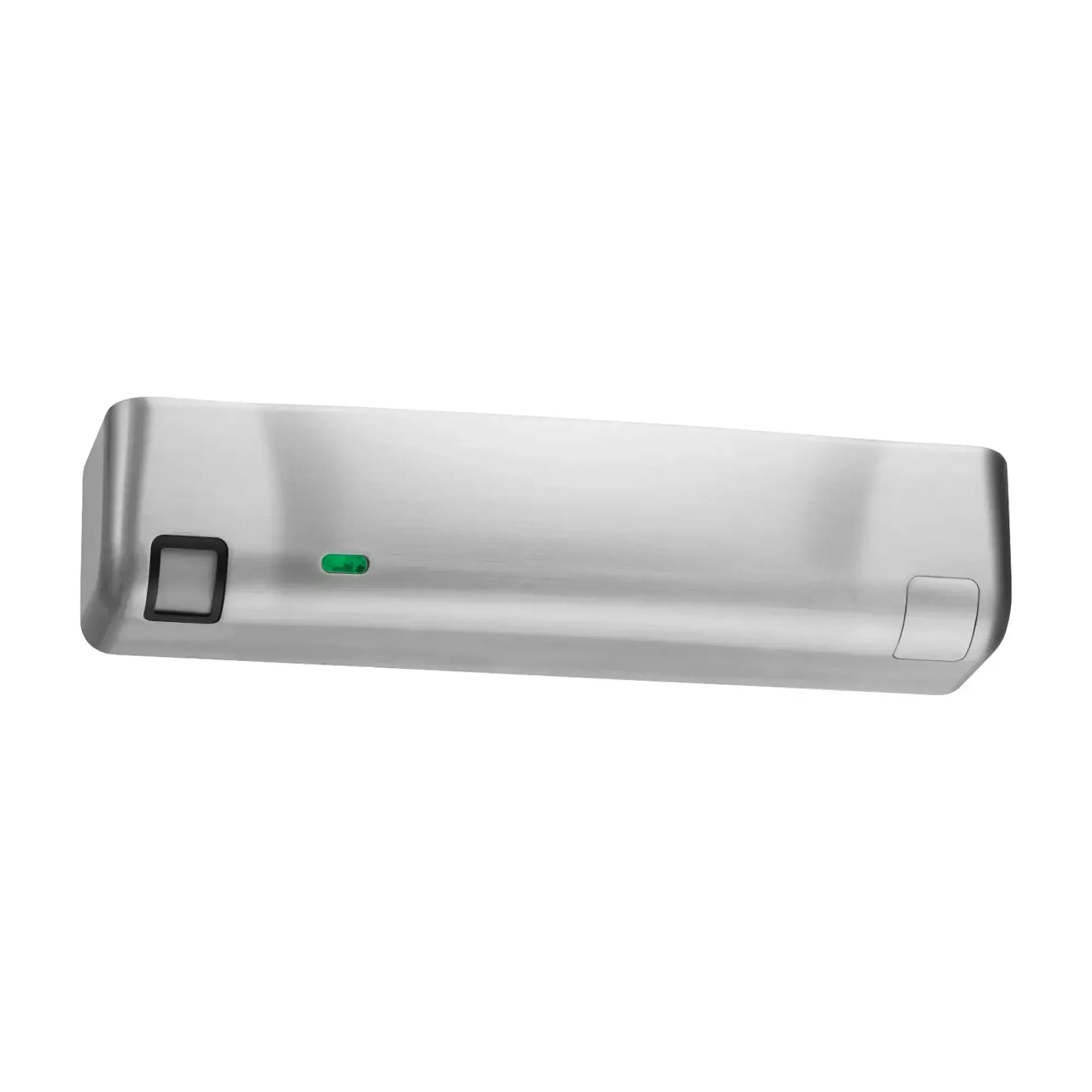

Securitron M380EBD-628

M380E Magnalock® 628 Satin aluminum, clear anodized

Intelligent, stylish and secure, with up to 80% reduction in energy consumption over the previous M380 Series.

With integrated features such as built-in smart voltage sensing, tamper sensor and an updated strike plate mounting template, the M380E joins the M680E in the family of sustainable magnalocks. The M380EBD and M380EBDX models offer additional integrations, such as Securitrons patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods), and a passive infrared request to exit (PIR REX).

• Sustainability documentation
• Energy efficient, low power usage
• Automatic dual-voltage no field adjustment required
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Available integrated BondSTAT and Door Position Switch
• Autosensing dual voltage with microprocessor technology
• Rust resistant all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
• Wire chamber anti-tamper switch
• Size optimized for use with door closers
