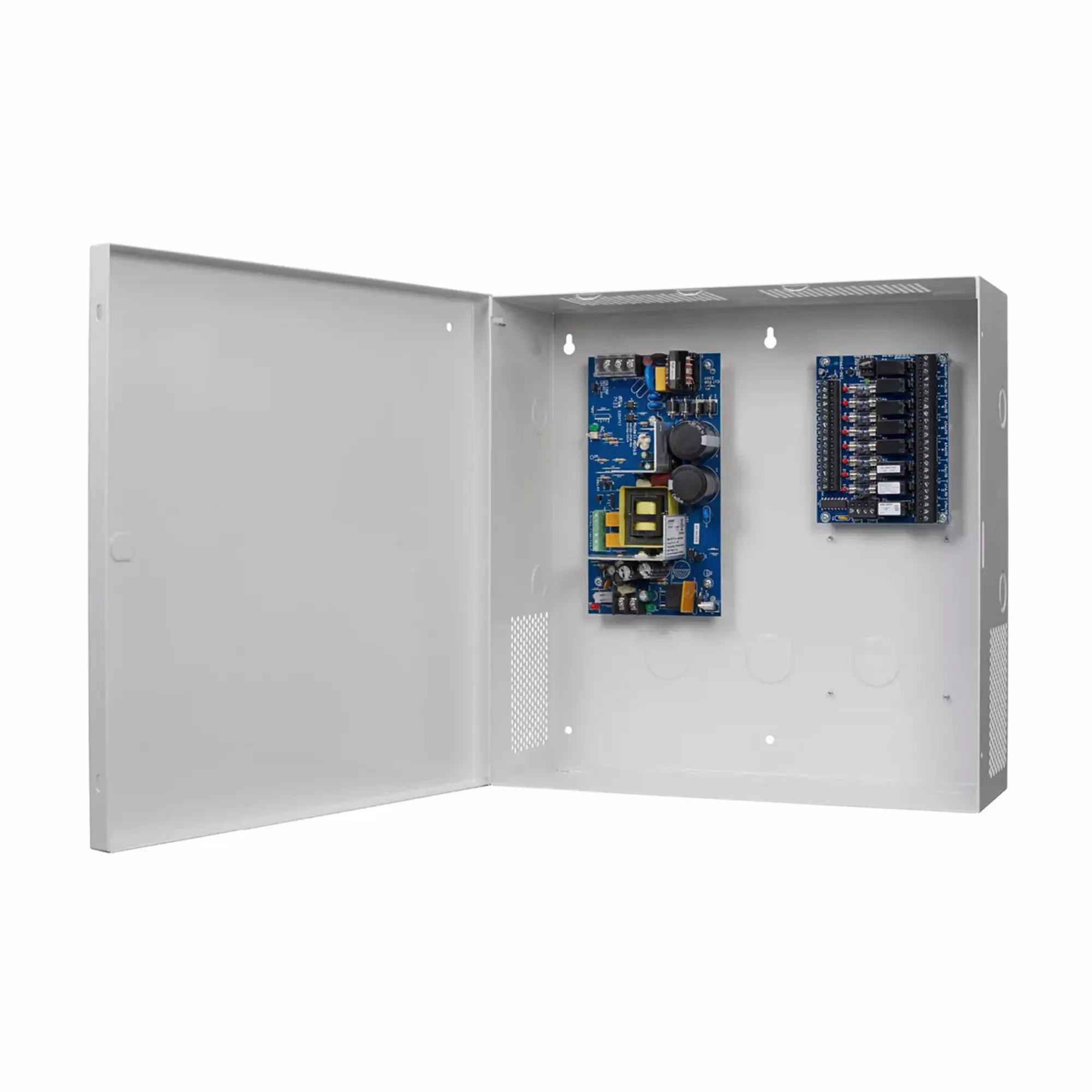

Securitron AQD6-8C8R2

AQD6 Series Switching Power Supply

AQD6 Series are dual voltage, UL listed, supervised units.

Number of Outputs:

8

Number of Relays:

8

Fire Alarm Interface:

Yes

Fuse Type:

PTC polyswitch

Fuse Rating [Amp]:

2

The Securitron AQD6 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 6 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

• All combinations of AQ power supplies and distribution boards are UL listed
• Dual voltage 12 or 24 VDC field selectable continuous output
• Up to 91% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
• Tolerates brownout or overvoltage input ± 15% of nominal voltage
• Thermal shutdown protection with auto restart
• Circuit breaker protects against overcurrent and reverse battery faults
• Dedicated battery charging circuit prevents overvoltage on locking devices
• Low battery cutoff at 9V at 12V or 18V at 24V
• Available with a single relay fire trigger or individually triggered relayed outputs
