Seco-Larm SD-9163-KSQ

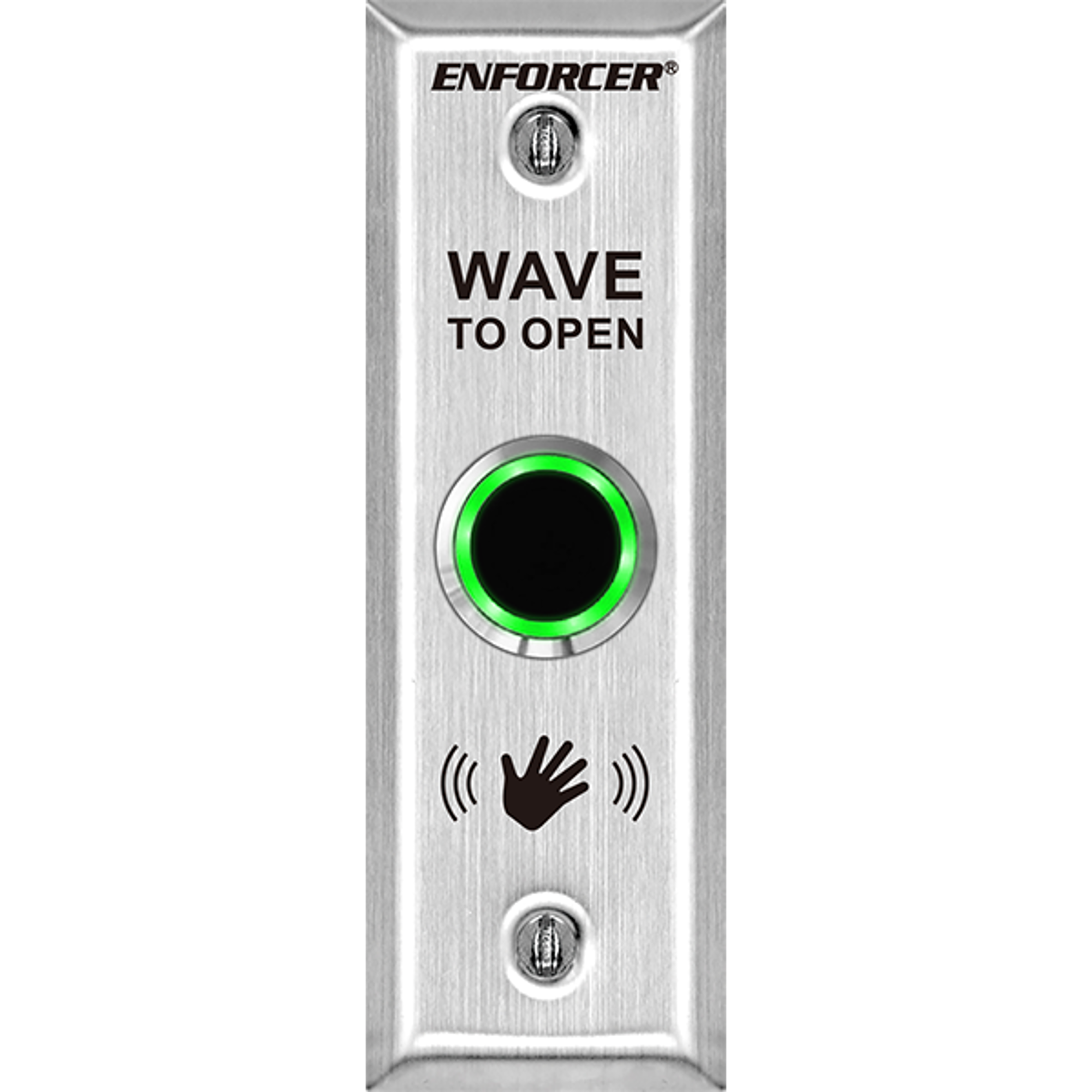

Outdoor Wave-to-Open Sensor

SD-9163-KSQ

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate using IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

• ETL, Conforms to UL Std. 294
• Adjustable sensor range up to 7 (18cm)
• 1.2A relay, adjustable trigger duration 0.5~30 seconds or toggle
• LED illuminated sensors are for easy identification
• Selectable LED colors turn from red to green (or green to red) when the sensor is activated
• Stainless steel plate
• IP65 Weather-resistant for outdoor use
• Power must be provided by low-voltage power-limited/Class 2 power supply
• Use only low-voltage field wiring and do not exceed 98.5 ft (30m) activated

• Cutsheet
