Seco-Larm SD-7103GC-PEQ

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: SEC-SD-7103GC-PEQ

MPN: SD-7103GC-PEQ

Description

REX BUTTON MULLION ILLUMINATED

Send to a friend!

ETL, Conforms to UL Std. 294

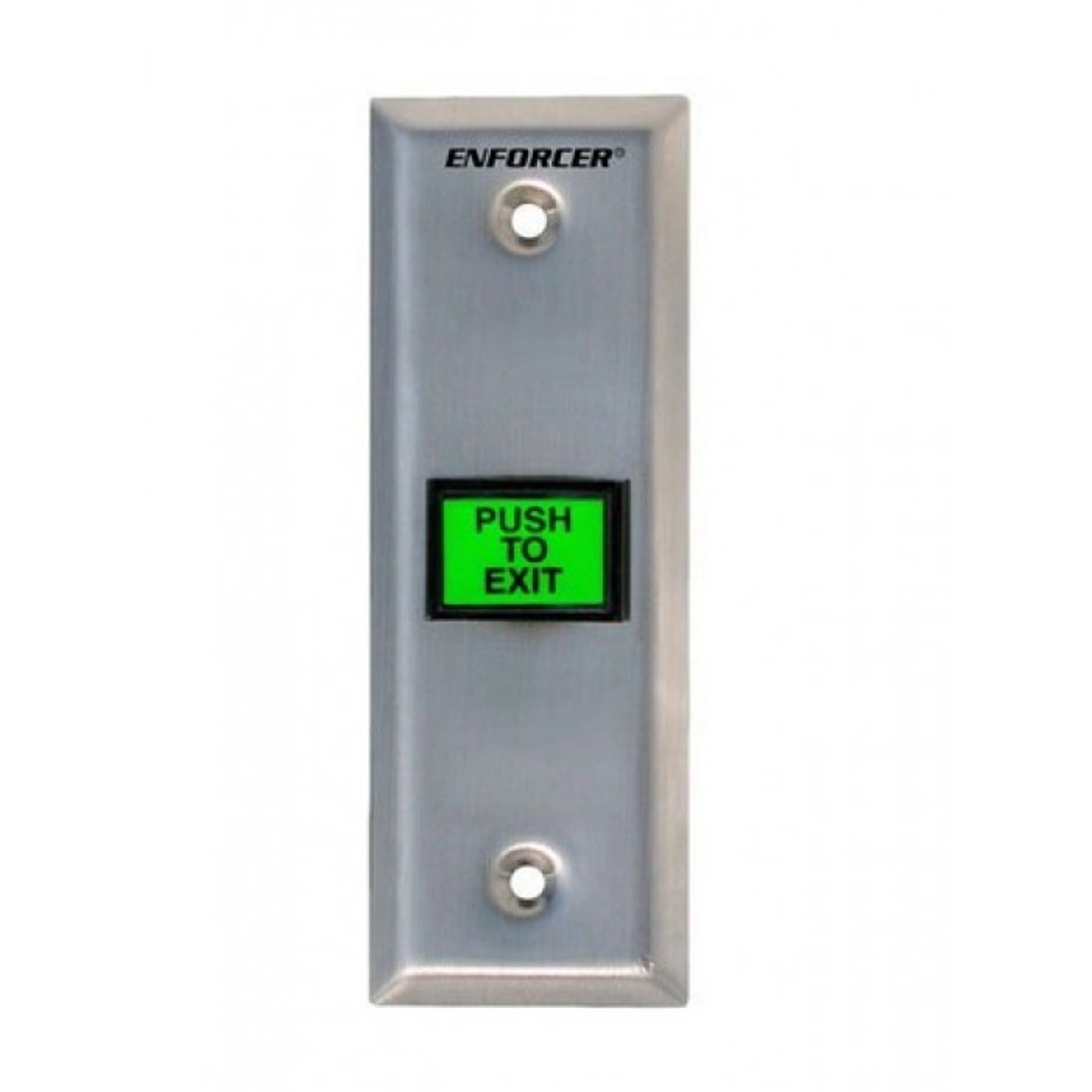

Square illuminated push button with caption PUSH TO EXIT"
Message language can be easily changed in the field to Spanish or French
CE and UL approved switch is rubber-sealed to prevent liquid penetration
Includes stainless-steel slimline plate
Includes six colored 12-inch wire leads with easyto-attach spade lugs for fast installation
Long-life green LED 12/24 VAC/VDC (~35,000hr)
Weather resistant when properly installed
Momentary switch, DPST, NO/NC contacts rated 5A@24VAC max.
UL 294 Access control levels
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

Brand Name	Seco-Larm
Manufacturer Part Number	SD-7103GC-PEQ
Item Description	Illuminated RTE Plate - Slimline
Contact Rating	NO/NC contacts rated 5A@24VAC
Material	Stainless-steel
Dimensions	4-1/2"x1-1/2?x1-15/16? (114x38x49mm)
Category	Access
