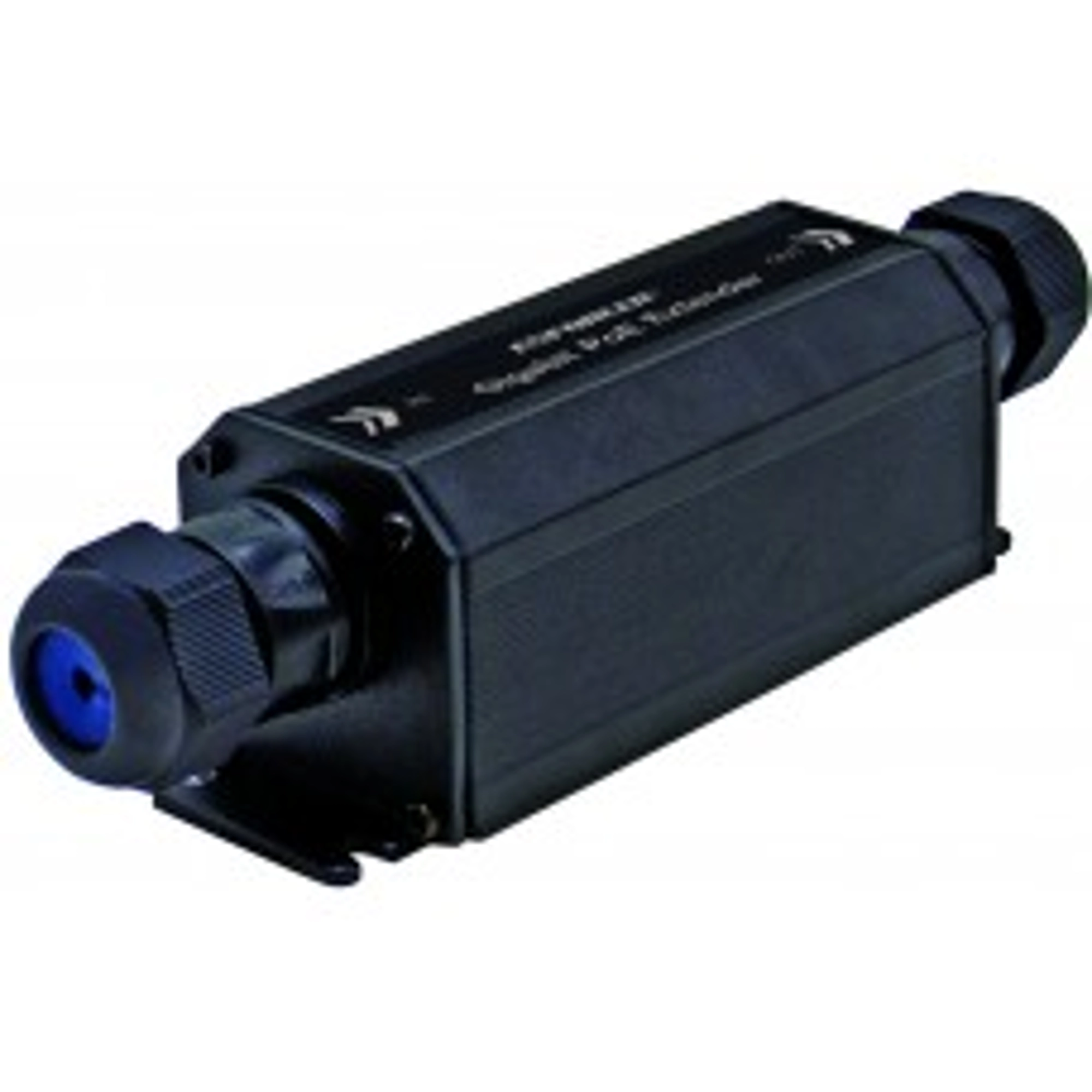

Seco-Larm NR-P101E-TQ
SKU: SEC-NR-P101E-TQ
MPN: NR-P101E-TQ
Description
OUTDOOR GIGABIT POE EXTENDER
Send to a friend!
SKU: SEC-NR-P101E-TQ
MPN: NR-P101E-TQ
OUTDOOR GIGABIT POE EXTENDER
Send to a friend!
| Brand Name | Seco-Larm |
| Manufacturer Part Number | NR-P101E-TQ |
| Item Description | 1-Input to 1-Output Gigabit PoE+ Extender, Weather-Resistant |
| Connections | PoE In: 1x Weather-resistant RJ45 |
| PoE Out: 1x Weather-resistant RJ45 | Transmission range 656ft (200m) |
| Power Input: 15W, Power Output: 11.1W | Power Input: 30W, Power Output: 19W |
| Transmission range 948ft (300m) | Power Input: 15W, Power Output: 6.8W |
| Power Input: 30W, Power Output: 15W | Data link |
| Both pin 1/2, 3/6 and 4/5, 7/8 | Power link |
| Pin 1/2(+), 3/6() up to 25W | Network cables |
| Weather-resistant Cat5e or higher | Ethernet speed |
| 10/100/1000 Mbps half/full duplex | PoE standard |
| IEEE 802.3af, | IEEE 802.3at, |
| IEEE 802.3bt | (4 pairs, 90W) |
| IP Rating | IP66 (with weather-resistant UTP cable) |
| Operating humidity | 90% (maximum, non-condensing) |
| Operating temperature | -13°~101° F (-25°~55° C) |
| Dimensions (including endcaps) | 7-1/4?x1-3/4?x1-3/4?(185x45x45 mm) |
| Weight | 8-oz (227g) |
| UNSPSC Code | 43222600 |
