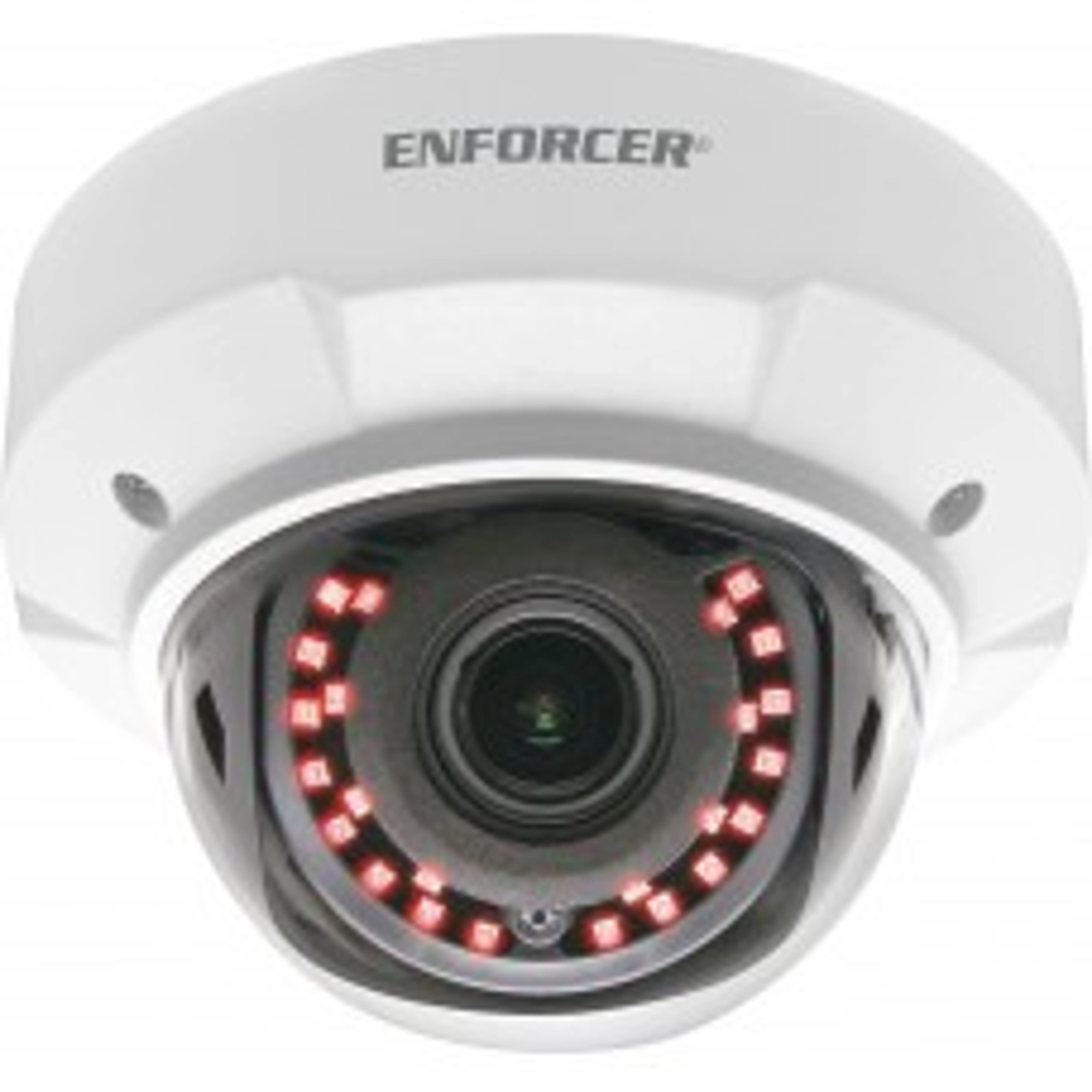

Seco-Larm EV-Y2501-AMWAQ
SKU: SEC-EV-Y2501-AMWAQ
MPN: EV-Y2501-AMWAQ
Description
HD 5MP OUTDOOR VANDEL DOME 2.8-12MM VF 12VDC WHITE
Send to a friend!
SKU: SEC-EV-Y2501-AMWAQ
MPN: EV-Y2501-AMWAQ
HD 5MP OUTDOOR VANDEL DOME 2.8-12MM VF 12VDC WHITE
Send to a friend!
| Brand Name | Seco-Larm |
| Manufacturer Part Number | EV-Y2501-AMWAQ |
| Item Description | 4-in-1 HD TVI, CVI, AHD, Analog Vandal Dome Camera |
| Housing color | White |
| Formats | TVI (Default) / CVI / AHD / Analog |
| CMOS | 1/2.7? 5MP CMOS |
| Resolution (HD) | 25921944 |
| 3DNR | No |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 2.8~12mm ICR |
| Viewing Angle | 38°~138° |
| # of IR LEDs | 24 (SMT) |
| IR Range | Up to 98ft (30m) |
| FPS | 20FPS |
| F Stop | 2.0 |
| Minimum illumination IR On | 0Lux |
| Minimum illumination IR Off | 0.05Lux |
| S/N Ratio | 35dB |
| Shutter control | Auto |
| Gain control | Auto |
| Operating voltage | 12VDC |
| Current Draw IR On | 320mA |
| Current Draw IR Off | 80mA |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | 5-13/16?x4-5/8? (147117 mm) |
| Weight | 2-lb 6-oz (1067g) |
| Form Factor | Dome |
| Signal Process | Analog |
| UNSPSC Code | 46171610 |
| Category | CCTV |
