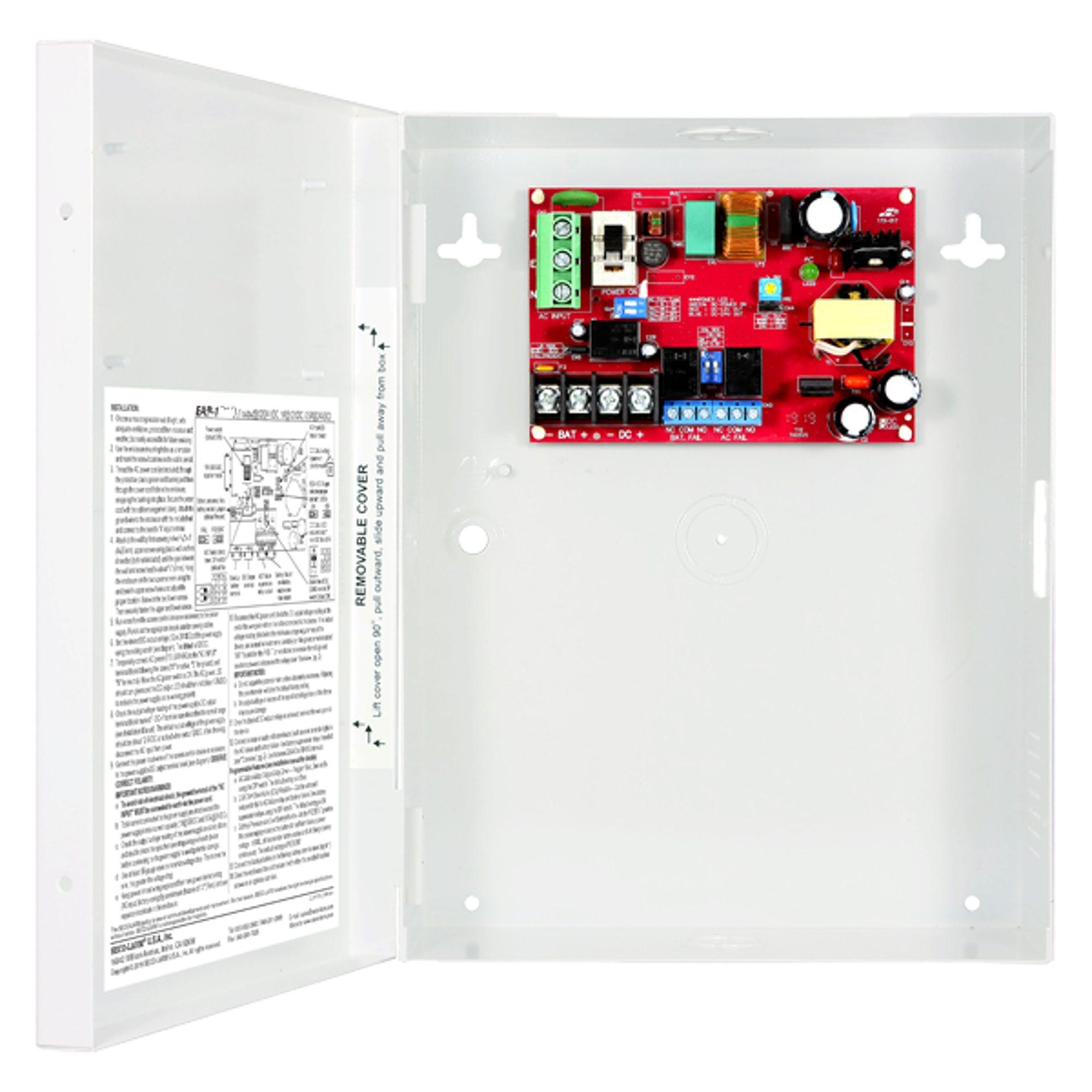

EAP-1D1Q

Access Control Power Supply, 1 Output, 1A Total

• Input 110~240 VAC, fused at 3.15A
• Filtered and electronically regulated output
• AC Input and DC output LED status indicators
• Adjustable output voltage to compensate for voltage drop
• AC power failure supervision relay
• Overcurrent fuse-protected AC input
• Automatic shutdown for overcurrent / short-circuit protection
• 12/24 VDC Outputs, field selectable
• Battery failure / low battery supervision relay
• Built-in back-up battery charger (Batteries not included)
• Automatically switch to backup battery if AC fails
• Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
• Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch

Enclosure

• Heavy-duty steel case with removable cover for easy access to connections
• Ventilation holes to prevent heat buildup
• Room for one 7Ah battery or two 4AH batteries (Batteries not included)
• Knockouts for power connections and optional cam lock
• Dimensions: 7³/₄ x10¹/₁₆x3⁹/₁₆ (197x255x91 mm)

Weight4-lb 1.8-oz (1866g)Dimensions7-3/4x10-1/16x3-9/16 (197x255x91 mm)Input Voltage110~240VACOutput Voltage12 or 24VDC selectable via DIP switchAdjustable Output Voltage Range12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switchNumber of Outputs1Total Supply Current1A@12/24 VDCInput Fuse Rating3.15A ( glass fuse, AC)LED Status IndicatorAC input (Green), 12VDC Output (Red), 24VDC Output (Blue)End-of-Line Resistor (EOL)Selectable ON (2.2k3) or OFF, 3A@24VDC dry relay output
