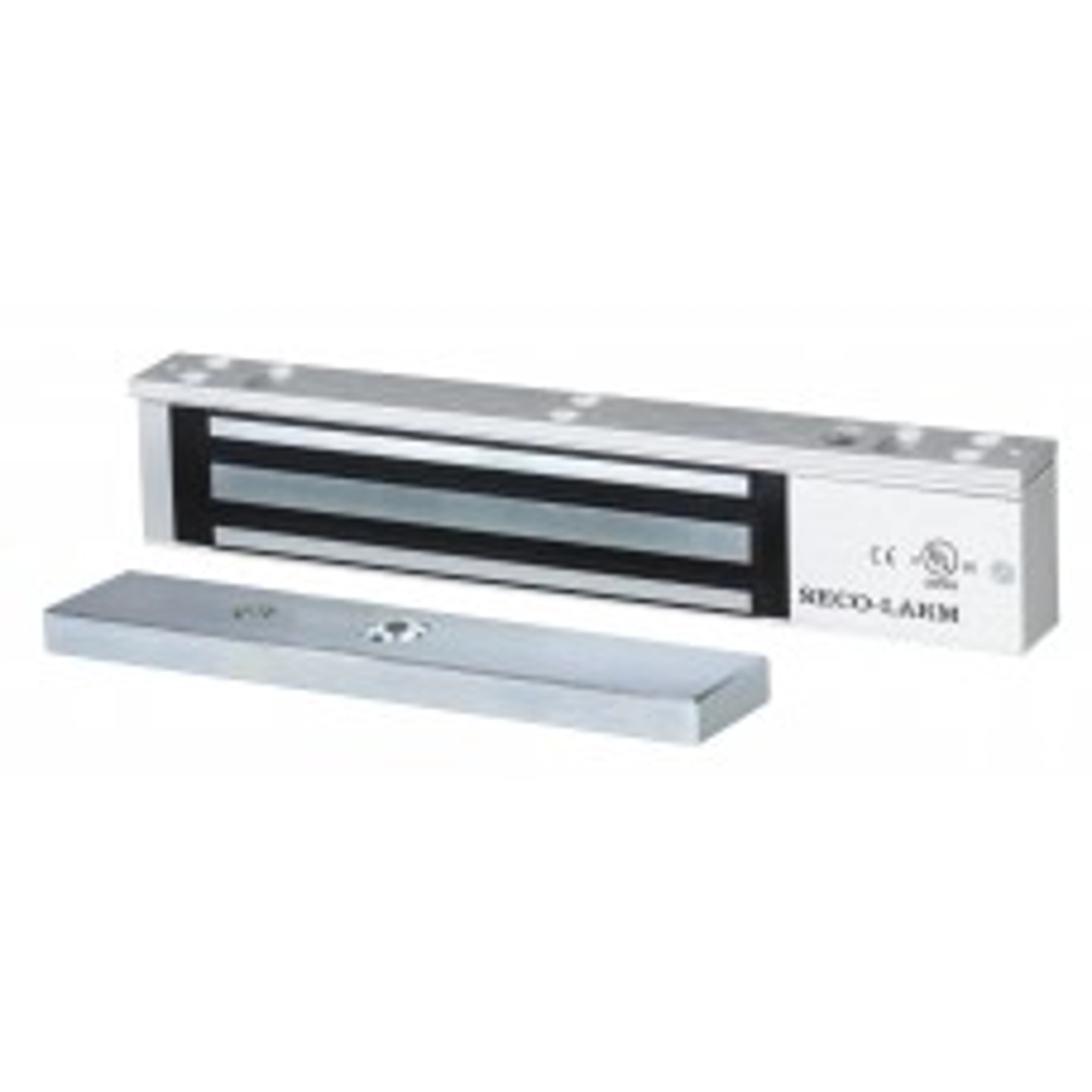

Seco-Larm E-941SA-600
SKU: SEC-E-941SA-600
MPN: E-941SA-600
Description
600LB MAG LOCK
Send to a friend!
SKU: SEC-E-941SA-600
MPN: E-941SA-600
600LB MAG LOCK
Send to a friend!
| Brand Name | Seco-Larm |
| Manufacturer Part Number | E-941SA-600 |
| Item Description | 600-lb Electromagnetic Lock, UL Listed |
| Operating voltage | 12/24 VDC (selectable) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| Door thickness (max.) | 2? (50mm) |
| Holding force | 600-lb (272kg) |
| Dimensions Magnet | 9-13/16?x1-11/16?x1? (250x43x25 mm) |
| Dimensions Armature Plate | 7-1/4?x1-1/2?x1/2? (185x38x12 mm) |
| Operating humidity | 0~85 (non-condensing) |
| Operating temperature | 32°~120° F (0°~49° C) |
| Lock surface temperature | ? Ambient temperature ± 68° F (20° C) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
| Weight | 4-lb 6-oz (2kg) |
| Category | Access |
