SCP LUT-GREEN-P

SKU: SCP-LUT-GREEN-P

MPN: LUT-GREEN-P

Description

Lutron Plenum Control Cable 22/2 Shielded + 18/2 with Drain UL 1000' Spool White with Green Stripe

Add to Wishlist

Send to a friend!

Lutron Plenum Control Cable 22/2 + 18/2 with Drain 1000' Box

LUT-GREEN-P

SCPs LUT-GREEN cable is for use with Lutron* Grafix Eye Systems for specialty lighting and window shade systems. The SCP LUT-GREEN is comparable to the Lutron* GRX-CBL-346S. The SCP LUT-GREEN is also a universal control system cable that can be used on various other Brand systems such as AMX® and Crestron®. Also can be used for systems control and instrumentation.

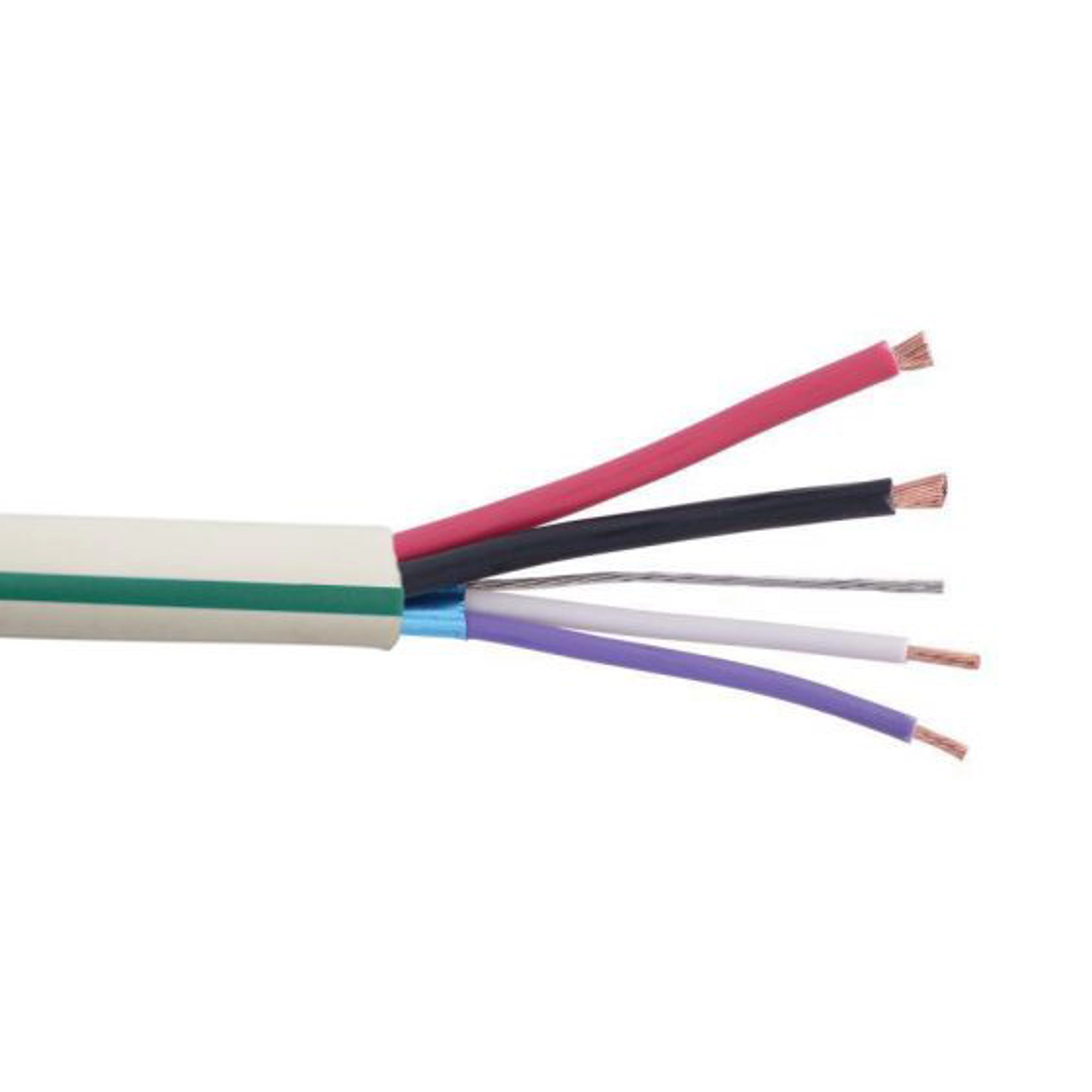

This cable consists of 2 conductors 22 AWG insulated stranded bare copper, twisted pair, shielded with overall AL foil- low capacitance plus a 2 conductor 18 AWG insulated stranded bare copper, twisted pair, unshielded, and a TC drain with an overall PLENUM jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
UL listed, NEC: CMP rated, CEC: CMG FT6, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray.
This cable is also compatible with the AMX AXLink™ Systems.
*Lutron®, Homeworks®, Sivoia®, Grafik Eye®, and Quantum Systems® are registered trademarks of Lutron Electronics Co., Inc. Structured Cable Products Inc. is not affiliated with Lutron, and our products are not endorsed or certified by Lutron.

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables, which are available in PVC-rated CM, PLENUM CMP, and Low Smoke Zero Halogen (LSZH/LSOH) for commercial, marine, and institutional applications.
