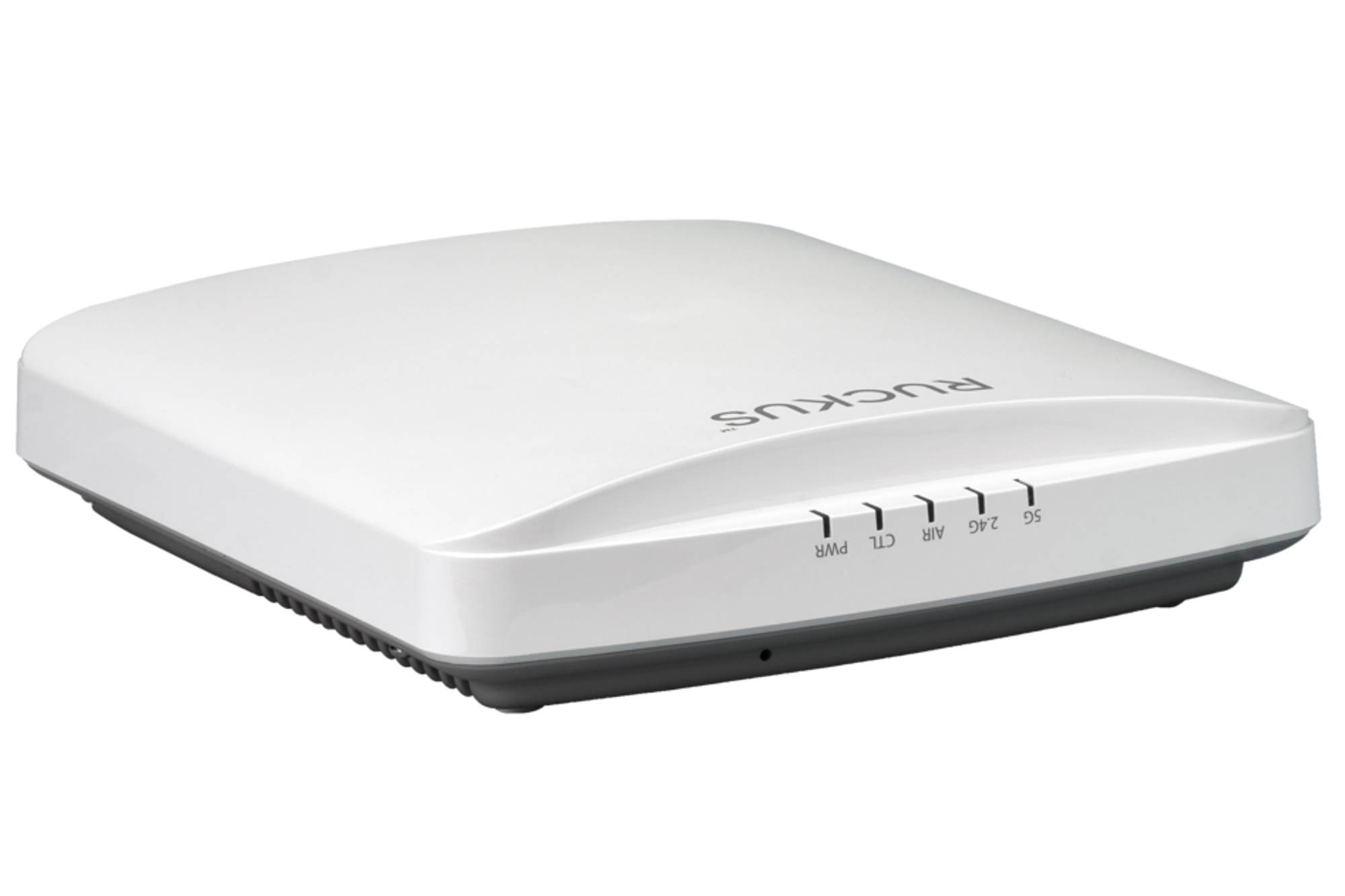

Ruckus Networks R650

Indoor Access Point

R650

High Performance Wi-Fi 6 4x4:4 Indoor Access Point with 3 Gbps max rate and Embedded IoT

Installer's Note: Ruckus Networks highly recommends including a minimum of 1-Year WatchDog Service Support per Unleashed AP purchased.

Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.

The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

The R650 has built-in IoT radios with onboard Bluetooth^® Low Energy and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.

• Stunning Wi-Fi Performance - Mitigate interference and extend coverage with patented BeamFlex+^™ adaptive antenna technology utilizing several directional antenna patterns
• Serve More Devices - Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
• Converged Access Point - Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in Bluetooth^® Low Energy and Zigbee, and also expanding to any future wireless technologies
• Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
• Multiple Management Options - Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller
• Better Mesh Networking - Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
• More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics
