Rosslare ME-1515

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: ROS-ME-1515-U

MPN: ME-1515-U

Description

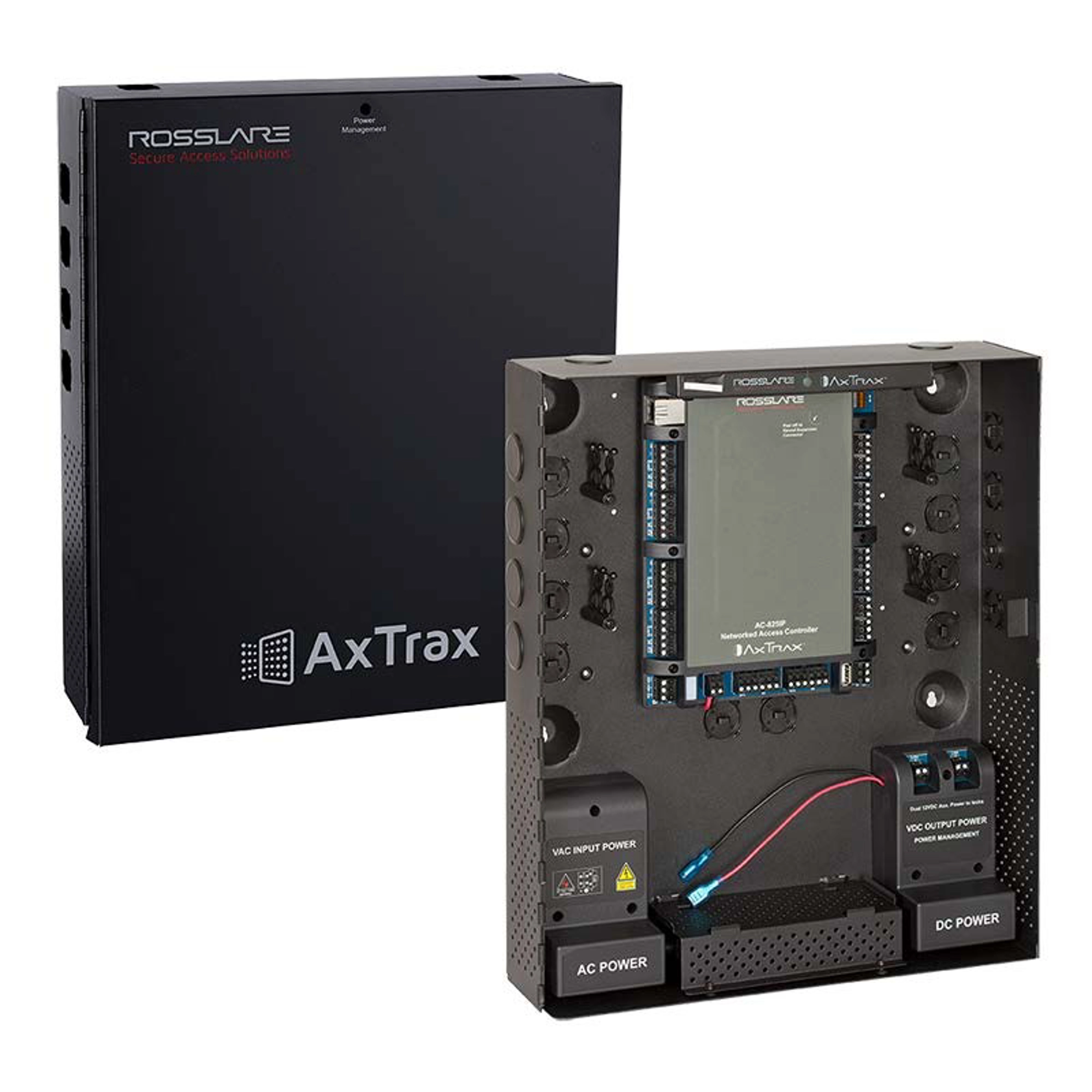

Power Management Enclosure for AC-825IP Series Access Control Panels

Send to a friend!

Global input voltage – 100 to 240 VAC, 1.6 A,50/60Hz auto select.
• Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
• Built-in power event generation to let the control panels receive power supply and UPS events.
• Built-in Rosslare LightBar™ for lighting the way during maintenance and installation.
• Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
• Silk screen of all the connections on inside of door.
• Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
• Supplied with removable terminal blocks and special key for ease of installation.
