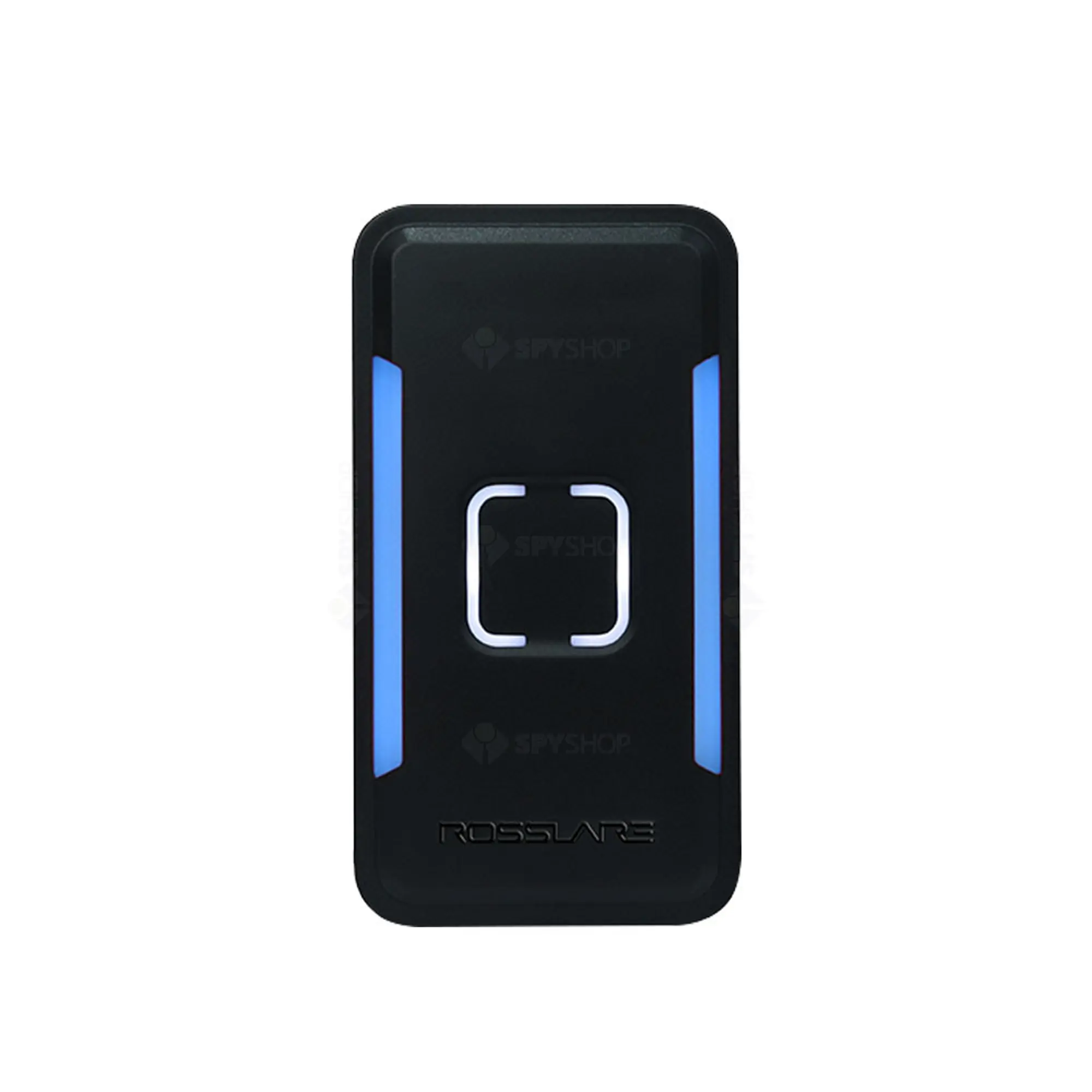

Rosslare AY-K35

Multi-Smart Reader

AY-K35

The AY-K35 is justly called the Multi-Smart reader! It features multi-technology and OSDP secure channel communication to bring more versatility, scalability and security to physical access control without the need to replace existing credentials.

The reader is now more protected than ever. It is dust and water resistant, including vandal proof and anti-microbial properties to reduce the risk of contamination while increasing physical access control security.

AY-K35 supports NFC and BLE mobile credentials, for better user convenience, in addition to 125 kHz FSK and ASK, 13.56 MHz and MIFARE Classic^® Sector credentials. With AY-K35, organizations of all sizes can easily optimize their credentials strategy to accommodate users on an individual profile level reducing operational costs without compromising on security or functionality.

• AY-K35 125Khz + 13.56 MHz + 2.4GHz
• AY-K35 Wiegand, OSDP V1 and V2, C&D

• OSDP V2 - OSDP Secure channel enhanced by AES 128 encryption
• Bluetooth and NFC mobile identity for iOS and Android credentials using Rosslare BLE-ID app or SDK
• Easy migration of technologies: CSN credentials 125 kHz, 13.56 MHz and MIFARE® Sector Read, Bluetooth® and NFC
• Water resistance with an IP68 rating
• Vandal-proof resistance with an IK09 rating
• Antimicrobial technology reduces level of microbes by up to 99.8%
• Sleek and modern mini-mullion design
• One touch button with LED backlight for general purpose usage
• BLE-Admin mobile app for a quick installation, intuitive configuration and management

• Cutsheet
