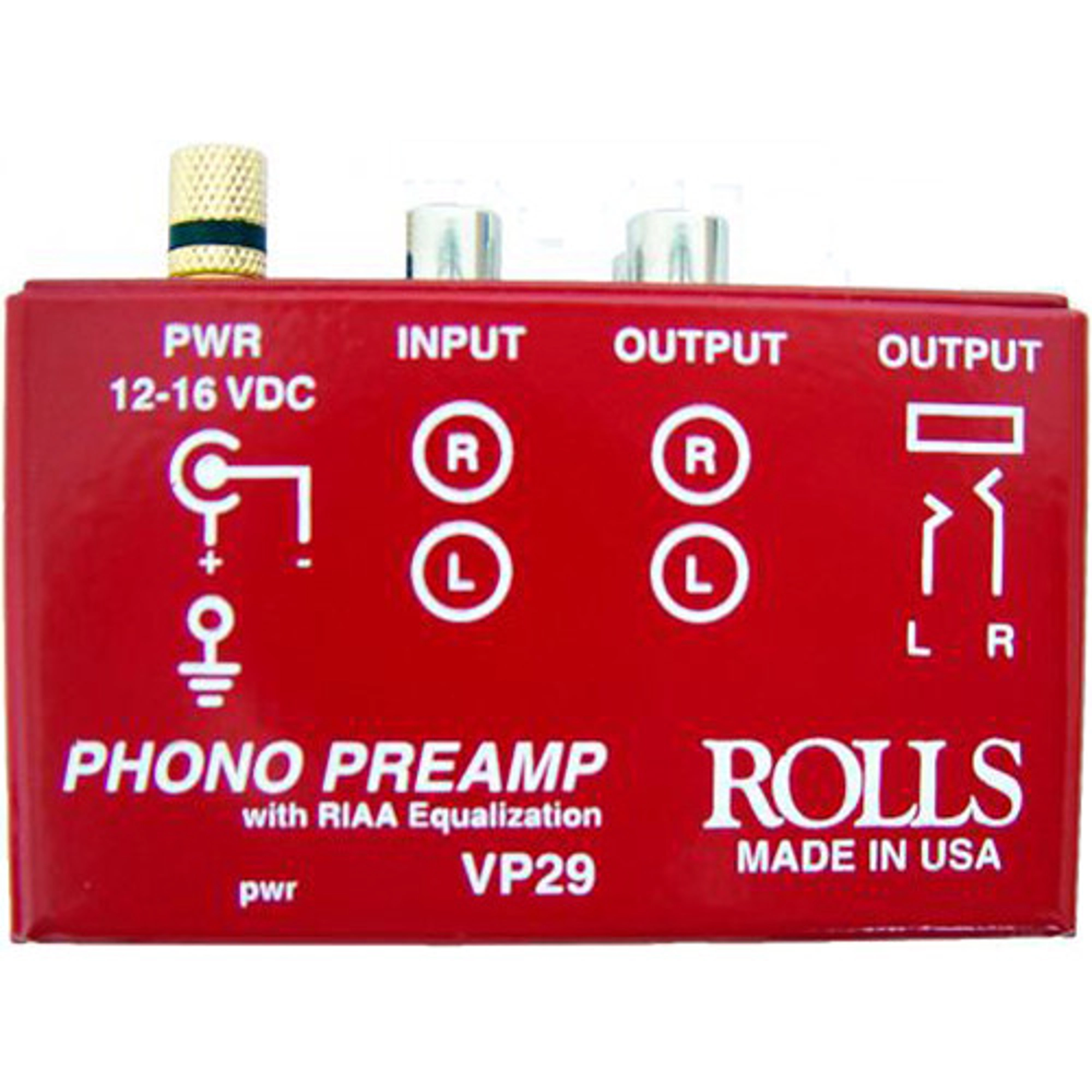

Rolls VP29

Phono Preamp

VP29

Welcome to the world of VP29, a brilliant phono preamplifier meticulously crafted to deliver an unparalleled audio experience. Our expertly designed circuitry ensures not only the precise RIAA equalization curve but also guarantees smooth and whisper-quiet operation. Immerse yourself in the purest sounds of your favorite vinyl records with VP29.

• Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
• Input Capacitance: 120pf
• Sensitivity: 5mV for 635mV output
• Input Impedance: 47k Ohms
• Frequency Response: / - .5 dB 20 Hz - 20 kHz (Conforms to RIAA Equalization Curve)
• PWR: 9 - 15 VDC
• THD .01% @ 1 kHz
• S/N Ratio: >83 dB unweighted
• Output Impedance: 1K Ohms
• Size: 3.25" x 2" x 1.5"
• RIAA Equalization
• RCA inputs/outputs - 1/8 inch (3.5mm) TRS output.
• AC adapter included

.

• Manual
