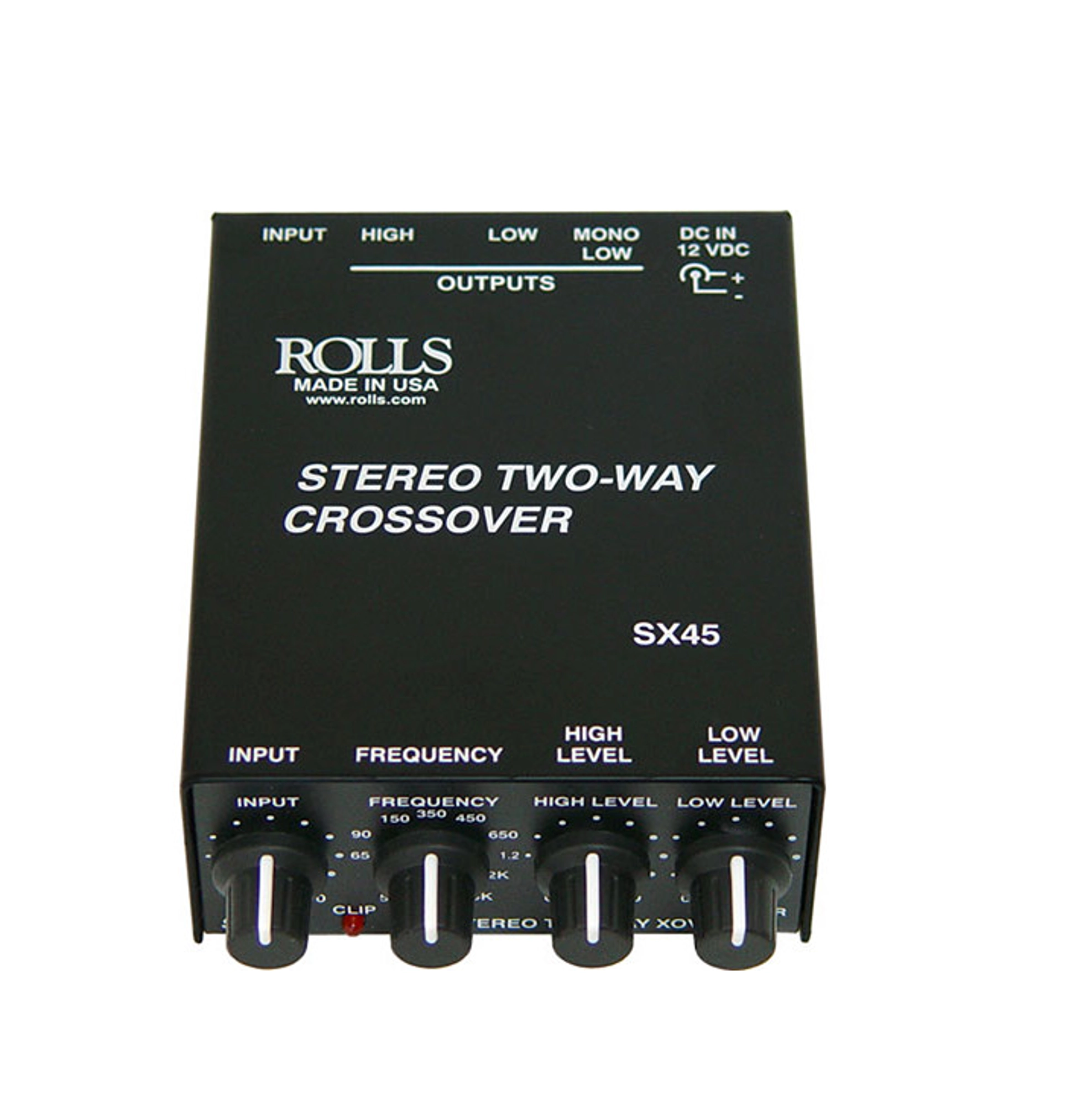

Rolls SX45

Stereo Two-Way Crossover

SX45

Introducing the SX45 - an exceptional frequency dividing device tailored for compact sound reinforcement setups. With its 12 dB/Octave roll-off rate and an impressive frequency dividing range spanning from 50Hz to 2.5kHz, this unit is designed to enhance your audio experience. Moreover, it comes equipped with an external power supply to ensure optimal noise reduction, delivering top-notch performance for your sound reinforcement needs.

• Input Impedance: 10K Ohm
• Output Impedance: 1K Ohm
• Headroom: +10 dBV
• Power Requirements: 12 - 16 VDC, 150 mA;
• Size: 4.25" x 3.625" x 1.5"
• Weight: 1 lb.
• 12 dB/Octave rolloff
• Stereo RCA Input and Outputs
• 50Hz to 2.5 kHz crossover range
• Mono Sub Output

.
