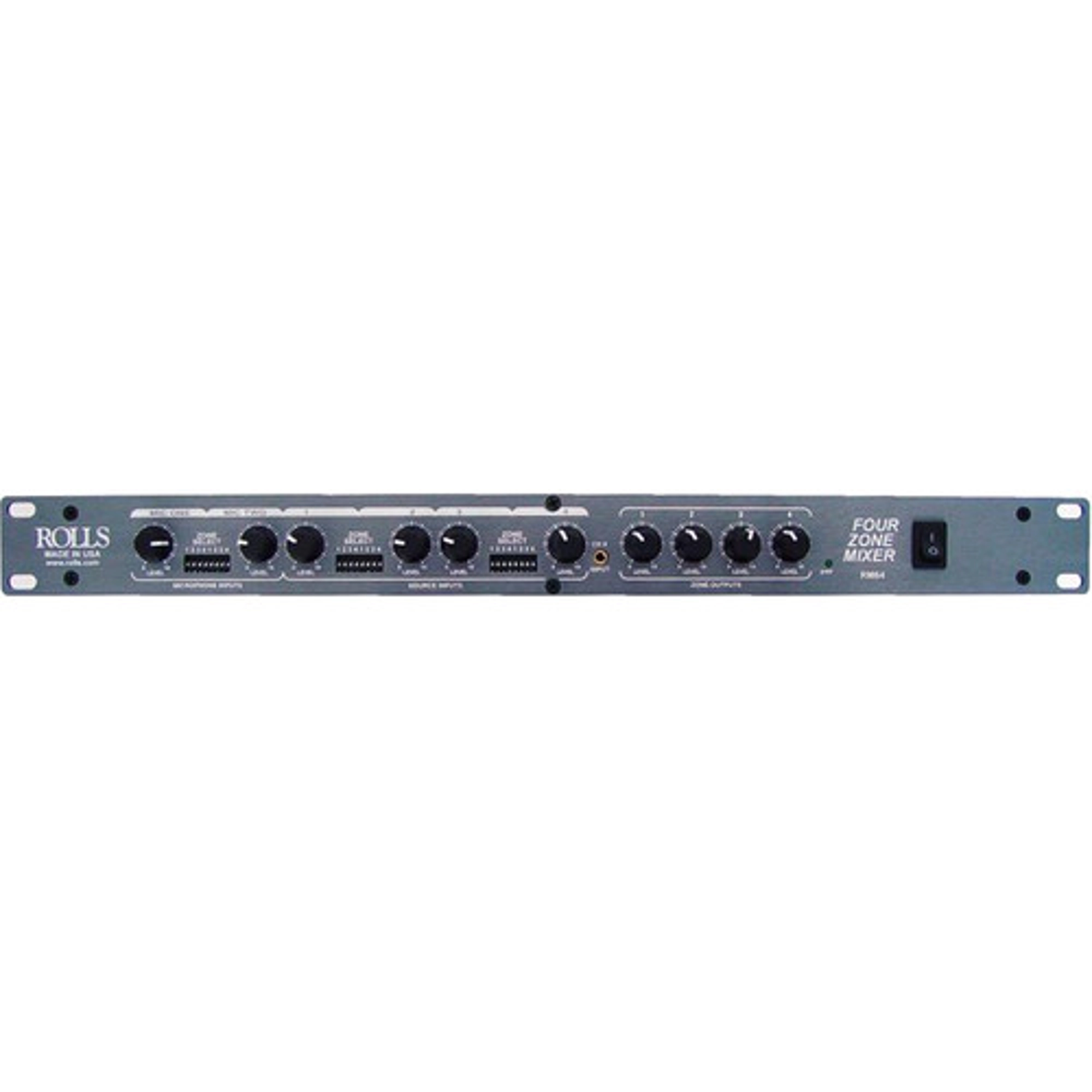

Rolls RM64

SKU: ROL-RM64

MPN: RM64

Description

Four Zone Mixer

Add to Wishlist

Send to a friend!

The Rolls RM64 Four Zone Mixer is ideal for use in restaurants, banquet rooms, offices, and other similar venues that need a mix of microphone and source signals sent to multiple rooms. The RM64 has two mic and four line-level source inputs, which can be sent to any combination of four output zones. All four outputs have balanced XLR connectors and accompanying 1/4" jacks for external volume control. The mic inputs have automatic ducking for easy paging.

Unnamed Group

Input Impedance	Mic: 10 kOhms (Balanced)RCA: 50 kOhms (Unbalanced)
Output Impedance	50 ohms (Balanced XLR)
Maximum Input Level	Mic: +10dBSource: +22dB
Phantom Power	+12VDC
Inputs	2 x XLR Female4 x RCA Stereo Pairs
Outputs	4 x XLR Male
Controls Front Panel	1 x Power Switch4 x Zone Level Control Knobs4 x Source Input Level Control Knobs16 x Source Zone Selector Switches2 x Mic Level Control Knobs8 x Mic Zone Selector Switches
Controls Rear Panel	2 x Mic Trim Controls2 x Phantom Power On/Off Switches4 x Ducking Switches
Maximum Input Gain	60dB Mic30dB Line
Signal to Noise Ratio	Greater than 75dB
Total Harmonic Distortion (THD)	Less than 0.3%
IMD	Less than 0.3%
Common Mode Rejection Ratio	90dB
Frequency Response	20Hz - 20kHz
Power	120VAC, 50-60Hz, 15W
Dimensions	19 x 1.75 x 6.5" (483 x 45 x 165mm)
Weight	7 lbs (3kg)

Packaging Info

Package Weight	5.55 lb
Box Dimensions (LxWxH)	21.4 x 7.96 x 3.75"

Brand:
Rolls

Key Features

Restaurants, Banquet Rooms, Offices
Two XLR Mic Inputs with Trim Controls
Four RCA Source Inputs
Four Balanced XLR Zone Outputs
