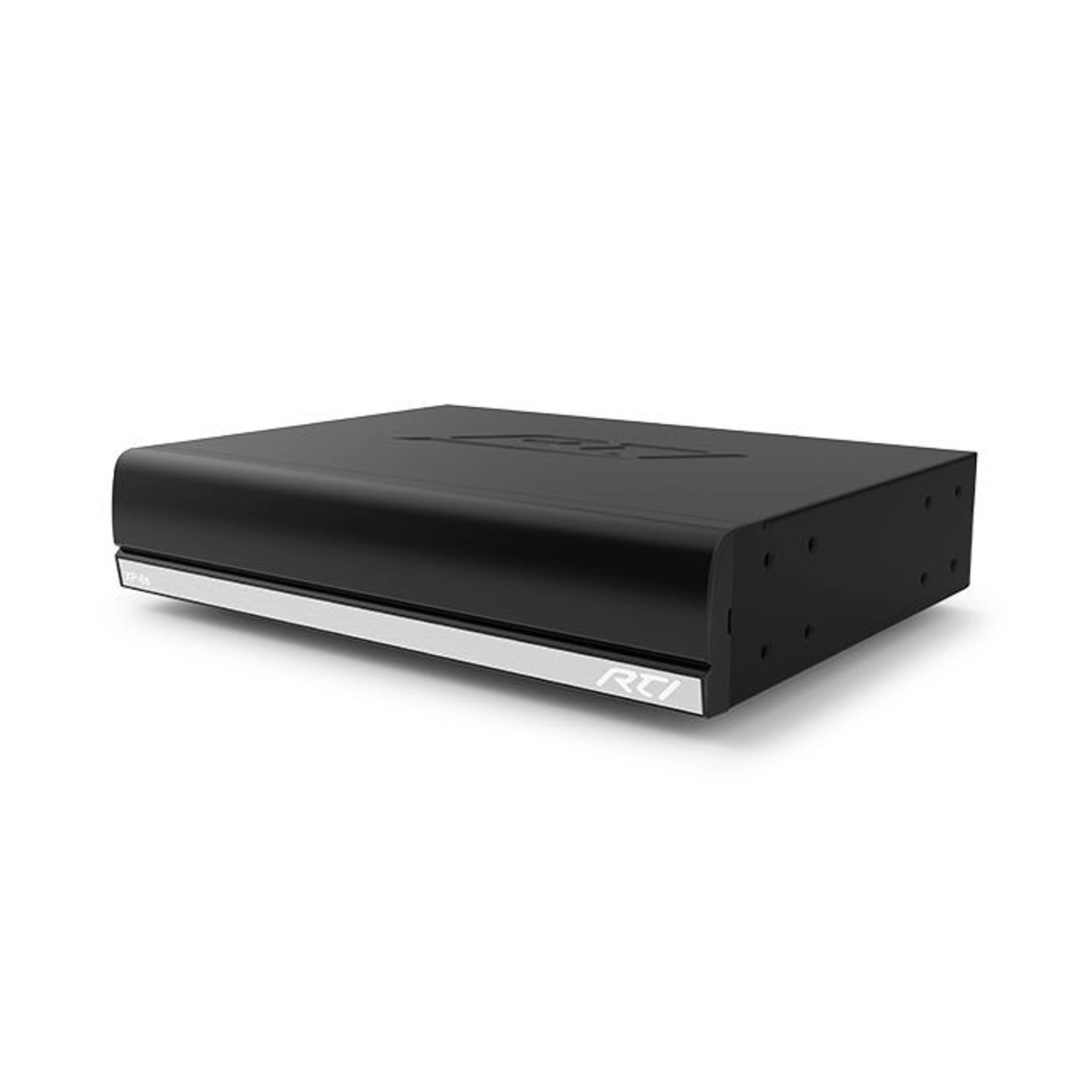

The second generation of the incredibly popular XP-6, the redesigned XP-6s control processor is the perfect centerpiece of any professionally installed control system. With a rack-mountable design, faster internal CPU and bolstered with 512 MB of RAM memory, the powerhouse processor automates and enhances the operation of A/V, security, lighting, HVAC, and more.
Serving as the system communication backbone in a commercial or residential installation, the processor utilizes a massive database of drivers to facilitate integration of third-party devices into one cohesive system. Advanced control options include IP, RS-232, infrared, relays and sensing. Designed to meet the evolving needs of any project, the XP-6s has the support of the entire RTI ecosystem, allowing for easy expansion using multiple processors and a complete line of accessory devices.
* Integration Designer is only available to authorized RTI dealers.
Control App
Power +12VDC, 1A
Multi-Purpose Output Ports Six 3.5mm jacks
Compatible with industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
200mA maximum (high IR output port)
Infrared Frequency Transmission Range 15 KHz - 460 KHz
Infrared Input Compatible with industry-standard repeaters and receivers
Trigger Outputs Three, 12VDC, 100mA max each
Relays Three, 3 amps @ 30VDC
Sense Inputs Three, 3-24VDC
RS-232 Ports Three, Bi-directional RJ45 Connections
Ethernet Port 10/100Base-T, RJ45 Connection
USB Ports One, Programming
RTI COM Port Zigbee® Communication Port, RJ45 Connection
Mounting Wall-mount or free standing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (W x H x D) 215.9mm x 43.7mm x 152.4mm
Weight 0.91Kg
Warranty Three Years (Parts & Labor)
All features and specifications subject to change without notice.
Brand:
RTI
Control App
Powerful 32bit, 1GHz CPU.
512MB of non-volatile Flash and 512MB of internal RAM memory.
Compatible with all RTI wired, wireless (requires RTI RF antennas/Zigbee transceivers), and app-based user interfaces.
Six multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems.
Multi-purpose I/O ports also support optional RTI power sensing and communications modules.
Three programmable 12VDC trigger outputs.
Three assignable voltage sense inputs.
Three programmable relay outputs.
Three RS-232 ports for bi-directional communication.
Built-in astronomical clock for time-based events and sleep timers.
Input for connection of multiple RM-433 RF receiver modules.
Variable IR output on all IR ports.
Non-volatile Flash memory stores your system configuration even when power is not present.
Fast USB 2.0 and Ethernet programming.
Field upgradable firmware.
