Remote Technologies IST-5-B

Product Overview:

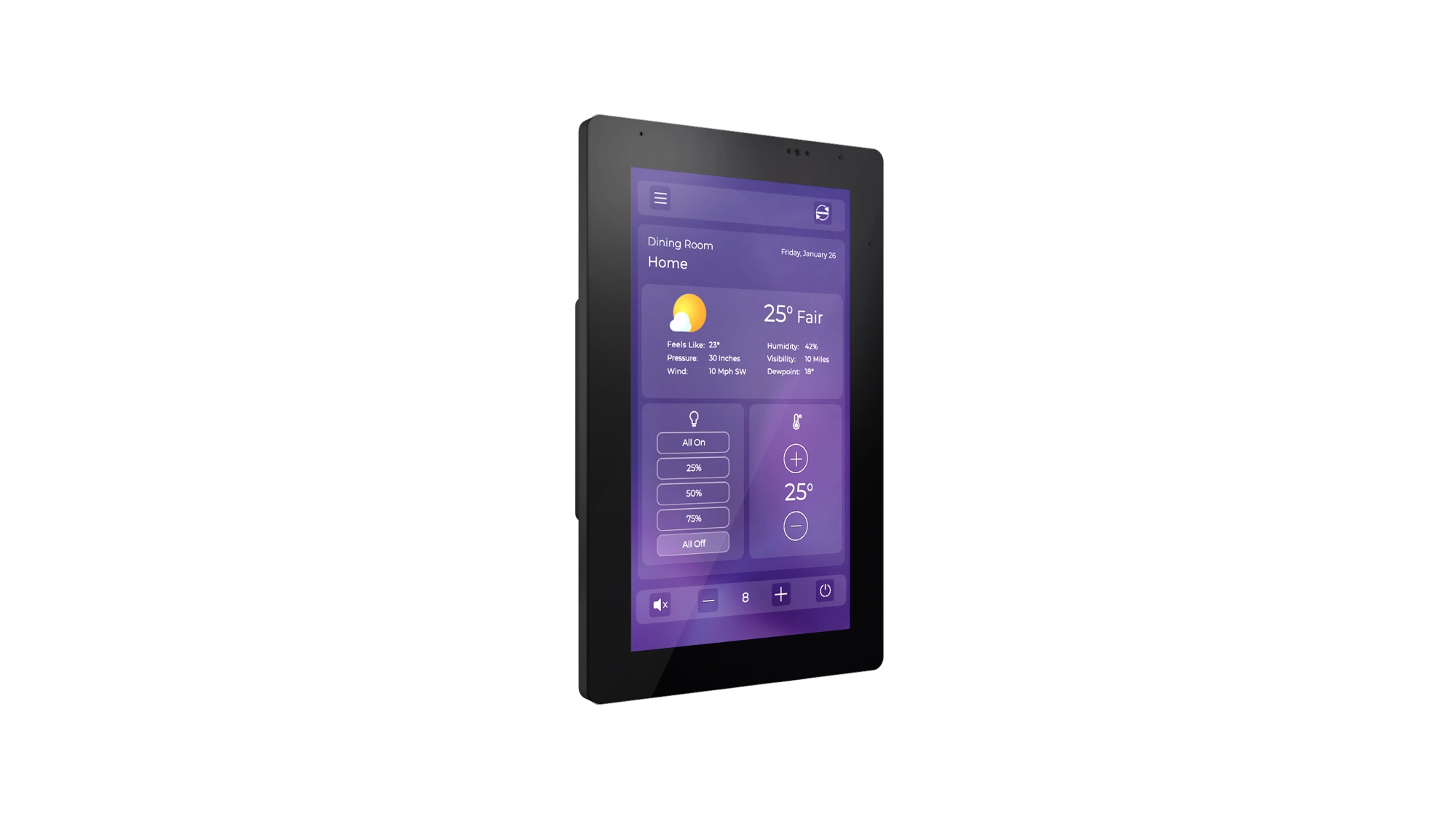

The new IST-5 touchpanel elevates system control in all commercial and residential settings. It starts with a hi-resolution 5 capacitive-touch screen with a 854x480 resolution with true-black display filter for exceptional clarity. With an ultra-thin bezel, near-flush mount (just 0.4" / 12mm off the wall), and elegantly compact form-factor, the IST-5 makes an elegant statement in landscape or portrait mount. Built-in Ethernet with PoE enables seamless two-way system control, video, and remote programming.

The hi-res display is perfect for the 100% customizable RTI user interface, with fast response and easy swiping. The proximity sensor enables a fast hands-free wake while the ambient light sensors automatically adjust display brightness. With elevated processing power and enhanced memory, the IST-5 plays hi-resolution video in H.264 or H.265 format and is ideal for viewing security camera feeds. Dual speakers, far-field microphone array, SIP-readiness, plus full duplex capability make the IST-5 perfect for intercom and as an interface with video doorbells. The 2-mic array features a mute button plus hardware-based echo cancellation.

With its included mounting bracket, the IST-5 mounts easily in a US single gang box and is compatible with standard wall boxes in most countries.

Included in the box:
IST-5, metal wall bracket (1), mounting bracket screws (4)

Key Features:

Hi-resolution 5 capacitive-touch screen (854x480) with ultra-thin bezel.

Near-flush mount (less than 0.4/12mm off wall).

Ethernet and Wi-Fi options for control and communication.

PoE or 12V DC power options.

Exceptional video streaming and two-way intercom at H.264 or H.265 format.

Dual speakers and far-field microphone array (with mute button).

Proximity and ambient light sensors.

Portrait or landscape.

Features:

In-Wall

The ultra-thin bezel, near-flush mount (just 0.4/ 12mm off the wall), and elegantly compact form-factor accommodate any environment with a sleek modern design.

854x480 Screen Resolution

High resolution, 24-bit color display to elevate the user interface to its full potential and display clear, vibrant video.

Ethernet

Check the weather forecast, view video from network security cameras, or perform remote programming updates through a standard 10/100 BaseT network connection.

PoE

Power the touchpanel through a PoE network switch or PoE injector. No extra power supply required.

2.4/5 Ghz Wi-Fi

Wi-Fi for control enables connectivity to suit every application.

Microphone Array

Pick up all communications with great clarity, whether near or far, with a mute button when needed.

Speakers

Clear stereo sound from two speakers to elevate communications.

Ambient Light Sensor

Enables the perfect display brightness automatically set depending on the ambient light.

Proximity Sensor

Wake the touchpanel by just approaching it. convenient when entering a dark room.

Power (Power Supply not included)+12VDC, 2A or PoE (802.3af)
Power Management Adjustable backlight/ proximity sensor
Touchscreen DisplayHigh-brightness color IPS LCD
FWVGA (854x480 pixels) with true black display filter
Integrated high-resolution capacitive-touch screen
Display Size5" (127mm) diagonal. 16:10 aspect ratio
Display BacklightLED Backlit, 400nit
Ethernet PortRJ-45, 10/100 Base-T with Power-over-Ethernet
MicrophoneBuilt-in digital microphone array
Mute button, hardware-based echo cancellation
SpeakersTwo (2), 8 Ohms, 1 Watt
CommunicationsEthernet / Network IP
WiFi 2.4G/5G 802.11a/b/g/n/ac
Total System Memory4GB RAM, 64GB ROM
Device CapabilityTotal number of devices is limited only by memory
Macro CapabilityTotal number of macros is limited only by memory
Operating Temperature0 to +50°C / +32 to +122°F
Operating Humidity5% to 95% Non-condensing
MountingWall-Mount
InstallationUS standard single gang
Outer Bezel Dimension (WxH)5.24 x 3.33 x 0.43
133 mm x 84.5 mm x 10.9mm
Wall Cut-Out Dimension (W x H)2.15 x 3.6
54.7mm x 91.5mm
Depth in Wall (Wall Box)1.34" (34.0mm)
Weight7.05 oz (200g)
WarrantyThree Years (Parts & Labor)
Prop 65 DeclarationThis product contains Butadine which is listed on Californias Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of Californias risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
