Remote Technologies ECB5
SKU: RTI-ECB5
MPN: ECB-5
Description
IR Emitter Connecting Block
Send to a friend!
SKU: RTI-ECB5
MPN: ECB-5
IR Emitter Connecting Block
Send to a friend!

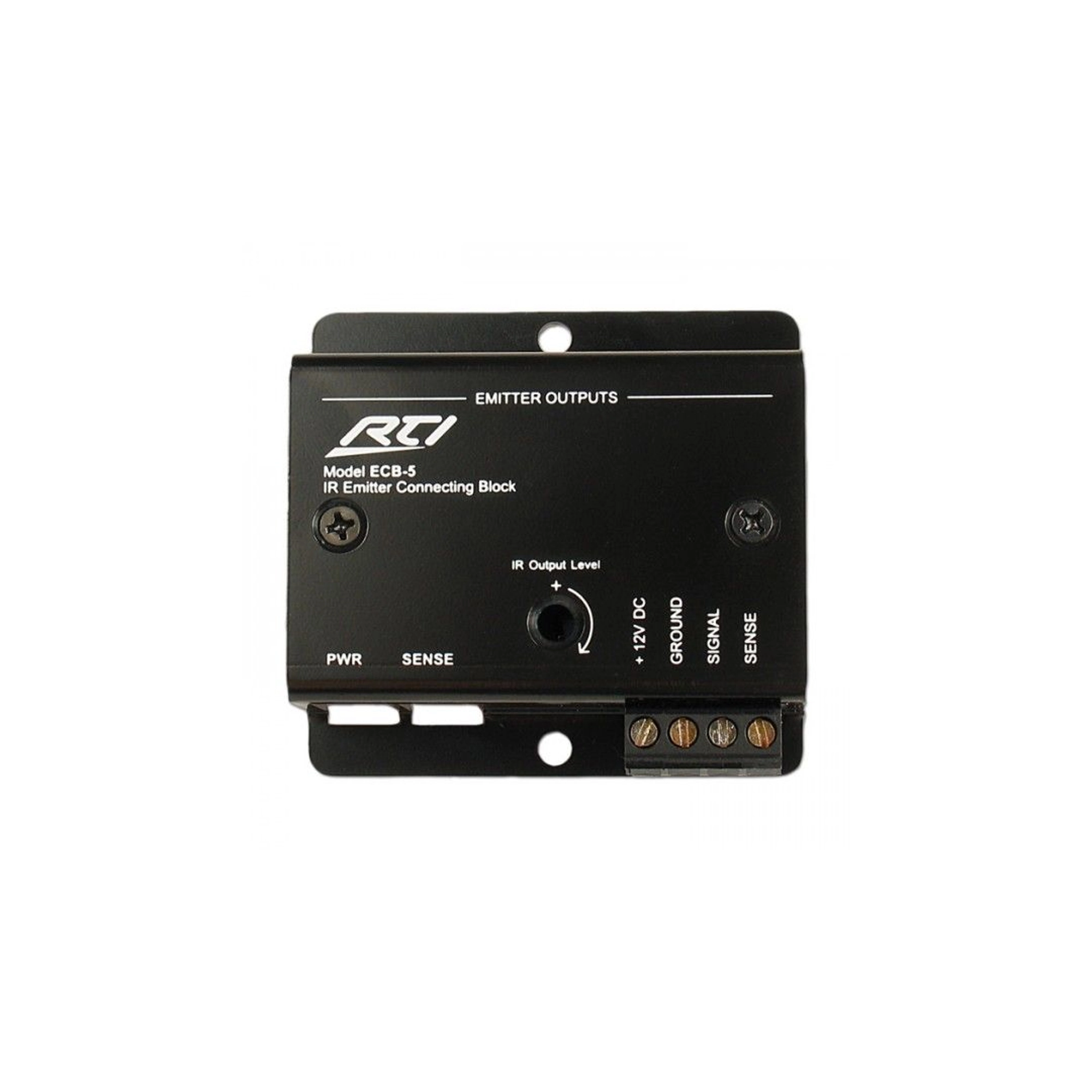

The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.
RTI
| Power | +9VDC to +16VDC, 1.5A |
| Number or Output Ports | Five |
| Output Ports | 3.5 mm jacks |
| Works with industry standard IR emitters | |
| IR Output Drive | 100mA maximum (per port, adjustable) |
| Infrared Input | Compatible with industry standard repeaters/receivers |
| Mounting | Wall-mount or free standing |
| Dimensions (H x W) | 2.6 (66mm) x .9 (23mm) x 2.4 (61mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 4oz (108g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to |
