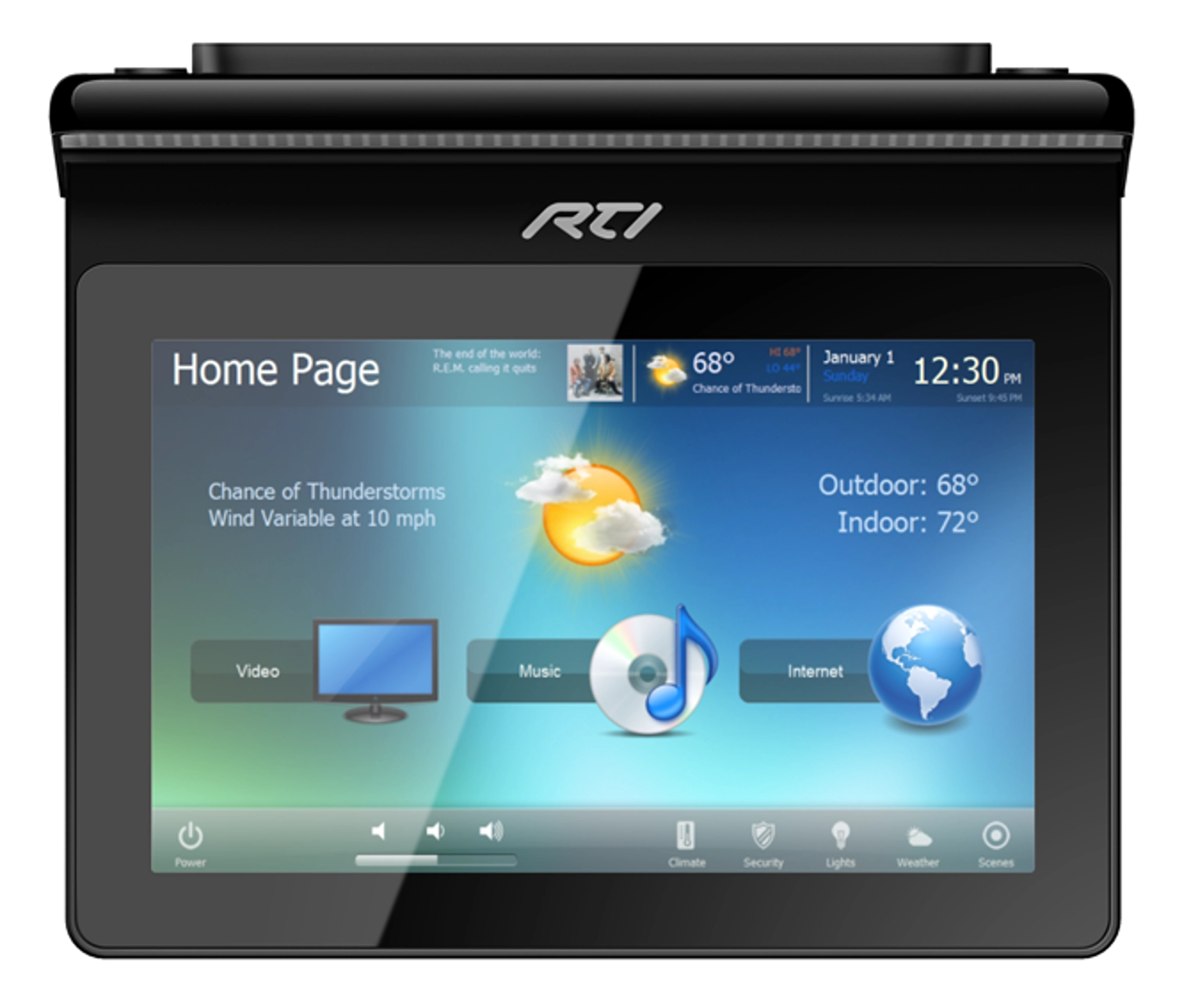

From the kitchen countertop to the conference room, the versatile CX7 is perfect wherever “always on”, intuitive control is required. The 7” LCD touchpanel has adjustable tilt, allowing the display to be angled straight up to nearly flat. The CX7 can even be mounted inverted under a cabinet. Additional features include wired and wireless Ethernet for two-way control, digital video (motion JPEG) and web browsing, while analog audio/video inputs and stereo speakers provide video viewing from sources such as satellite TV or security cameras. The integrated camera, microphone and speakers enable the convenience of video intercom support directly on the CX7.
*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.
Power +9VDC to +16VDC, 1A max or PoE (Using Class 3 PoE
Ethernet router/injector)
Power Management Adjustable backlight brightness/power down time
Touchscreen Display High-brightness color TFT LCD
WVGA (800x480 pixels) with 65K colors
Integrated high-resolution capacitive touchscreen
Display Size 7.0 in (177mm) diagonal
Display Backlight Dual CCFL, 300nit
Infrared Output Port 200mA output
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T with Power-over-Ethernet (Using Class 3 PoE
Ethernet router/injector)
Wireless Ethernet 802.11b/g
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Total System Memory 256M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Video Input 3 BNC Connectors
Composite, S-Video or Component analog video inputs
NTSC/PAL/SECAM
Enclosure High-impact molded ABS plastic
Mounting Tabletop, or screws through mounting bracket (Included)
Dimensions (LxWxH) 7.5” (190mm) x 7.3” (185mm) x 6.25”(159mm)
Weight 2.0 lbs (934g)
Brand:
RTI
800x480 WVGA LCD with integrated multi-touch capacitive touch screen
Composite, S-Video or Component video input at up to 480i, 576i, 480p or 576p
Analog audio input and stereo speakers
Integrated 10/100 Base-T and 802.11 Wireless Ethernet
Built-in camera, microphone and speakers enable video intercom capability
Built-in high output IR port for direct control.
Powered using power supply, CB8 or PoE (Power over Ethernet)
Optional modules/processors provide additional two-way control
USB and Ethernet Programming
Adjustable tilt display (from 10°-90°) or unit can be mounted under a cabinet.
Optional modules/processors provide additional control capabilities including two-way communication via RS-232/IP, sensing, IR and relay control.
