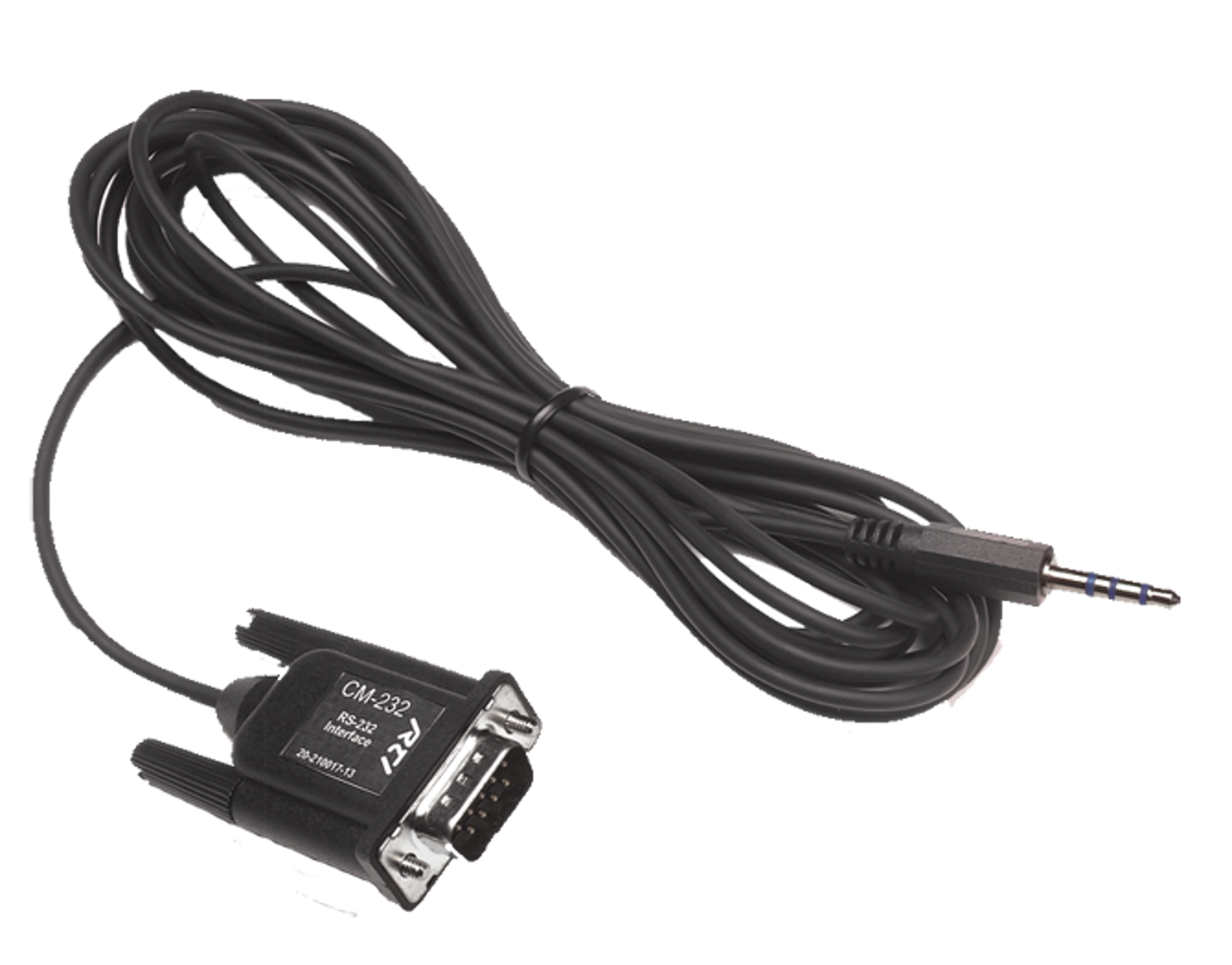

Remote Technologies CM-232

SKU: RTI-CM232

MPN: CM-232

Description

RS-232 Communication Module

Add to Wishlist

Send to a friend!

Product Overview:

The CM-232 communication module provides an RS-232 interface to almost any RS-232-enabled device. It attaches to an RTI control system such as the XP-6s Control Processor on one end, and a device's DB-9 serial port connector on the other end. The CM-232 is capable of one-way transmission (no receive function is supported) of user-defined characters or binary strings. These character strings, as well as the baud rate, parity, and bit structure, are programmed using RTI's Integration Designer software package.

Key Features:

Connects to the output ports of the control processor or expansion module (such as XP3/XP6/XP8s/PCM-4)
Allows the control processor to send commands to almost any RS-232-enabled device
Software selectable baud rate up to 115.2K (depending on the control processor)
Industry-standard DB-9 male connector
No power supply required - Power is supplied by the output ports
User-definable output strings usingIntegration Designer® software

Specifications

Baud Rate	Software Selectable (Depends on attached control system)
Cable Length	12 Feet (3.7 m)
Connector	DB-9 Male
Pins Used	GND, TXD, DTR (tied high)
Dimensions (W x H x D)	1.3" (33mm) x .5" (14mm) x 2" (51mm)
Operating Temperature	+32°F to +122°F (0°C to +50°C)
Operating Humidity	5% to 95% Non-condensing
Warranty	Three Years (Parts & Labor)
